2000 Kawasaki ZR-7 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

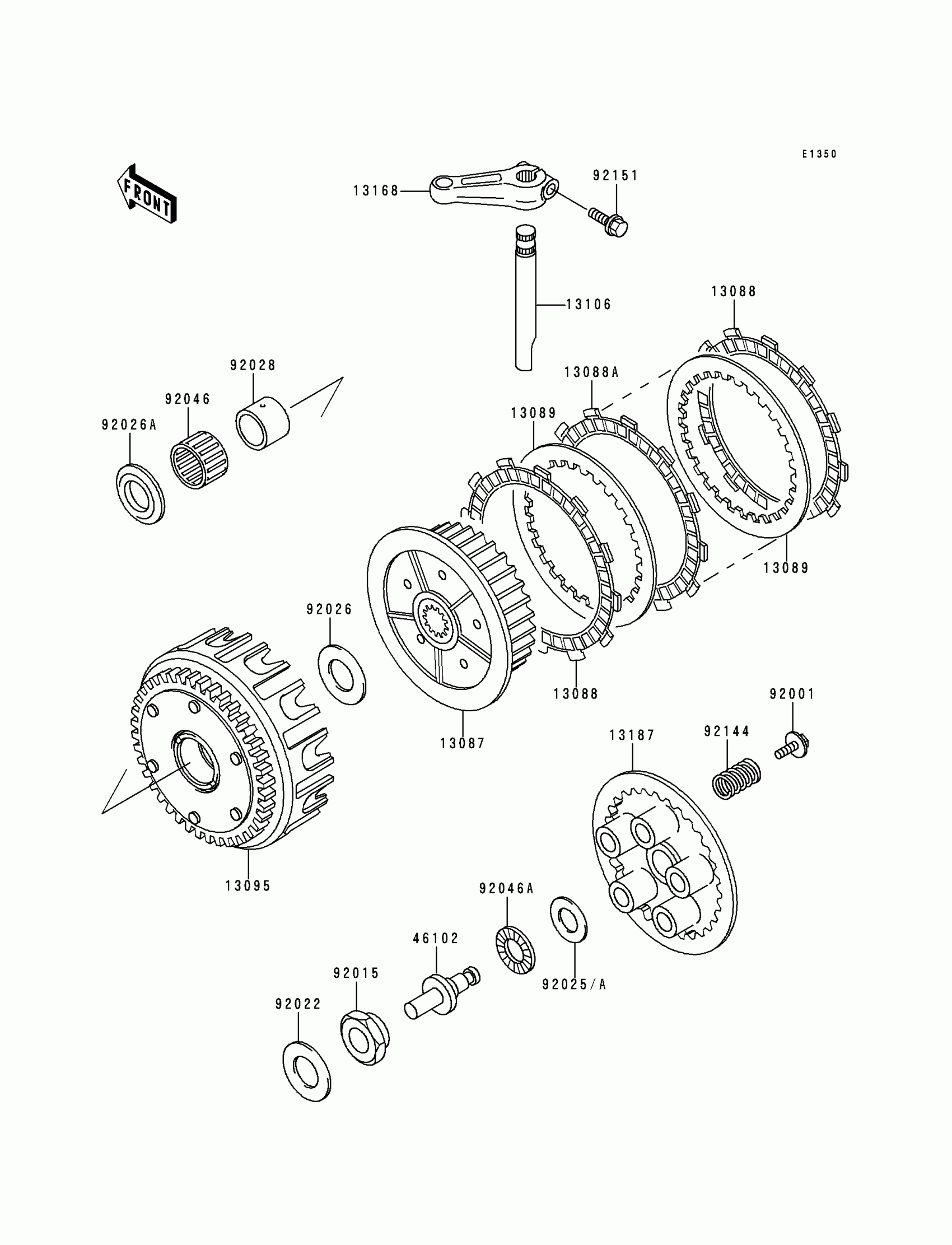

2000 Kawasaki ZR-7 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-043

1

$165.36

In stock

13088

PLATE-FRICTION

13088-1052

1

$19.79

In stock

13088A

PLATE-FRICTION

13088-1107

1

$20.00

In stock

13089

PLATE-CLUTCH

13089-1097

1

$16.07

In stock

13095

HOUSING-COMP-CLUTCH

13095-1316

1
Out of stock

13106

1

$47.47

In stock

13168

1

$38.07

In stock

13187

1

$84.54

In stock

46102

ROD,CLUTCH

46102-1313

1

$44.15

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92025

SHIM,15.3X27.5X0.90

92025-1136

1
Out of stock

92025A

SHIM,15.3X27.5X1.20

92025-1137

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

1

$16.49

In stock

92028

BUSHING,25X32X23.6

92028-178

1

$23.53

In stock

92046

1

$19.92

In stock

92046A

1

$11.45

In stock

92144

SPRING,CLUTCH

92144-1889

1

$8.92

In stock

92151

BOLT,FLANGED-SMALL,6X20

92151-1252

1
Out of stock
