2000 Kawasaki ZR-7 Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

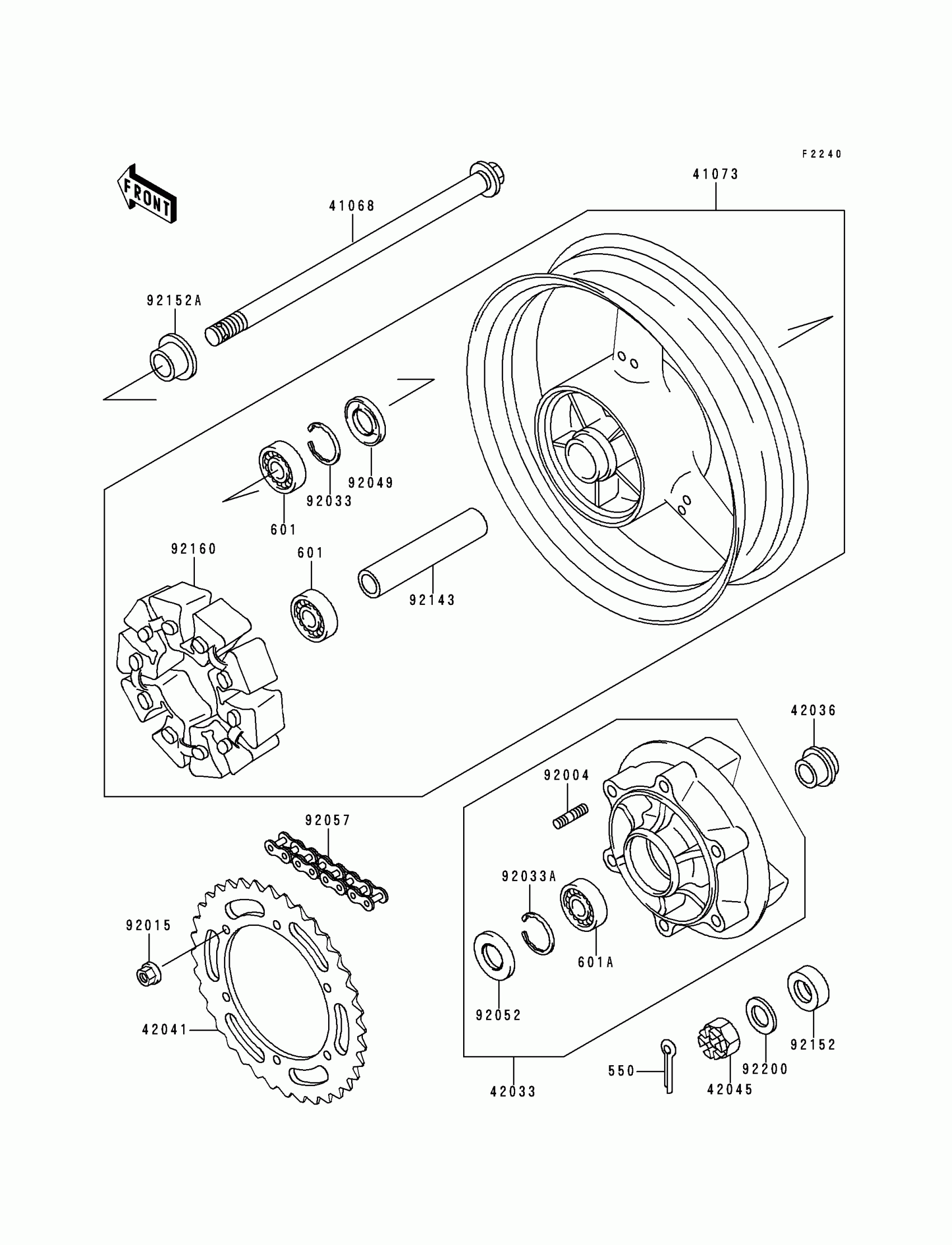

2000 Kawasaki ZR-7 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,6204UUC3

601B6204UU

1
Out of stock

601A

BEARING-BALL,#6205G

601B6205G

1
Out of stock

41068

AXLE,RR

41068-1414

1
Out of stock

41073

WHEEL-ASSY,RR,C.GRAY

41073-1589-DH

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-1171

1
Out of stock

42036

SLEEVE,RR HUB,L=23

42036-1251

1
Out of stock

42041

SPROCKET-HUB,38T

42041-1520

1
Out of stock

42045

NUT,CASTLE,18MM

42045-018

1
Out of stock

92004

STUD,10X19

92004-1151

1
Out of stock

92015

NUT,10MM

92015-1720

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92033A

RING-SNAP,52MM

92033-1043

1
Out of stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

92052

SEAL-OIL,TWC35527

92052-006

1
Out of stock

92057

CHAIN,DRIVE,EK525MV-XX108L

92057-1398

1
Out of stock

92143

COLLAR,RR HUB,L=133

92143-1303

1
Out of stock

92152

COLLAR,RR AXLE,LH,L=13

92152-1161

1
Out of stock

92152A

COLLAR,RR AXLE,RH,L=20

92152-1162

1
Out of stock

92160

DAMPER,SHOCK,RR HUB

92160-1524

1
Out of stock

92200

WASHER,19X32X2.6

92200-1489

1
Out of stock
