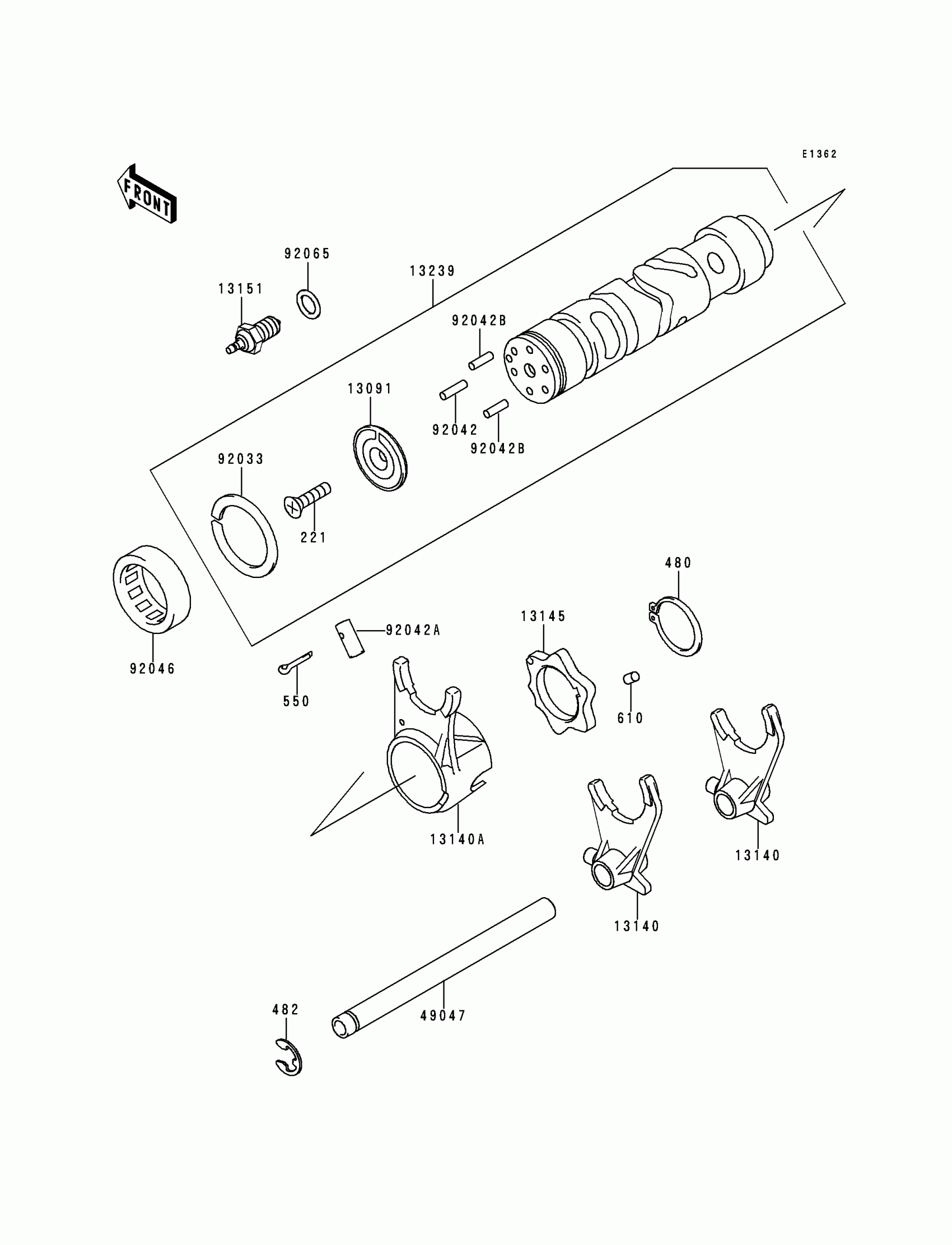

Kawasaki ZR-7 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

221

SCREW-CSK-CROS,6X20

221B0620

$1.71

480

CIRCLIP-TYPE-C,30MM

480J3000

$4.67

482

CIRCLIP-TYPE-E,10MM

482J0100

$0.65

550

PIN-COTTER,3.0X20

550D3020

$1.32

610

ROLLER,4X6

610A0406

$3.29

13091

HOLDER,CHANGE DRUM PIN

13091-1104

$24.63

13140

FORK-SHIFT,LOW,2ND&3RD

13140-1008

$120.23

13140A

FORK-SHIFT,4TH&TOP

13140-1009

$120.23

13145

CAM-CHANGE DRUM

13145-1058

$22.71

13151

SWITCH-COMP,NEUTRAL

13151-1080

$7.87

13239

DRUM-ASSY-CHANGE

13239-1074

$224.64

49047

ROD-SHIFT

49047-1069

$28.92

92033

RING-SNAP,37MM

92033-035

$7.44

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92042A

PIN,DOWEL,8X18

92042-021

$8.75

92042B

PIN,DOWEL,4X13.8

92042-030

$2.99

92046

BEARING-NEEDLE,37BTM4312

92046-051

$23.59

92065

GASKET,10.5X16X1

92065-058

$3.03
