2000 Kawasaki ZR-7 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

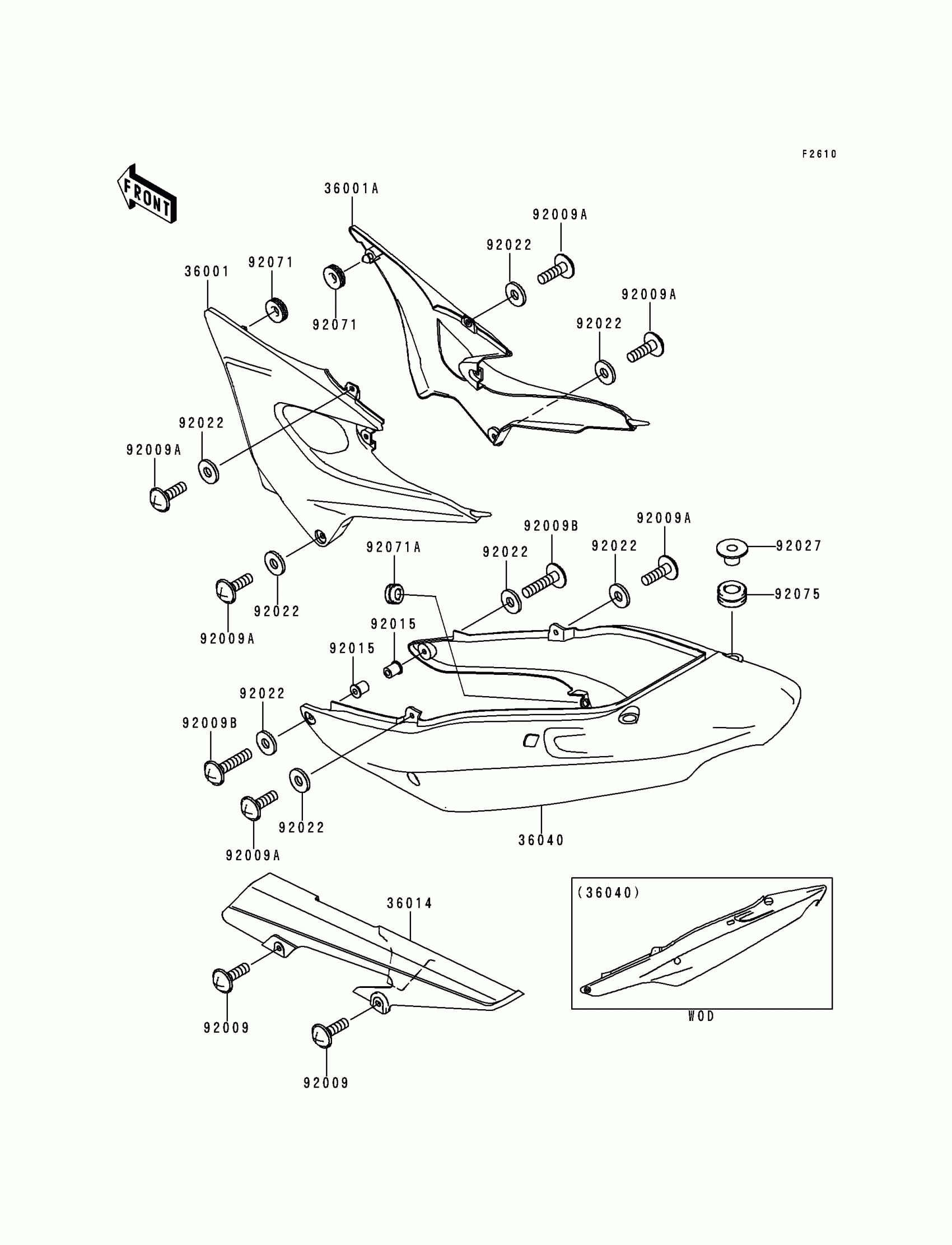

2000 Kawasaki ZR-7 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,M.F.C.GRAY

36001-1629-E4

1
Out of stock

36001A

COVER-SIDE,RH,M.F.C.GRAY

36001-1630-E4

1
Out of stock

36014

CASE-CHAIN

36014-1196

1
Out of stock

36040

COVER-TAIL,C.L.BLUE

36040-1052-E1

1
Out of stock

92009

SCREW,6X10

92009-1402

1
Out of stock

92009A

SCREW,6X14

92009-1662

1
Out of stock

92009B

SCREW

92009-1664

1
Out of stock

92015

NUT

92015-1700

1
Out of stock

92022

WASHER,6.5X16X1

92022-1143

1
Out of stock

92027

COLLAR

92027-4015

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92071A

GROMMET

92071-1152

1
Out of stock

92075

DAMPER

92075-1898

1
Out of stock
