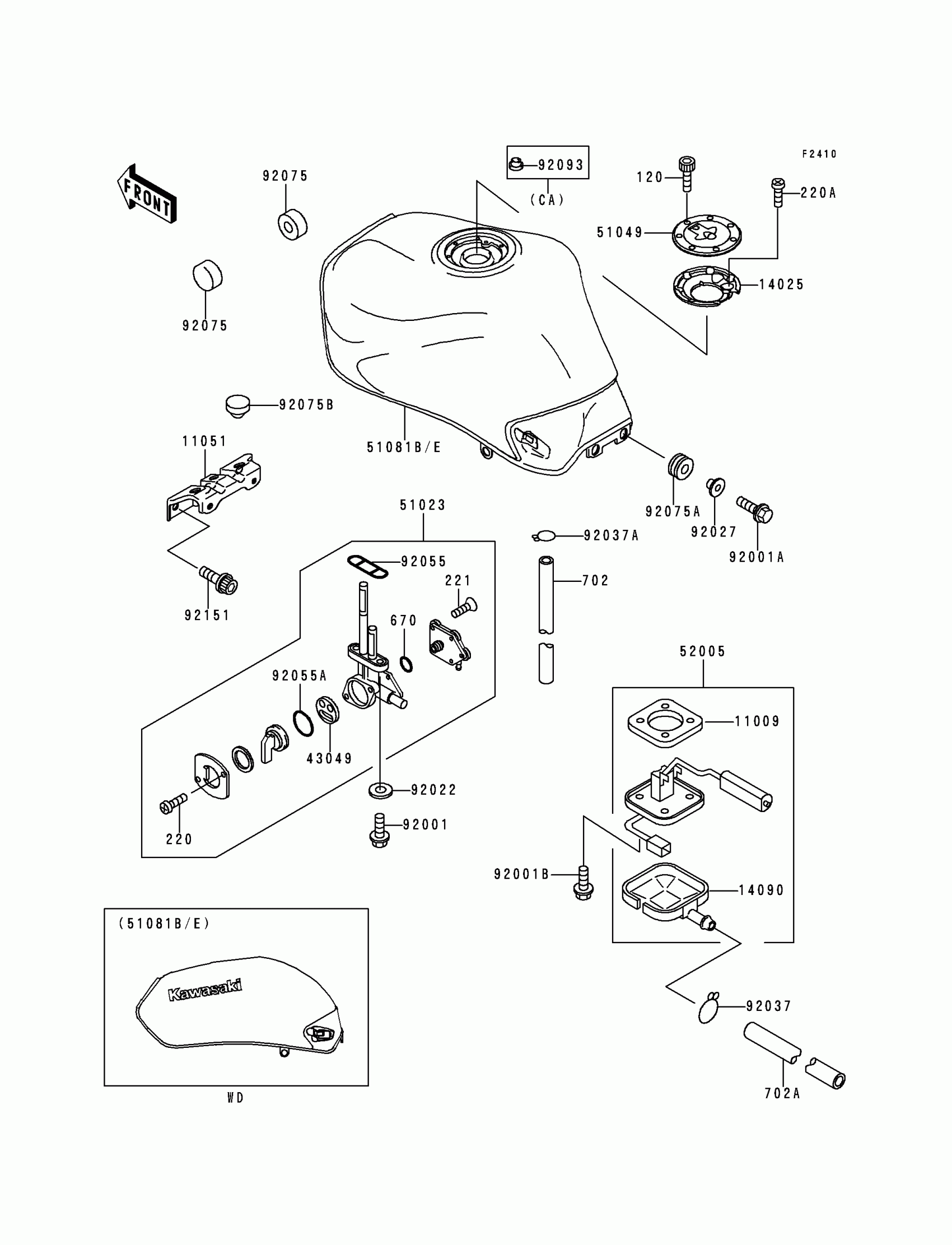

Kawasaki ZR-7 Fuel Tank Diagram

#

Description
Price

120

BOLT-SOCKET,5X12

120S0512

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW-PAN-CROSS

220C0508

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.14

702

TUBE-RUBBER,7X10X550

702A07550

$10.11

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

11051

BRACKET,FUEL TANK

11051-1477

$37.07

14025

COVER,TANK CAP

14025-1913

$17.42

14090

COVER,FUEL GAUGE

14090-1624

$16.00

43049

PACKING,TAP VALVE

43049-1066

$5.54

51023

TAP-ASSY,FUEL

51023-1258

$134.97

51049

CAP-TANK,FUEL

51049-1091

$117.85

52005

GAUGE,FUEL

52005-1130

$124.53

92001

BOLT,6X20

92001-1091

$2.99

92001A

BOLT,6X25

92001-1524

$1.54

92001B

BOLT,FUEL GAUGE

92001-1705

Unavailable

92022

WASHER-PLAIN

92022-183

$2.99

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP

92037-1712

$3.81

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92055A

RING-O,TAP LEVER

92055-1419

$3.81

92075

DAMPER,FUEL TANK

92075-101

$4.67

92075A

DAMPER,10X24X12

92075-1690

$3.81

92075B

DAMPER

92075-1737

$6.55

92151

BOLT,SOCKET,8X12

92151-1592

$2.25

702A

TUBE-RUBBER,7X10X800

702A07800

$10.11

51081B

TANK-COMP-FUEL,C.L.BLUE

51081-5141-E1

Unavailable

51081E

TANK-COMP-FUEL,C.L.BLUE

51081-5181-E1

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93
