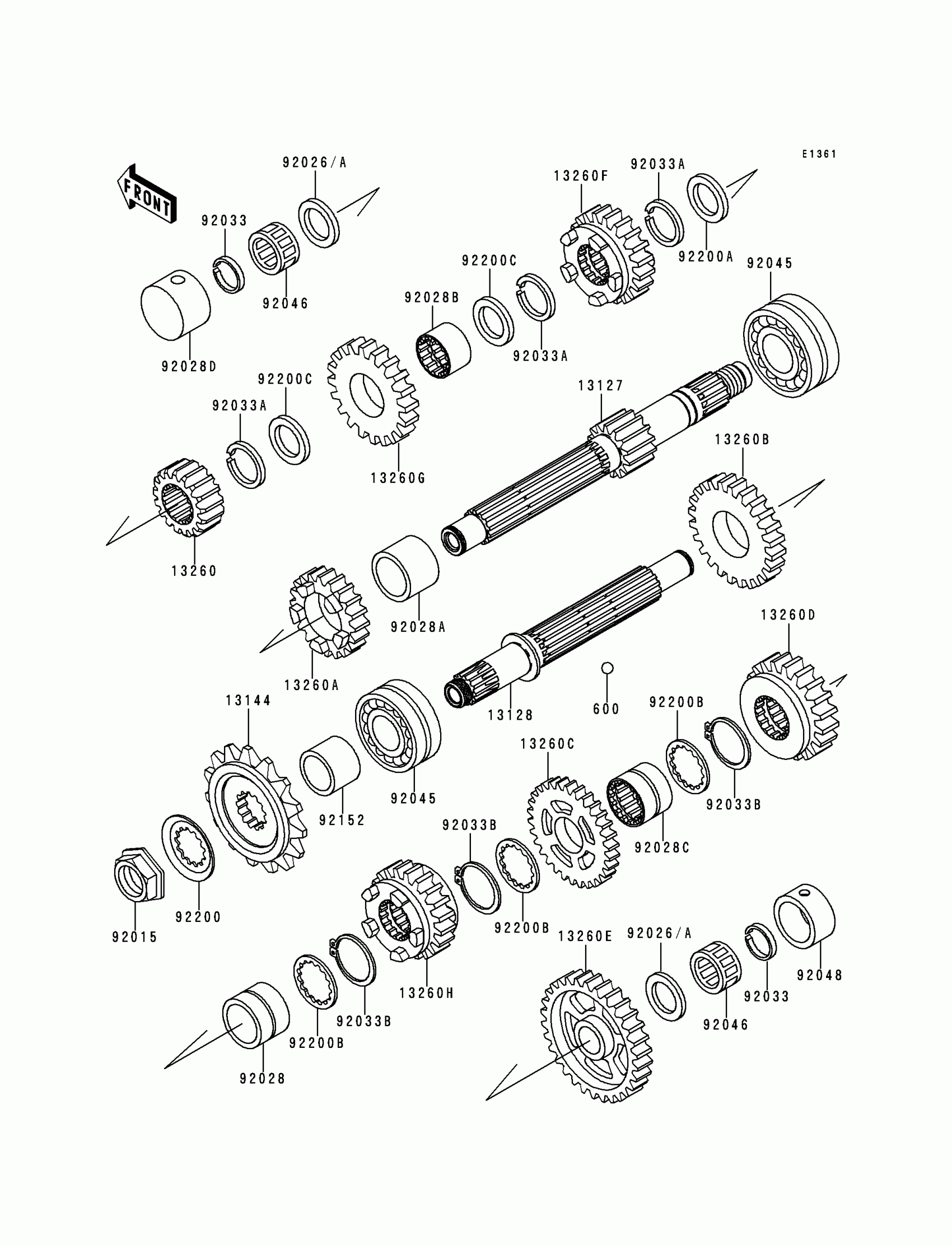

Kawasaki ZR-7 Transmission Diagram

#

Description
Price

600

BALL-STEEL,5/32

600A0500

$0.68

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1272

$291.25

13128

SHAFT-TRANSMISSION OUTPUT

13128-1236

Unavailable

13144

SPROCKET-OUTPUT,16T

13144-1256

$60.51

13260

GEAR,INPUT 2ND,19T

13260-1793

Unavailable

13260A

GEAR,INPUT 4TH,25T

13260-1795

$191.07

13260B

GEAR,OUTPUT 2ND,31T

13260-1796

$153.30

13260C

GEAR,OUTPUT 3RD,28T

13260-1797

$147.51

13260D

GEAR,OUTPUT 4TH,26T

13260-1798

$153.30

13260E

GEAR,OUTPUT LOW,35T

13260-1845

$153.30

13260F

GEAR,INPUT 3RD,22T

13260-1847

$226.88

13260G

GEAR,INPUT TOP,24T

13260-1848

$153.30

13260H

GEAR,OUTPUT TOP 21T

13260-1865

$153.30

92015

NUT,20MM

92015-1963

$11.31

92026

SPACER,20.5X33X1.0

92026-1528

$4.42

92026A

SPACER,20.5X33X0.5

92026-1559

Unavailable

92028

BUSHING,OUTPUT,2ND

92028-1739

$24.03

92028A

BUSHING,INPUT 4TH GEAR

92028-1914

$17.80

92028B

BUSHING,INPUT TOP GEAR

92028-1915

$24.25

92028C

BUSHING,OUTPUT 3RD GEAR

92028-1916

$33.52

92028D

BUSHING,INPUT SHAFT

92028-1952

$49.66

92033

RING-SNAP,20MM

92033-015

$3.25

92033A

RING-SNAP,24MM

92033-026

$6.70

92033B

RING-SNAP,T=1.5

92033-1249

$3.78

92045

BEARING-BALL,83993SH2-CS

92045-035

$74.98

92046

BEARING-NEEDLE

92046-1274

$24.76

92048

RACE

92048-1105

$24.20

92152

COLLAR,25X32X40

92152-1156

$32.95

92200

WASHER

92200-1065

$4.97

92200A

WASHER,25.2X31.0X1.5

92200-1239

$7.71

92200B

WASHER,28.5X34.0X1.5

92200-1240

$7.83

92200C

WASHER,25.2X31.8X1.0

92200-1298

$4.80
