1987 Kawasaki ZL600 Eliminator Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

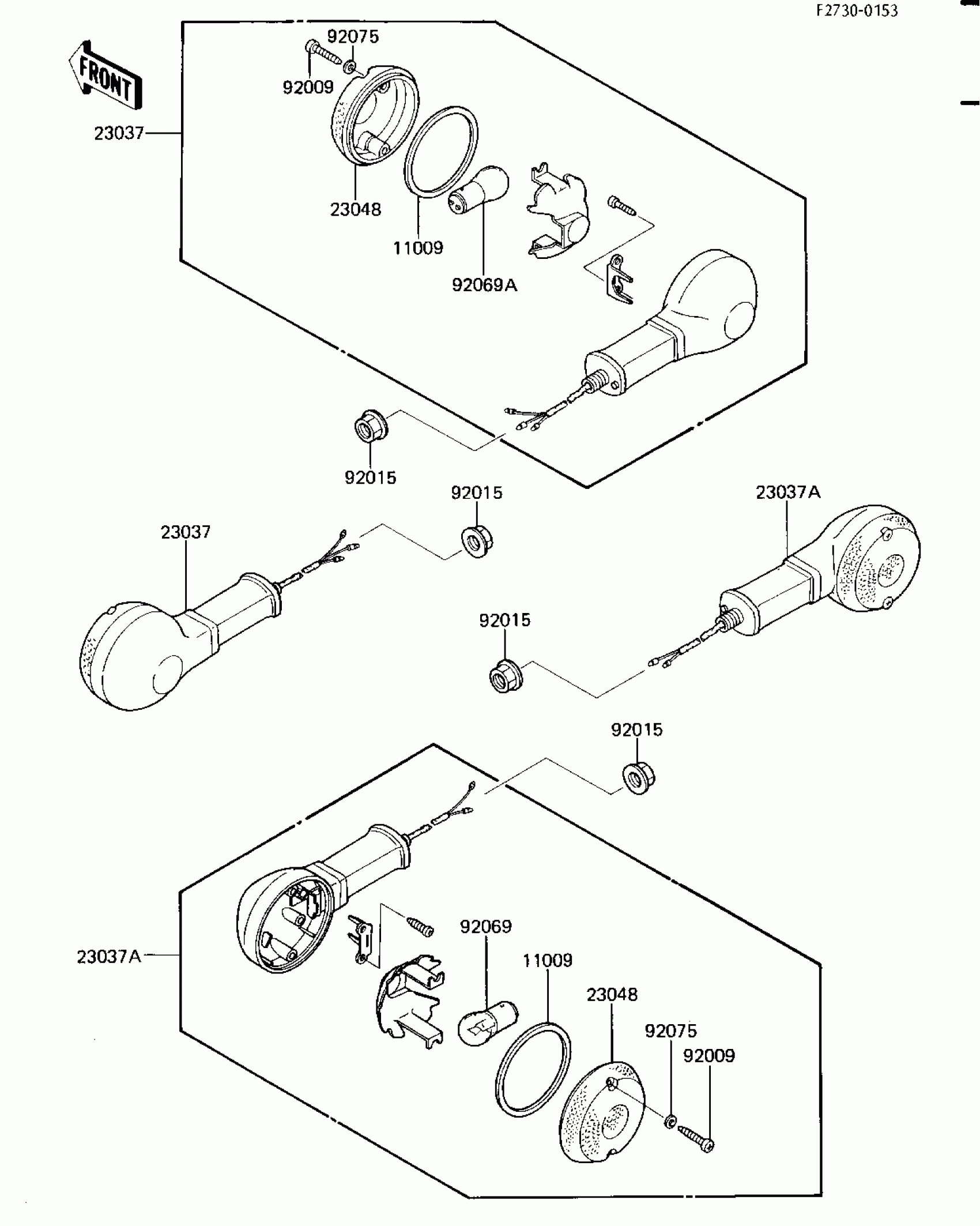

1987 Kawasaki ZL600 Eliminator Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,SIGNAL LAMP

11009-1413

1
Out of stock

23037

LAMP-ASSY-SIGNAL,FR

23037-1218

1
Out of stock

23037A

LAMP-ASSY-SIGNAL

23037-1226

1
Out of stock

23048

LENS-SIGNAL LAMP,FR

23048-1066

1
Out of stock

92009

SCREW,TAPPING,4X25

92009-1069

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92069

BULB,12V 32CP(23W)

92069-055

1
Out of stock

92069A

BULB,12V 32/3CP(23/8W)

92069-060

1
Out of stock
