1987 Kawasaki ZL600 Eliminator Ignition Diagram

← All diagrams

Find the part on the Ignition diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

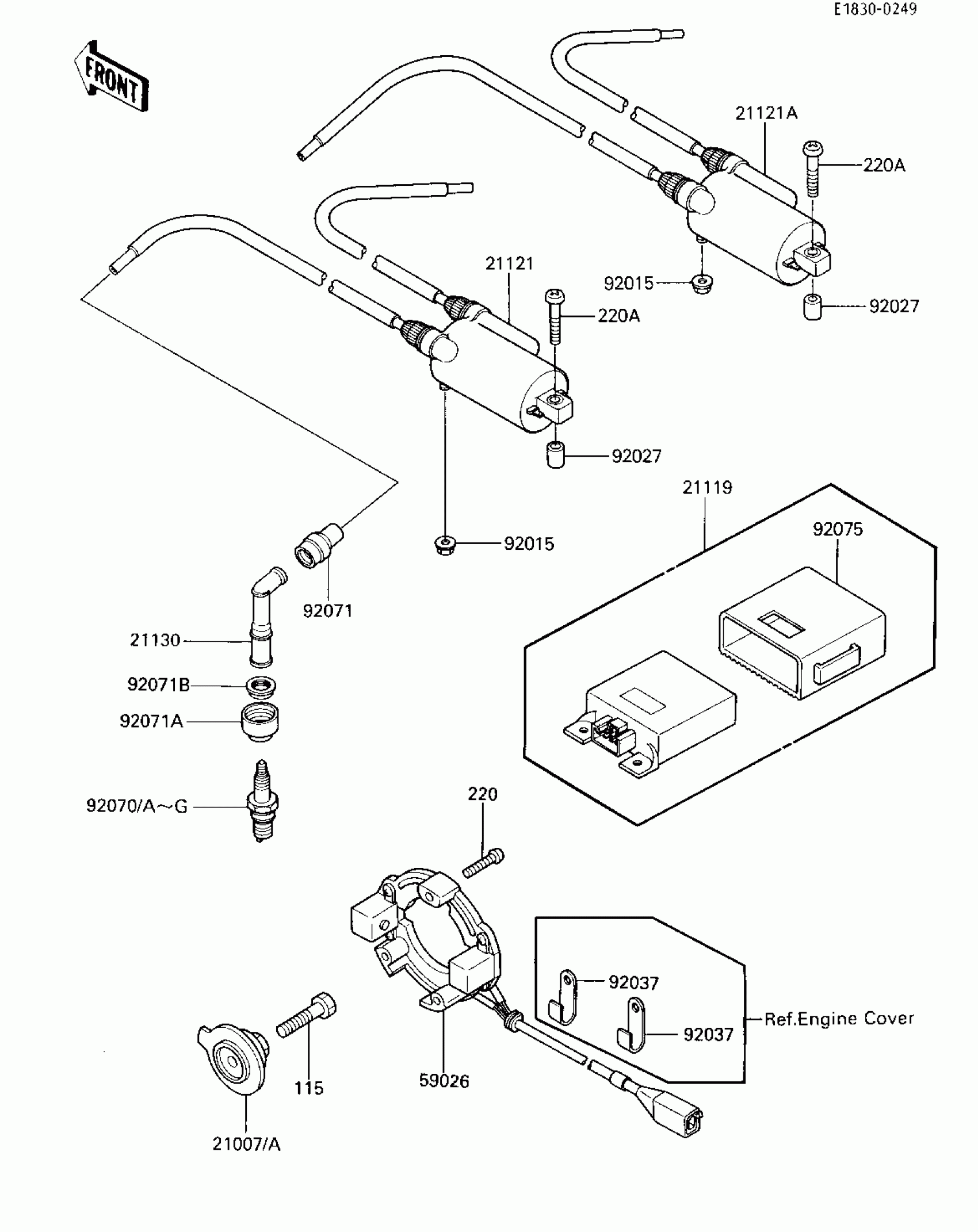

1987 Kawasaki ZL600 Eliminator Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,PULSING COIL

21007-1130

1
Out of stock

21007A

ROTOR,PULSING COIL

21007-1135

1
Out of stock

21119

IGNITER

21119-1167

1

$604.69

In stock

21121

COIL-IGNITION,#1

21121-1144

1

$184.84

In stock

21121A

COIL-IGNITION,#2

21121-1145

1

$184.84

In stock

21130

CAP-SPARK PLUG

21130-1057

1

$42.67

In stock

59026

COIL-PULSING

59026-1078

1

$192.63

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92027

COLLAR,6.3X10X14

92027-1453

1

$4.42

In stock

92037

1

$3.75

In stock

92070A

SPARK PLUG D8EA

D8EA

1
Out of stock

92070D

1

$2.74

In stock

92071

1

$4.88

In stock

92071A

GROMMET,PLUG CAP

92071-1124

1

$9.14

In stock

92071B

GROMMET

92071-1144

1

$9.90

In stock

92075

DAMPER,IGNITER

92075-1504

1

$39.52

In stock

115

BOLT-SMALL-UPSET

115G0835

1
Out of stock

220

1

$3.24

In stock

220A

1

$1.44

In stock
