1987 Kawasaki ZL600 Eliminator Battery Case/tool Case Diagram

← All diagrams

Find the part on the Battery Case/tool Case diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

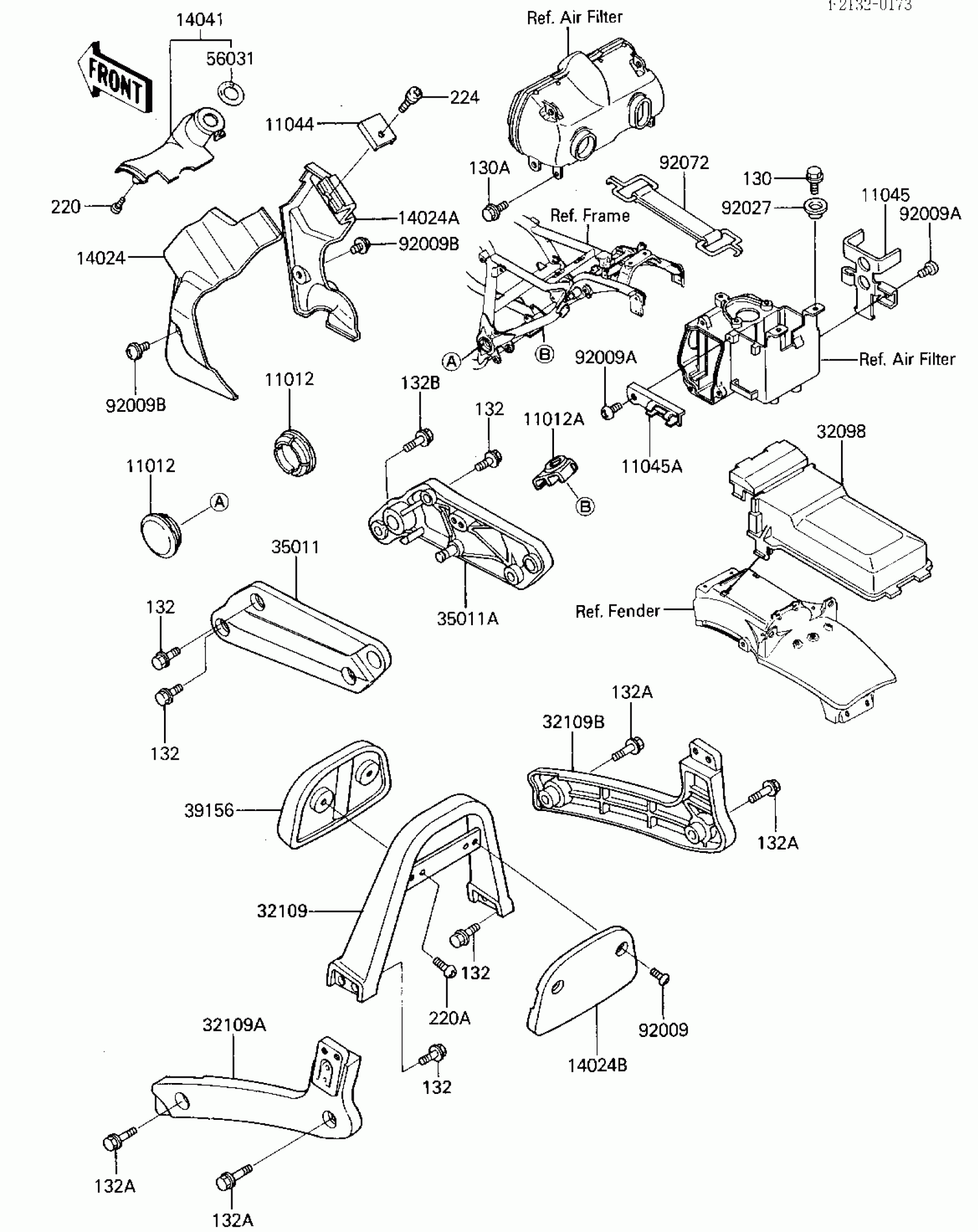

1987 Kawasaki ZL600 Eliminator Battery Case/tool Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1688

1

$14.47

In stock

11012A

CAP

11012-1554

1
Out of stock

11044

BRACKET,GUSSET COVER

11044-1293

1
Out of stock

11045

BRACKET,ELECTRIC BASE

11044-1810

1
Out of stock

11045A

BRACKET,JUNCTION BOX

11045-1210

1
Out of stock

14024

COVER,HEAD GUSSET,LH

14024-1242

1
Out of stock

14024A

COVER,HEAD GUSSET,RH

14024-1243

1
Out of stock

14024B

COVER,FRAME GRIP

14024-1249

1
Out of stock

14041

1

$44.39

In stock

32098

CASE-TOOL

32098-1072

1

$21.73

In stock

32109

GRIP-FRAME,UPP

32109-1141

1

$212.12

In stock

32109A

GRIP-FRAME,LWR,LH

32109-1150

1

$195.81

In stock

32109B

GRIP-FRAME,LWR,RH

32109-1151

1

$195.81

In stock

35011

STAY,MUFFLER,LH

35011-1296

1

$299.25

In stock

35011A

STAY,MUFFLER,RH

35011-1297

1

$299.25

In stock

39156

PAD,GRABRAIL

39156-1064

1
Out of stock

56031

LABEL-MANUAL,IGNITION

56031-1419

1
Out of stock

92009

SCREW,5X12,BLACK

92009-1182

1
Out of stock

92009A

SCREW,TAPPING,6MM

92009-1261

1
Out of stock

92009B

SCREW,6X10

92009-1402

1
Out of stock

92027

COLLAR

92027-122

1

$6.83

In stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130C0612

1
Out of stock

132

1

$4.16

In stock

132A

1

$5.07

In stock

132B

1

$4.37

In stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

220A

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

224

SCREW-PAN-WP-CROS

224C0516

1
Out of stock
