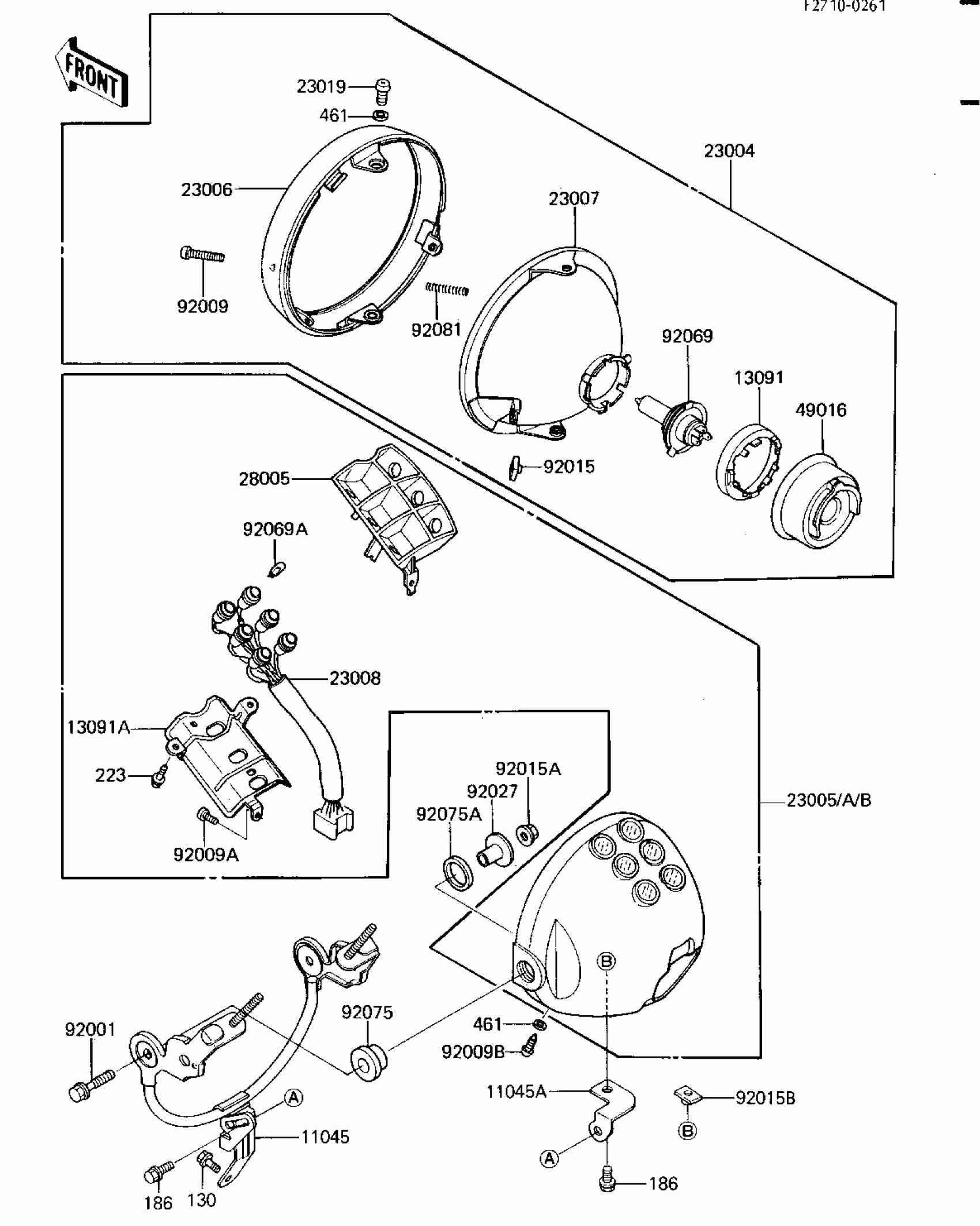

Find the part on the Headlight diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki ZL600 Eliminator Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,HEAD LAMP STA

11044-1804

1
Out of stock

11045A

BRACKET,HEAD LAMP,LWR

11044-1915

1
Out of stock

13091

HOLDER,HEAD LAMP SOCKET

13091-1386

1
Out of stock

13091A

HOLDER,HEAD LAMP

13091-1387

1
Out of stock

23004

LAMP-HEAD

23004-1188

1
Out of stock

23005

BODY-COMP-HEAD LAMP,C

23005-1061-H3

1

$431.28

In stock

23005A

BODY-COMP-HEAD LAMP,E

23005-1061-H8

1

$431.28

In stock

23006

RIM-LAMP

23006-1057

1

$59.86

In stock

23007

LENS-COMP,HEAD LAMP

23007-1136

1
Out of stock

23008

SOCKET-ASSY

23008-1281

1

$134.54

In stock

23019

SCREW,LENS FITTING

23019-031

1
Out of stock

28005

BODY-LAMP,INDICATOR

28005-1053

1

$24.34

In stock

49016

COVER-SEAL,HEAD LAMP SOCKET

49016-1110

1
Out of stock

92001

BOLT,FLANGED,8X35

92001-1910

1

$5.71

In stock

92009

SCREW,FOCUS ADJUST

92009-1394

1
Out of stock

92009A

SCREW,TAPPING,4X12

92009-1395

1
Out of stock

92009B

SCREW,5MM

92011-024

1
Out of stock

92015

NUT,ADJUSTING

23020-012

1

$3.53

In stock

92015A

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015B

NUT,6MM,HEAD LAMP

92015-1231

1
Out of stock

92027

COLLAR,L=20

92027-1131

1

$8.71

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92069A

BULB,12V 3W,T7

92069-1020

1
Out of stock

92075

1

$5.42

In stock

92075A

1

$4.42

In stock

92081

SPRING,FOCUS ADJUST

92081-1892

1
Out of stock

130

1

$4.25

In stock

186

BOLT-UPSET-WP,6X14

186C0614

1
Out of stock

223

SCREW-PAN-WS-CROS,4X10

223D0410

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
