1987 Kawasaki ZL600 Eliminator Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

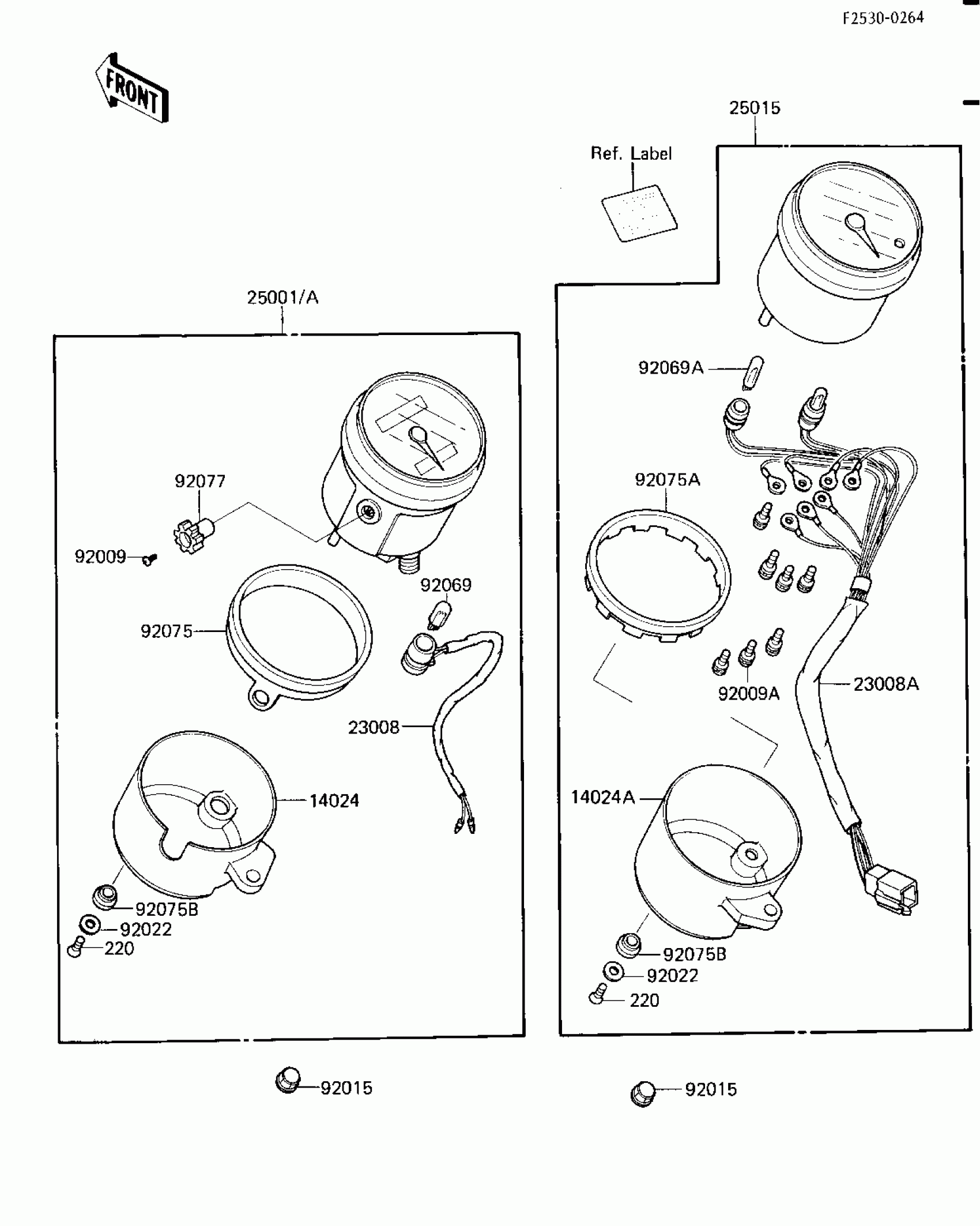

1987 Kawasaki ZL600 Eliminator Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,SPEEDOMETER

14024-1096

1
Out of stock

14024A

COVER,TACHOMETER

14024-1097

1
Out of stock

23008

1

$15.81

In stock

23008A

1

$52.55

In stock

25001

METER-ASSY,MPH

25001-1661

1

$668.58

In stock

25015

1

$592.31

In stock

92009

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009A

SCREW,3X12

92009-1406

1
Out of stock

92015

NUT,CAP,6MM

92015-1385

1

$3.43

In stock

92022

WASHER,4.5X10X0.8

92022-1822

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V 3W,T7

92069-1020

1
Out of stock

92075

DAMPER,SHOCK,METER

92075-1751

1

$12.38

In stock

92075A

DAMPER,SHOCK,METER

92075-1752

1
Out of stock

92075B

1

$4.72

In stock

92077

KNOB,METER

92077-1059

1

$7.36

In stock

220

SCREW-PAN-CROS,4X8

220E0408

1
Out of stock
