1987 Kawasaki ZL600 Eliminator Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

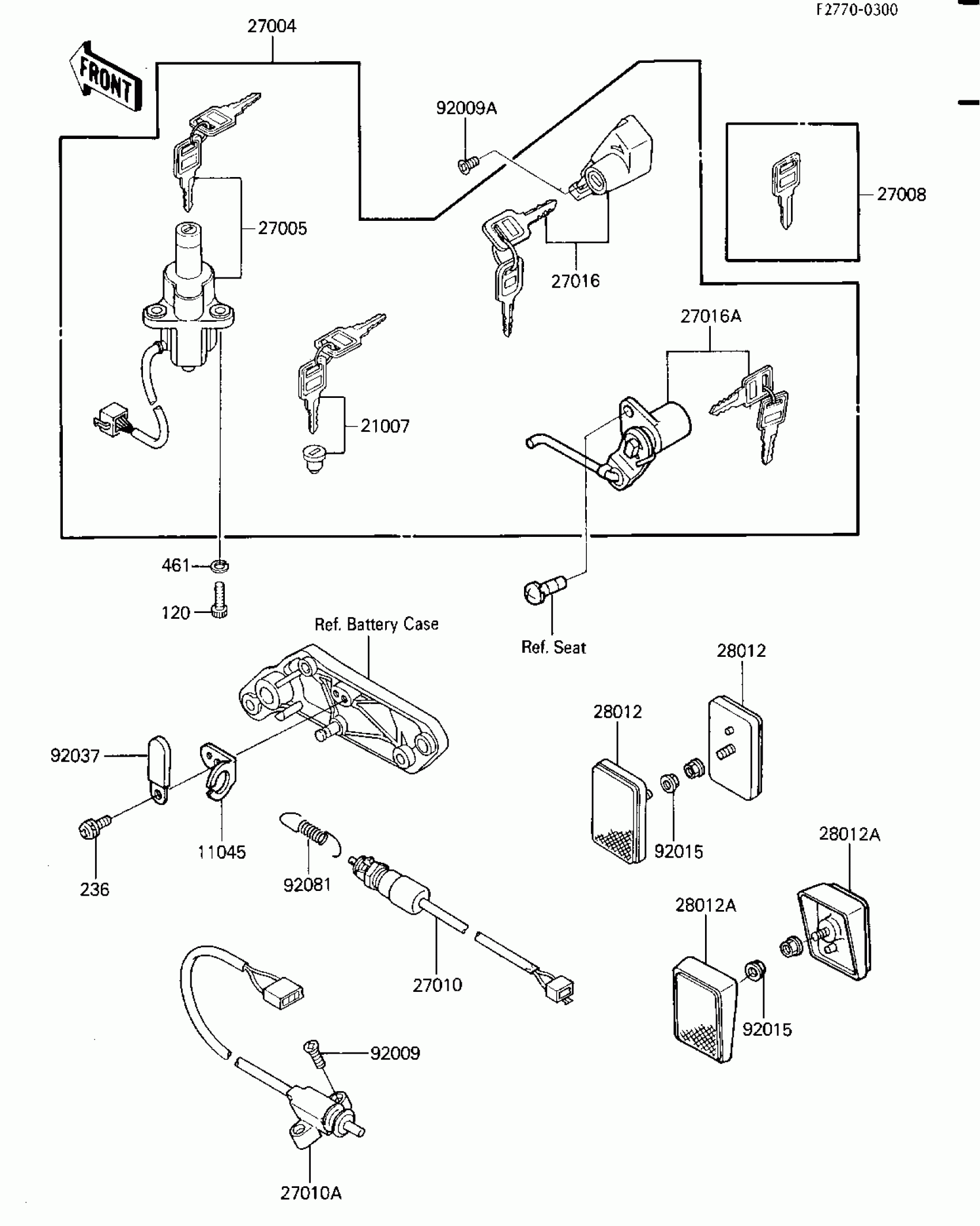

1987 Kawasaki ZL600 Eliminator Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,BRAKE SWITCH

11044-1873

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5005

1

$101.48

In stock

27004

SWITCH-ASSY

27004-5283

1

$434.72

In stock

27005

SWITCH-ASSY-IGNITION

27005-5045

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

27010

SWITCH,BRAKE LAMP

27010-1152

1

$27.22

In stock

27010A

SWITCH,SIDE STAND

27010-1186

1
Out of stock

27016

LOCK-ASSY,HELMET

27016-5060

1

$106.07

In stock

27016A

LOCK-ASSY,SEAT

27016-5104

1

$44.27

In stock

28012

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1058

1
Out of stock

92009

SCREW,5X20

92009-1359

1
Out of stock

92009A

SCREW,5X12

92009-1401

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92081

SPRING

27011-020

1

$16.97

In stock

120

BOLT-SOCKET,8X22

120T0822

1
Out of stock

236

1

$4.12

In stock

461

WASHER-SPRING

461L0800

1
Out of stock
