1987 Kawasaki ZL600 Eliminator Oil Pan Diagram

← All diagrams

Find the part on the Oil Pan diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

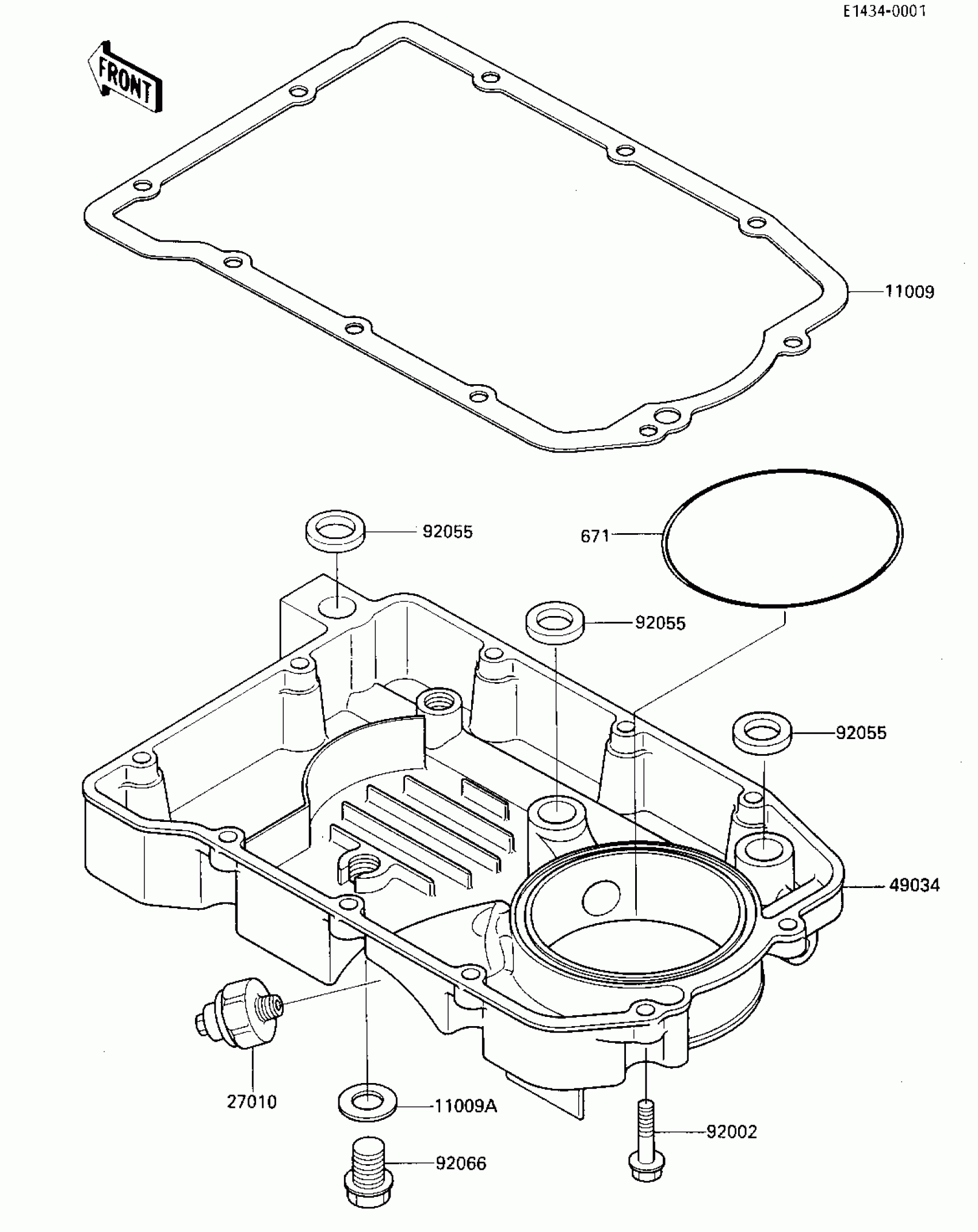

1987 Kawasaki ZL600 Eliminator Oil Pan Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,OIL PAN

11060-1149

1
Out of stock

11009A

GASKET,12X22X2

92065-097

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1155

1
Out of stock

49034

PAN-OIL

49034-1060

1
Out of stock

92002

BOLT,6X25

92002-1089

1
Out of stock

92055

RING-O,19.5MM

92055-077

1
Out of stock

92066

PLUG,OIL DRAIN,12X15

92066-1174

1
Out of stock

671

O RING,90MM

671B2590

1
Out of stock
