1987 Kawasaki ZL600 Eliminator Mufflers Diagram

← All diagrams

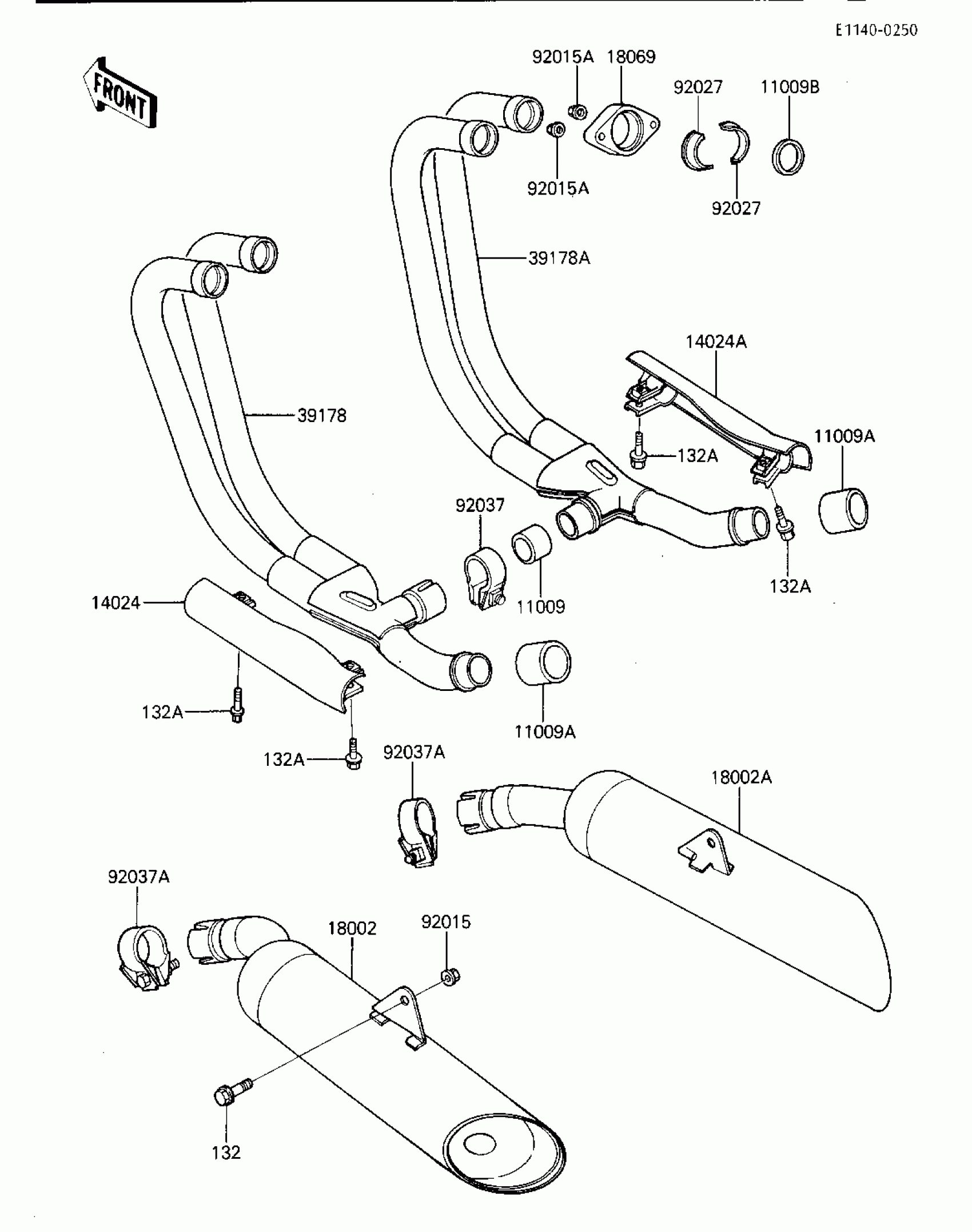

Find the part on the Mufflers diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki ZL600 Eliminator Mufflers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$24.28

In stock

11009A

1

$34.75

In stock

11009B

1

$6.55

In stock

14024

COVER,EXHAUST MANIFOL

14024-1230

1
Out of stock

14024A

COVER,EXHAUST MANIFOL

14024-1231

1
Out of stock

18002

BODY-COMP-MUFFLER,LH

18002-1663

1
Out of stock

18002A

BODY-COMP-MUFFLER,RH

18002-1664

1
Out of stock

18069

HOLDER-EXHAUST PIPE

18069-1025

1

$22.27

In stock

39178

MANIFOLD-COMP-EXHAUST,LH

39178-1109

1
Out of stock

39178A

1

$473.06

In stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,CAP,6MM

92015-1385

1

$3.43

In stock

92027

COLLAR

92027-1365

1

$7.14

In stock

92037

1

$9.70

In stock

92037A

CLAMP,MUFFLER

92037-1536

1

$12.56

In stock

132

1

$4.37

In stock

132A

BOLT-FLANGED-SMALL,6X40

132Y0640

1
Out of stock
