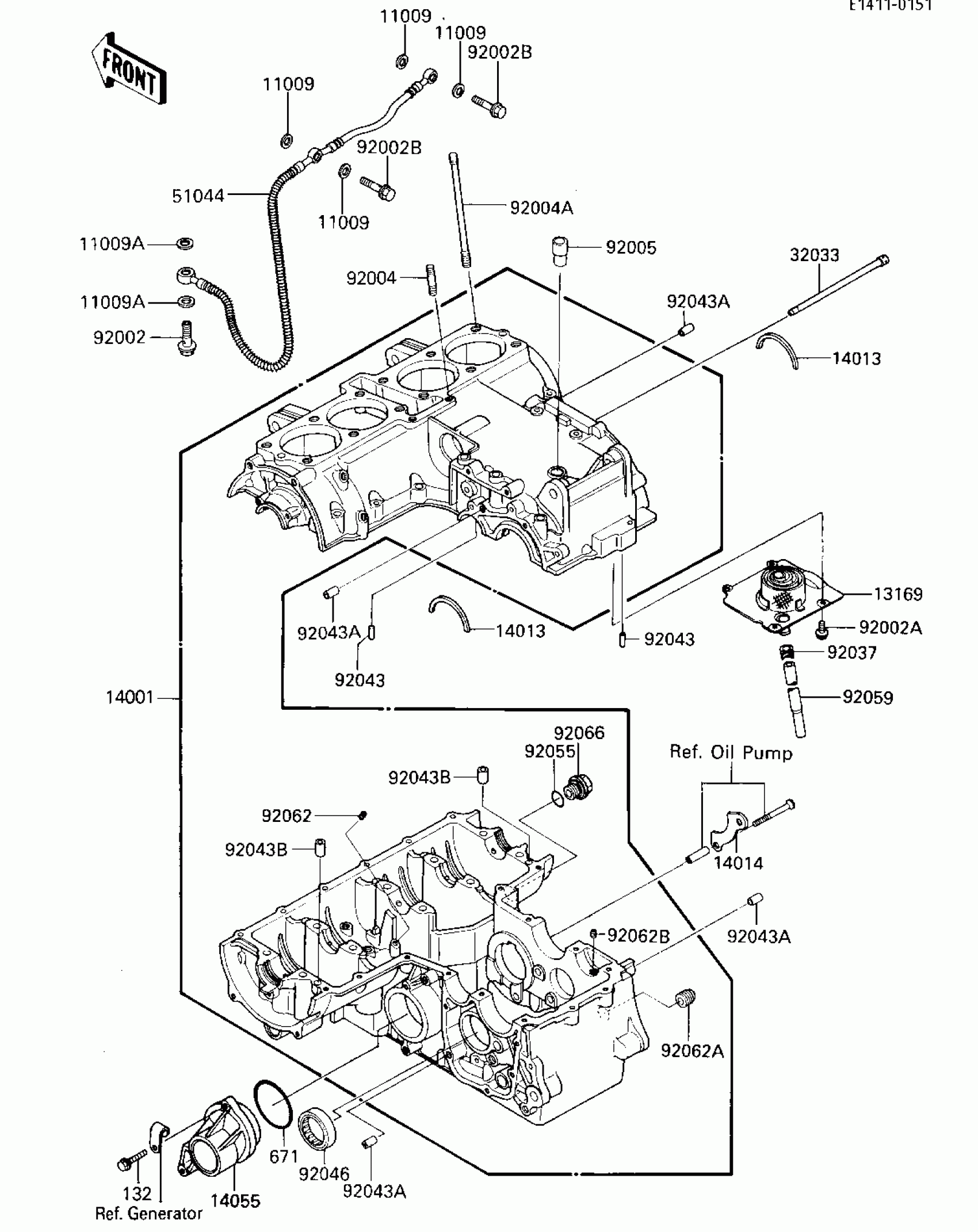

Find the part on the Crankcase diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki ZL600 Eliminator Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,8.2X14X1.0

11009-1344

1

$2.44

In stock

11009A

GASKET,12.5X18X1.5

11009-1376

1

$1.56

In stock

13169

PLATE,BREATHER

13169-1966

1
Out of stock

14001

SET-CRANKCASE

14001-5217

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

14014

PLATE-POSITION

14014-1006

1
Out of stock

14055

CASE-GEAR

14055-1078

1
Out of stock

32033

PIPE,OIL

32033-1858

1
Out of stock

51044

TUBE-ASSY

51044-1071

1

$241.78

In stock

92002

BOLT,BANJO,12X23

92001-1871

1

$16.05

In stock

92002A

BOLT,6X10

92002-1449

1

$3.68

In stock

92002B

BOLT,BANJO,8X24

92002-1858

1
Out of stock

92004

STUD,6X22

92004-059

1
Out of stock

92004A

STUD,8X128.5

92004-1161

1
Out of stock

92005

FITTING,BREATHER

92005-1129

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1181

1

$2.68

In stock

92043

PIN,DOWEL,6X16

92042-016

1

$3.97

In stock

92043A

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92043B

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92046

1

$23.59

In stock

92055

RING-O,20X2

92055-1146

1

$6.82

In stock

92059

TUBE

92059-1544

1
Out of stock

92062

NOZZLE,BLACK

92062-011

1

$8.37

In stock

92062A

NOZZLE

92062-014

1

$9.56

In stock

92062B

NOZZLE,SILVER

92062-015

1

$3.22

In stock

92066

1

$9.11

In stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

671

O RING,55MM

671B2555

1

$4.93

In stock
