1987 Kawasaki ZL600 Eliminator Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

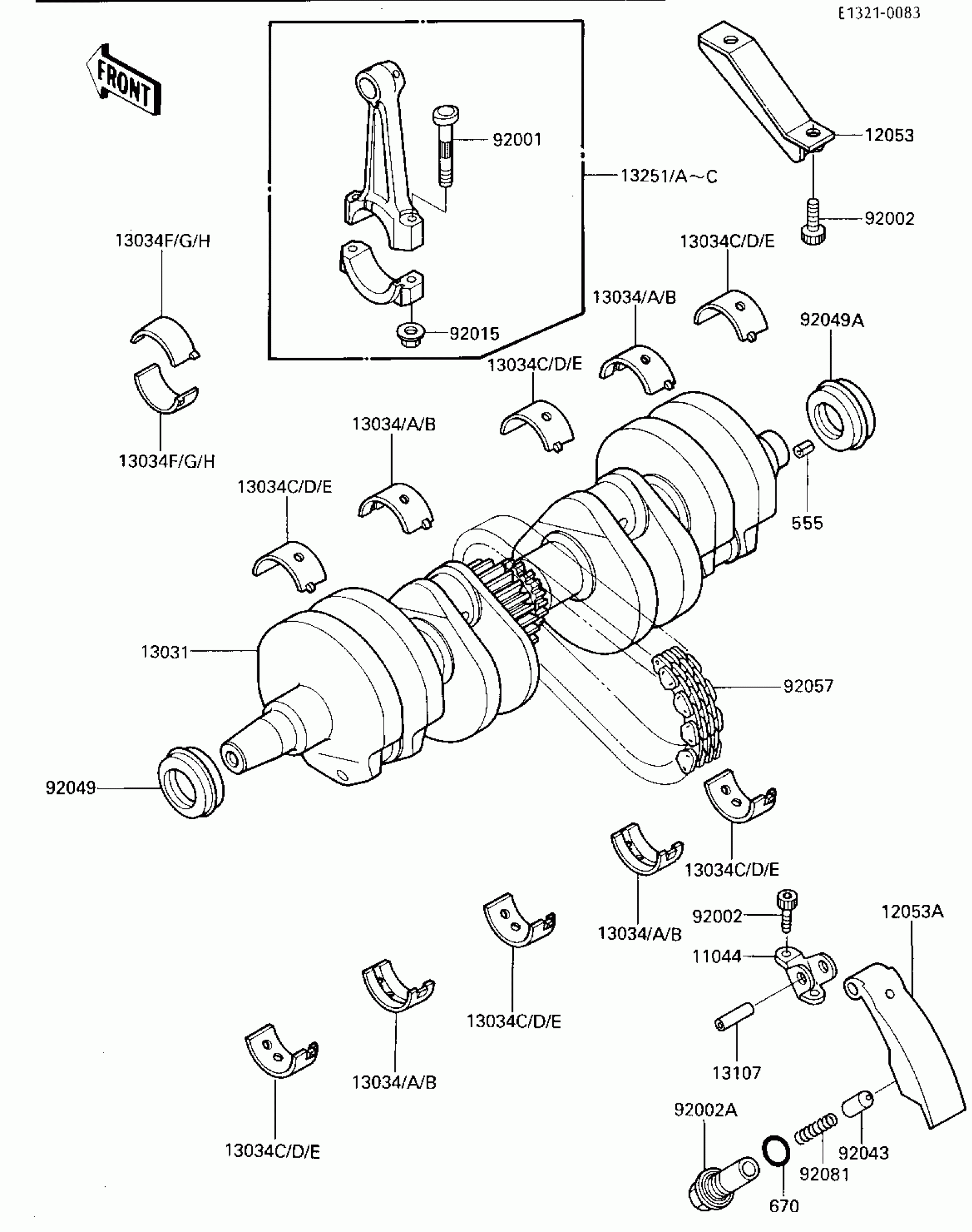

1987 Kawasaki ZL600 Eliminator Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,CHAIN GUIDE

11044-1075

1
Out of stock

12053

GUIDE-CHAIN,UPP

12053-1156

1
Out of stock

12053A

GUIDE-CHAIN,LWR

12053-1157

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1191

1
Out of stock

13034

METAL,CRANKSHAFT,BROWN

13034-1016

—
Out of stock

13034A

METAL,CRANKSHAFT,BLACK

13034-1017

—
Out of stock

13034B

METAL,CRANKSHAFT,BLUE

13034-1018

—
Out of stock

13034C

BUSHING,CRANKSHAFT,BLUE

13034-1064

—
Out of stock

13034D

BUSHING,CRANKSHAFT,BLACK

13034-1065

—
Out of stock

13034E

BUSHING,CRANKSHAFT,BROWN

13034-1066

—
Out of stock

13034F

BUSHING,CONNECTING ROD,BLUE

13034-1067

—
Out of stock

13034G

BUSHING,CONNECTING ROD,BLACK

13034-1068

—
Out of stock

13034H

BUSHING,CONNECTING ROD,BROWN

13034-1069

—
Out of stock

13107

SHAFT,8X25

13107-1142

1
Out of stock

13251

ROD-ASSY-CONNECTING,H

13251-1059-HH

1
Out of stock

13251A

ROD-ASSY-CONNECTING,I

13251-1059-II

1
Out of stock

13251B

ROD-ASSY-CONNECTING,J

13251-1059-JJ

1
Out of stock

13251C

ROD-ASSY-CONNECTING,K

13251-1059-KK

1
Out of stock

92001

BOLT,CONNECTING ROD,8MM

92001-1887

1
Out of stock

92002

BOLT,SOCKET,6X14

92002-1192

1
Out of stock

92002A

BOLT

92002-1479

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92043

PIN

92043-076

1
Out of stock

92049

SEAL-OIL,HSCY25367

92049-1013

1
Out of stock

92049A

SEAL-OIL,HSCY25397

92050-081

1
Out of stock

92057

CHAIN,PRIMARY,MA0364X50L

92057-1011

1
Out of stock

92081

SPRING

92081-112

1
Out of stock

555

PIN-SPRING,4X8

555A0408

1
Out of stock

670

O RING,16MM

670B2016

1
Out of stock
