1987 Kawasaki ZL600 Eliminator Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

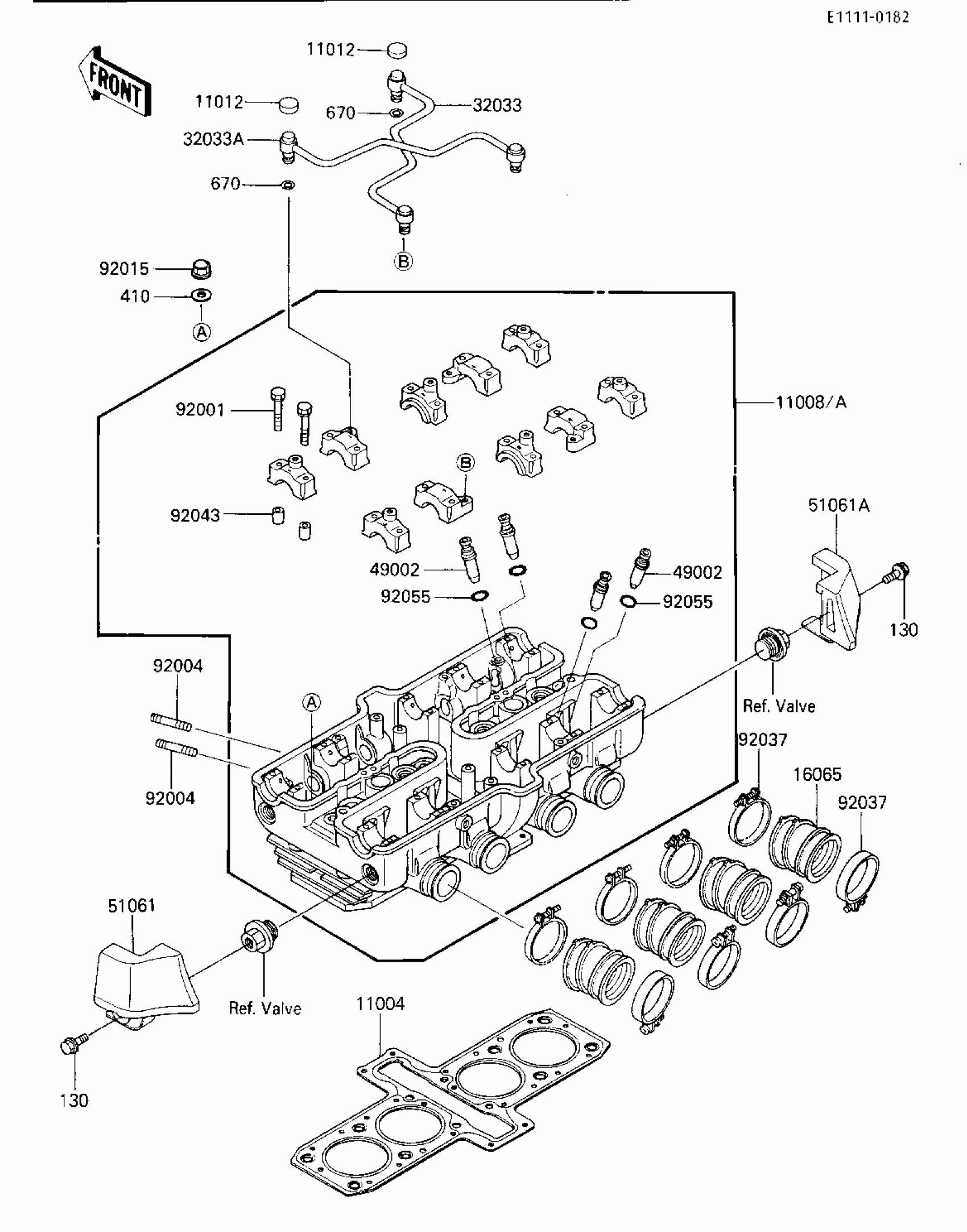

1987 Kawasaki ZL600 Eliminator Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1152

1
Out of stock

11008A

HEAD-COMP-CYLINDER

11008-1182

1
Out of stock

11012

HOLDER-CARBURETOR

16065-1142

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1142

1
Out of stock

32033

PIPE

32033-1942

1
Out of stock

32033A

PIPE

32033-1943

1
Out of stock

49002

GUIDE-VALVE

49002-1060

1
Out of stock

51061

PAD-KNEE,HEAD,LH

51061-1053

1
Out of stock

51061A

PAD-KNEE,HEAD,RH

51061-1054

1
Out of stock

92001

BOLT,FLANGED,6X38

92001-1105

1
Out of stock

92015

NUT,CAP,8MM

92015-1151

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92055

RING-O,VALVE GUIDE

92055-1177

1
Out of stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock

670

O RING

670D1505

1
Out of stock
