1987 Kawasaki ZL600 Eliminator Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1987 Kawasaki ZL600 Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

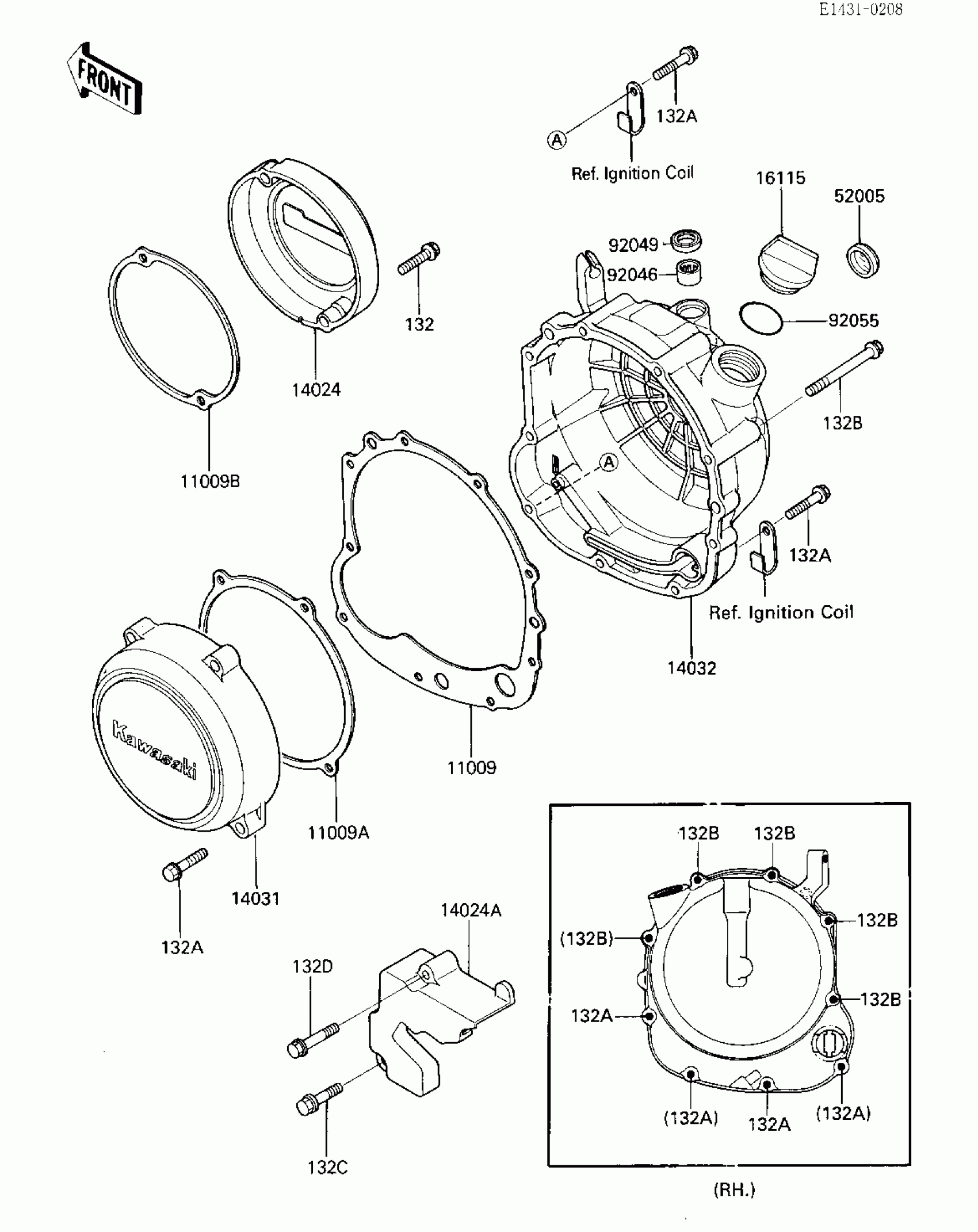

1987 Kawasaki ZL600 Eliminator Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,CLUTCH COVER

11060-1148

1

$32.84

In stock

11009A

1

$14.31

In stock

11009B

GASKET,PULISING COIL

11060-1151

1
Out of stock

14024

COVER,PULSING COIL

14024-1154

1
Out of stock

14024A

COVER,LH

14024-1244

1
Out of stock

14031

COVER-GENERATOR

14031-1192

1
Out of stock

14032

COVER-CLUTCH

14032-1214

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

132

BOLT-FLANGED-SMALL,6X25

132E0625

1
Out of stock

132A

1

$5.42

In stock

132B

1

$4.19

In stock

132C

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X35

132J0635

1
Out of stock
