1993 Kawasaki Zephyr Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

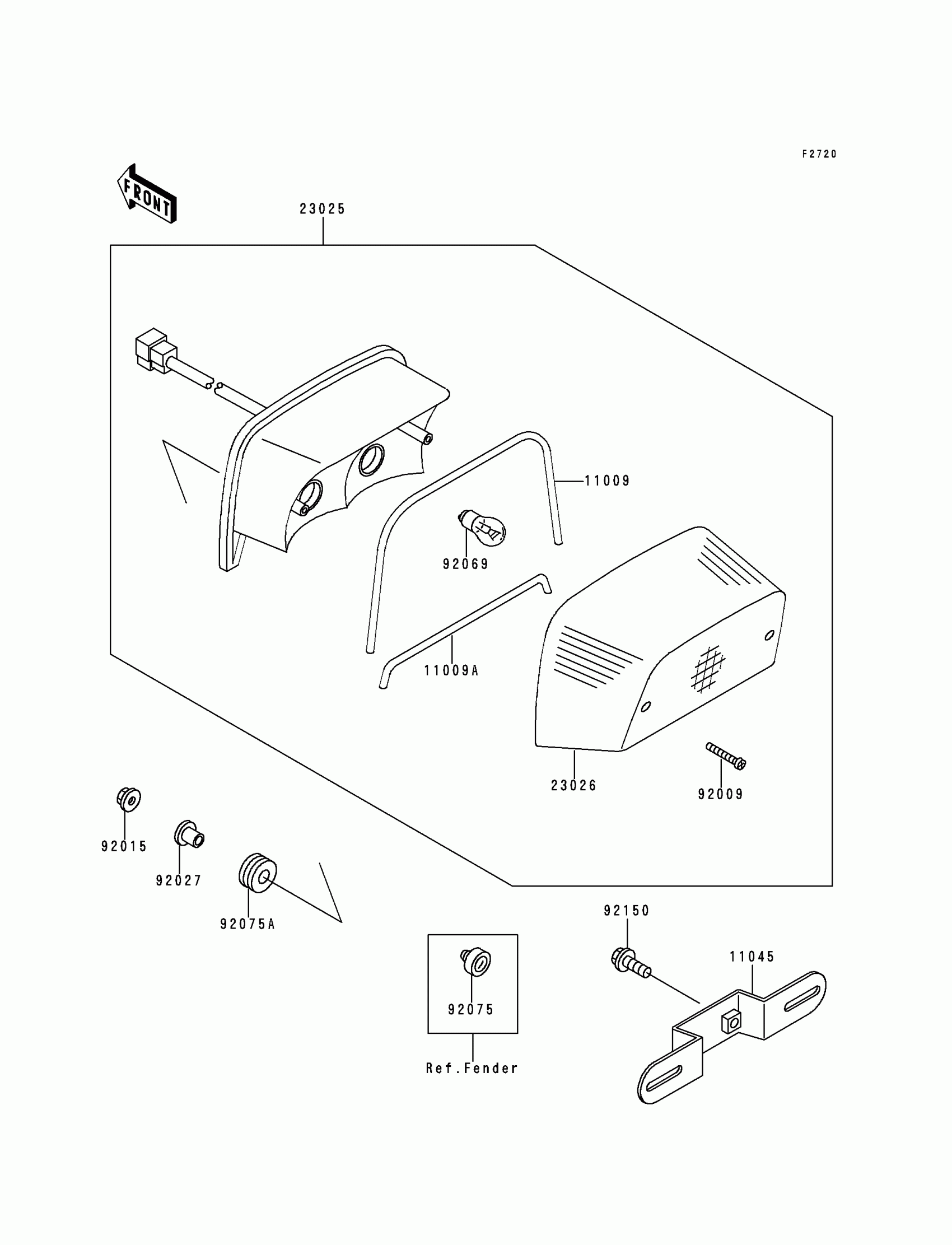

1993 Kawasaki Zephyr Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$9.47

In stock

11009A

1

$7.44

In stock

11045

BRACKET,LICENSE LAMP

11045-1356

1
Out of stock

23025

LAMP-TAIL

23025-1211

1

$132.68

In stock

23026

LENS,TAIL LAMP

23026-1122

1

$50.94

In stock

92009

SCREW,TAPPING,4X30

92009-1506

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92075

DAMPER

92075-035

1

$3.65

In stock

92075A

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92150

BOLT,6X14

92150-1133

1

$3.57

In stock
