1993 Kawasaki Zephyr Ignition Switch Diagram

← All diagrams

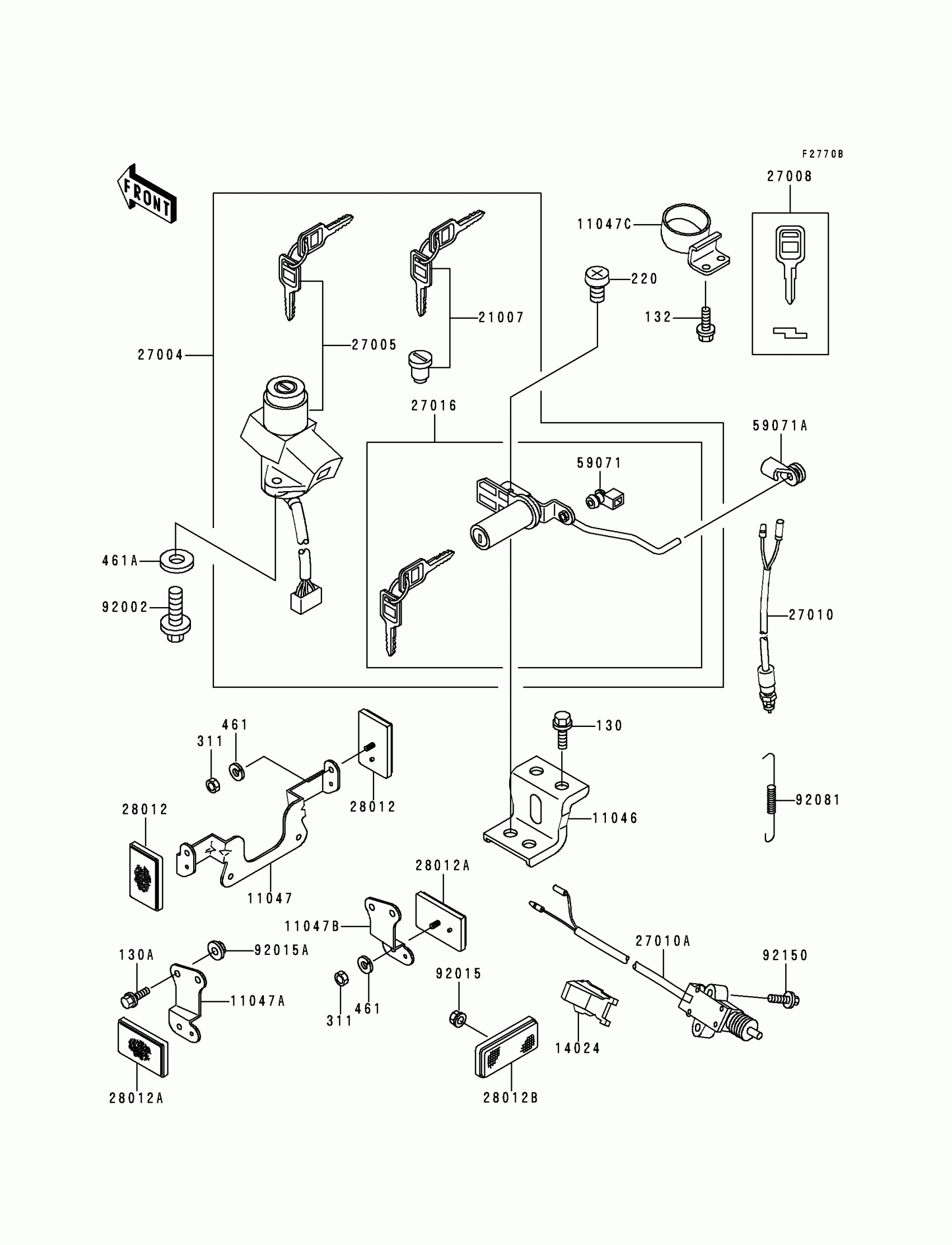

Find the part on the Ignition Switch diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130C0612

1
Out of stock

130A

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER-SPRING

461L0600

1
Out of stock

11046

BRACKET,SEAT LOCK

11046-1790

1
Out of stock

11047

BRACKET,REFLECTOR,FR

11047-1085

1
Out of stock

11047A

BRACKET,REFLECTOR,RR,LH

11047-1086

1
Out of stock

11047B

BRACKET,REFLECTOR,RR,RH

11047-1087

1
Out of stock

11047C

BRACKET,IGNITION SWITCH GUARD

11047-1277

1
Out of stock

14024

COVER,SIDE STAND SWITCH

14024-1532

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5027

1
Out of stock

27004

SWITCH-ASSY

27004-5408

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5093

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1
Out of stock

27010

SWITCH,BRAKE LAMP

27010-1093

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1226

1
Out of stock

27016

LOCK-ASSY,SEAT

27016-5179

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1054

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

59071

JOINT

59071-1103

1
Out of stock

59071A

JOINT

59071-1125

1
Out of stock

92002

BOLT,TORX,6X16

92002-1333

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92015A

NUT,6MM

92015-1321

1
Out of stock

92081

SPRING,BRAKE LAMP SWITCH

92081-1704

1
Out of stock

92150

BOLT,SOCKET,5X20

92150-1019

1
Out of stock
