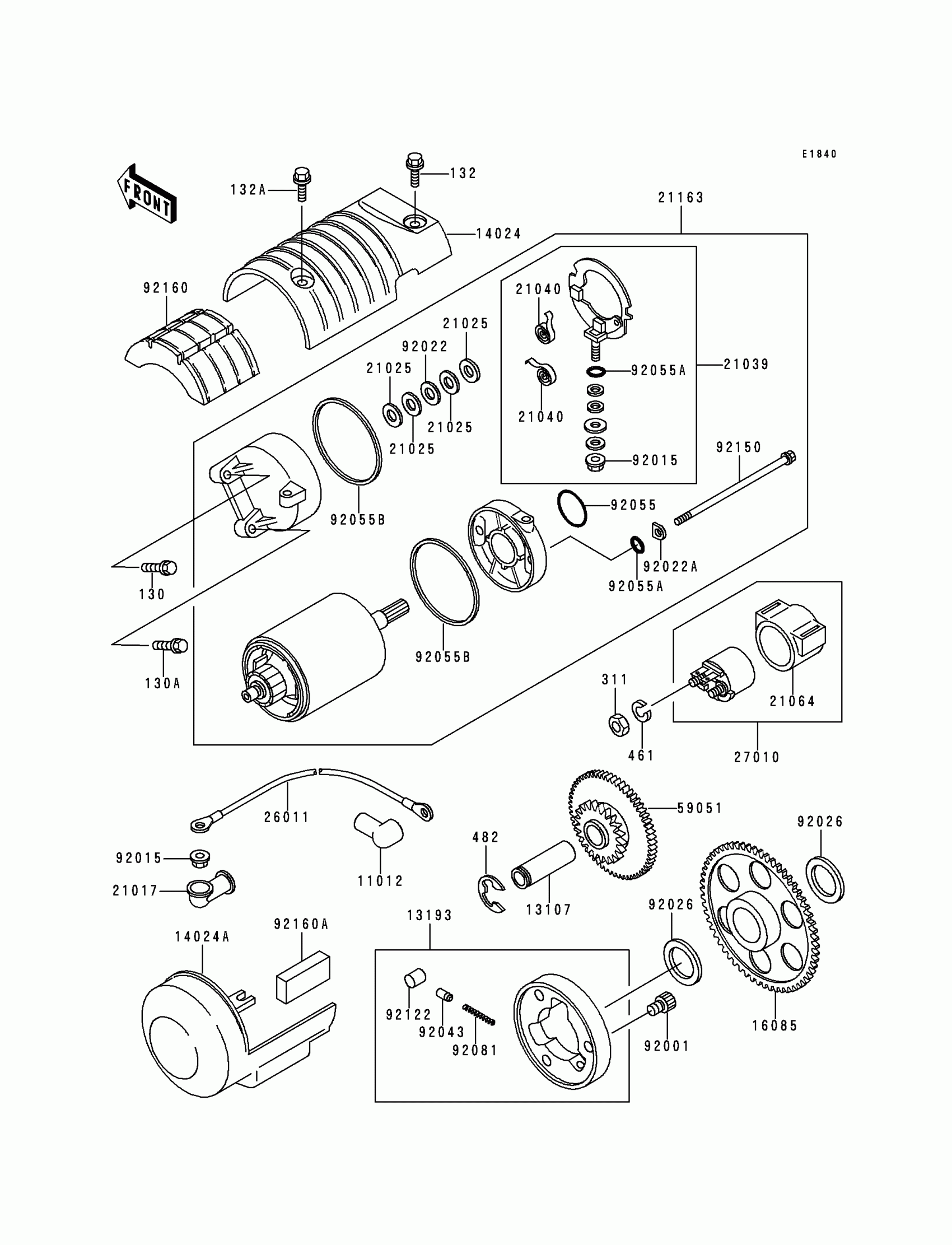

Find the part on the Starter Motor diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT,FLANGED,6X25

130G0625

1
Out of stock

130A

BOLT-FLANGED,6X30

130G0630

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132E0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132E0625

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

482

1

$3.53

In stock

11012

CAP,TERMINAL

11012-1354

1

$9.85

In stock

13107

SHAFT,STARTER IDLE

13107-1006

1
Out of stock

13193

CLUTCH-ASSY-ONEWAY

13193-1002

1

$114.64

In stock

14024

COVER,STARTER,UPP

14024-1808

1
Out of stock

14024A

COVER,STARTER,LWR

14024-1809

1
Out of stock

16085

GEAR,ONEWAY CLUTCH

16085-1030

1

$131.93

In stock

21017

1

$7.48

In stock

21025

WASHER,9.1X18X0.2

21025-011

1

$5.42

In stock

21039

BRUSH,CARBON

21039-1062

1

$88.27

In stock

21040

SPRING-BRUSH

21040-1057

1

$8.24

In stock

21064

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

21163

STARTER-ELECTRIC

21163-1150

1
Out of stock

26011

1

$75.70

In stock

27010

SWITCH,MAGNETIC

27010-1209

1
Out of stock

59051

GEAR-SPUR,STARTER IDLE

59051-1011

1
Out of stock

92001

BOLT,SOCKET,8X10

92001-1424

1

$4.42

In stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,9.1X18X0.8

92022-1132

1

$5.42

In stock

92022A

WASHER,LOCK,T=2.0

92022-1458

1

$5.64

In stock

92026

SPACER,25X36X3.2

92026-1025

1
Out of stock

92043

PIN

92043-132

1

$4.93

In stock

92055

RING-O

92055-1276

1

$7.86

In stock

92055A

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92055B

1

$9.58

In stock

92081

SPRING,COIL

92081-159

1

$2.83

In stock

92122

ROLLER

92122-006

1

$4.93

In stock

92150

BOLT

92150-1243

1

$10.49

In stock

92160

1

$19.98

In stock

92160A

DAMPER

92160-1439

1

$5.14

In stock
