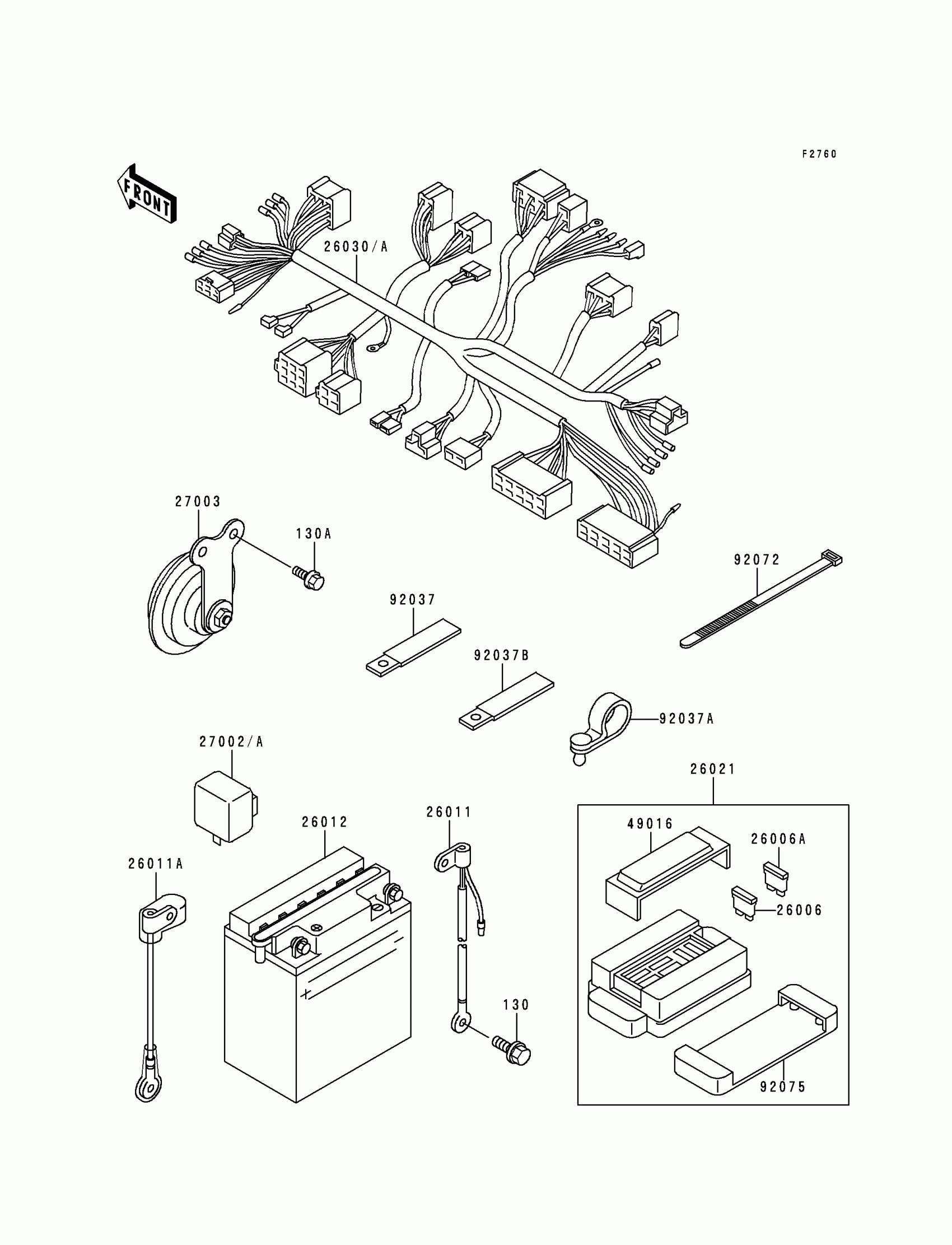

Kawasaki Zephyr Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X10

130B0610

Unavailable

130A

BOLT-FLANGED,6X12

130C0612

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26006A

FUSE,BLADE,10A,RED

26006-1007

$3.78

26011

WIRE-LEAD,BATTERY GROUND

26011-1195

Unavailable

26011A

WIRE-LEAD,BATTERY (+)

26011-1255

Unavailable

26012

BATTERY,12V 12AH,FB12A-A

26012-1217

$96.88

26021

JUNCTION BOX

26021-1079

$231.07

26030A

HARNESS,MAIN

26030-1090

Unavailable

27002

RELAY-ASSY,TURN SIGNAL

27002-1053

$51.80

27003

HORN

27003-1348

$72.21

49016

COVER-SEAL,FUSE

49016-1106

$9.10

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=43

92037-1290

$7.25

92037B

CLAMP

92037-1993

$4.18

92072

BAND,L=202

92072-1195

$1.16

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64
