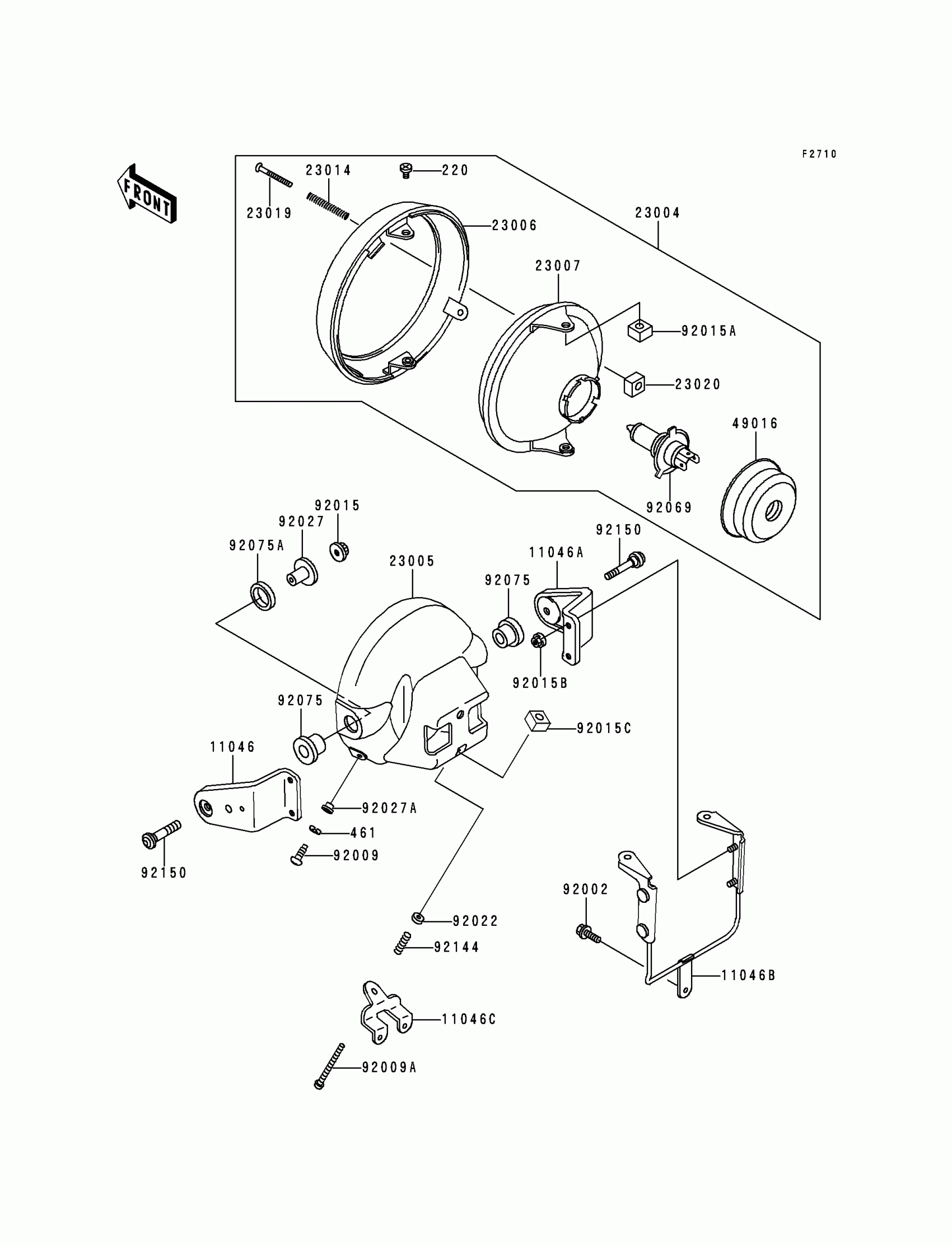

Find the part on the Head Lamp diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,5X10

220D0510

1
Out of stock

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock

11046

BRACKET,HEAD LAMP,LH

11046-1747

1
Out of stock

11046A

BRACKET,HEAD LAMP,RH

11046-1748

1
Out of stock

11046B

BRACKET,HEAD LAMP

11046-1779

1
Out of stock

11046C

BRACKET,HEAD LAMP BODY

11046-1796

1
Out of stock

23004

LAMP-HEAD

23004-1275

1
Out of stock

23005

1

$127.52

In stock

23006

RIM-LAMP,CR PLATED

23006-1020

1

$65.92

In stock

23007

LENS-COMP,HEAD LAMP

23007-1224

1

$158.78

In stock

23014

1

$3.19

In stock

23019

1

$4.17

In stock

23020

1

$3.69

In stock

49016

1

$11.85

In stock

92002

BOLT

92002-1626

1
Out of stock

92009

SCREW,5X16

92009-1157

1
Out of stock

92009A

SCREW,ADJUST

92009-1580

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,5MM

92015-1157

1
Out of stock

92015B

NUT,CAP,6MM,BLACK

92015-1170

1
Out of stock

92015C

1

$3.88

In stock

92022

WASHER,5.2X13X1

92022-1380

1

$3.43

In stock

92027

COLLAR,L=20

92027-1131

1

$8.71

In stock

92027A

1

$3.92

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

1

$5.42

In stock

92075A

1

$4.42

In stock

92144

SPRING

92144-1417

1

$4.10

In stock

92150

BOLT,8X40

92150-1403

1

$10.36

In stock
