1993 Kawasaki Zephyr Battery Case Diagram

← All diagrams

Find the part on the Battery Case diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

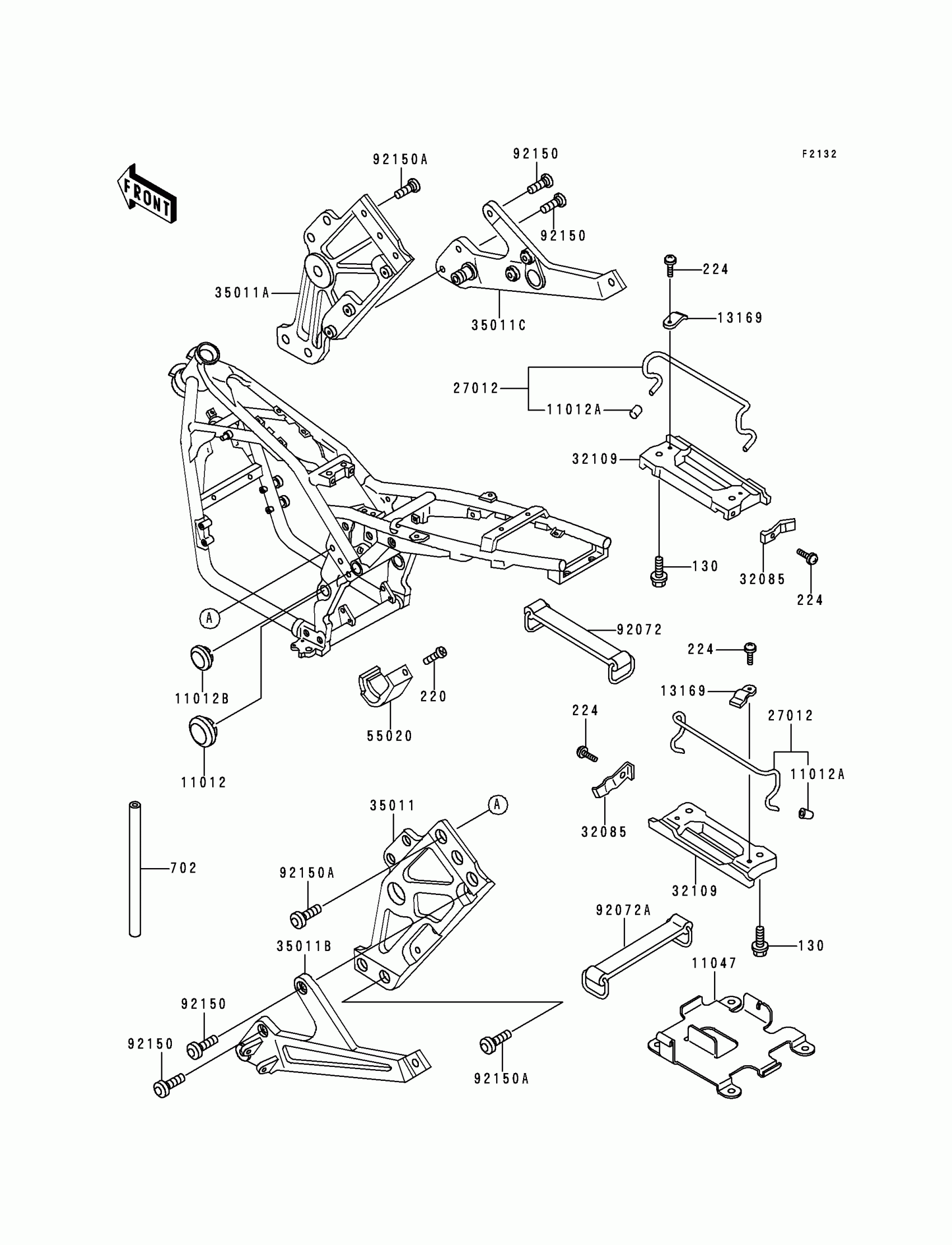

1993 Kawasaki Zephyr Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X14

130J0814

1
Out of stock

220

SCREW-PAN-CROS,5X10

220C0510

1
Out of stock

224

SCREW-PAN-WP-CROS

224C0508

1
Out of stock

702

1

$29.70

In stock

11012

1

$10.63

In stock

11012A

1

$7.63

In stock

11012B

CAP,CROSS PIPE,P.C.GRAY

11012-1717-T2

1
Out of stock

13169

PLATE,GRIP

13169-1760

1

$10.24

In stock

27012

HOOK,BUNGEE CORD

27012-1398

1
Out of stock

32085

STOPPER,HOOK

32085-1187

1

$11.41

In stock

32109

GRIP-FRAME

32109-1108

1

$87.65

In stock

35011

1

$147.33

In stock

35011A

1

$147.33

In stock

35011B

STAY,STEP HOLDER,LH,C.GRAY

35011-1502-EZ

1
Out of stock

35011C

STAY,STEP HOLDER,RH,C.GRAY

35011-1503-EZ

1
Out of stock

55020

GUARD,CHAIN

55020-1361

1
Out of stock

92072

BAND,TOOL

92072-1176

1

$12.34

In stock

92150

BOLT,DISC PLATE,8X30

92150-1132

1
Out of stock

92150A

BOLT,SOCKET,10X25

92150-1401

1

$6.24

In stock
