1993 Kawasaki Zephyr 750 Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Change Drum/shift Fork diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

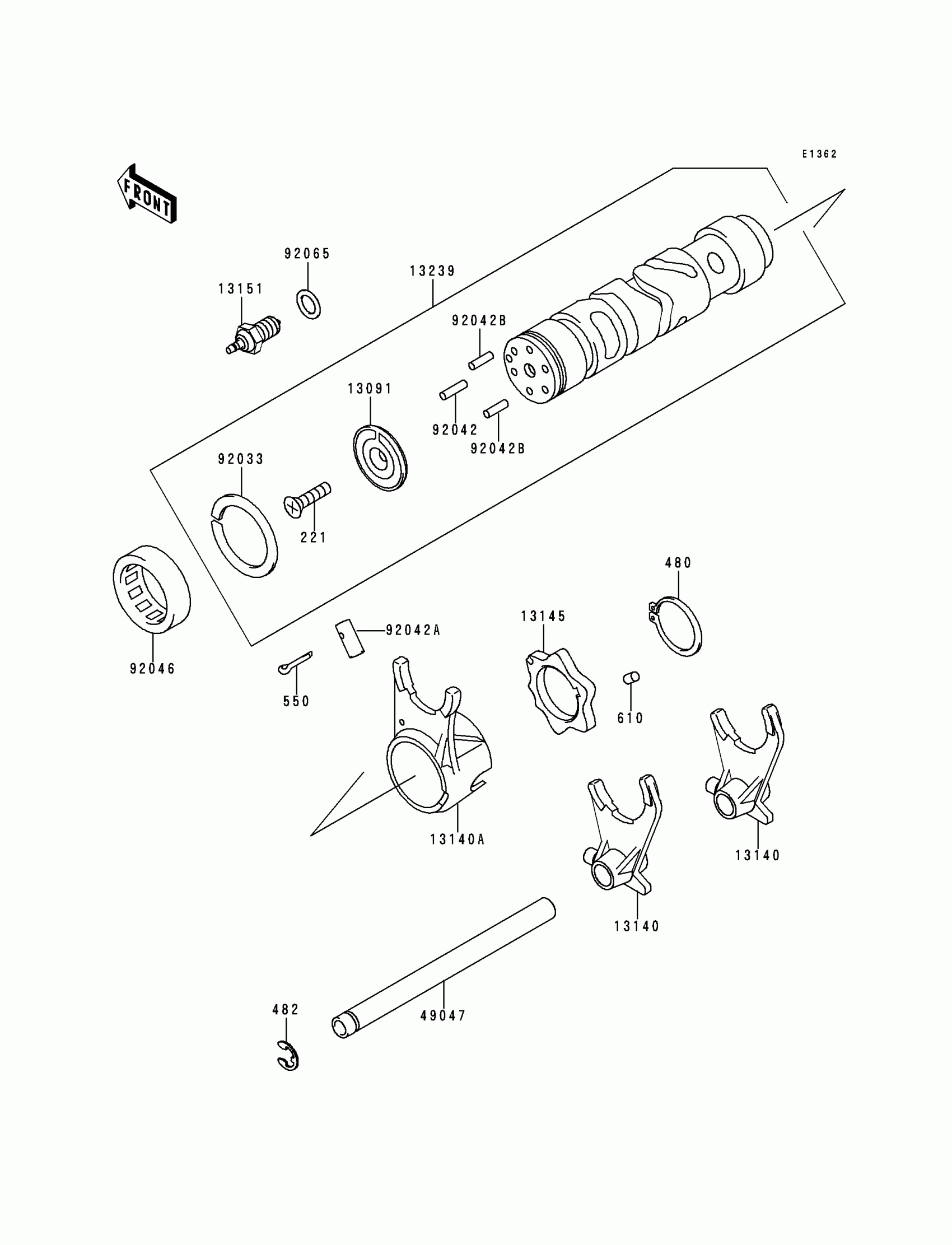

1993 Kawasaki Zephyr 750 Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

221

1

$1.98

In stock

480

1

$4.93

In stock

482

1

$0.75

In stock

550

1

$1.53

In stock

610

ROLLER,4X6

610A0406

1

$3.43

In stock

13091

1

$24.63

In stock

13140

1

$120.23

In stock

13140A

FORK-SHIFT,4TH&TOP

13140-1009

1

$120.23

In stock

13145

CAM-CHANGE DRUM

13145-1058

1

$22.71

In stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1074

1
Out of stock

49047

ROD-SHIFT

49047-1069

1

$28.92

In stock

92033

RING-SNAP,37MM

92033-035

1

$7.44

In stock

92042

PIN,DOWEL,4X15.8

92042-014

1

$0.49

In stock

92042A

PIN,DOWEL,8X18

92042-021

1

$9.12

In stock

92042B

PIN,DOWEL,4X13.8

92042-030

1

$3.12

In stock

92046

1

$23.59

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock
