1993 Kawasaki Zephyr 750 Secondary Shaft Diagram

← All diagrams

Find the part on the Secondary Shaft diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

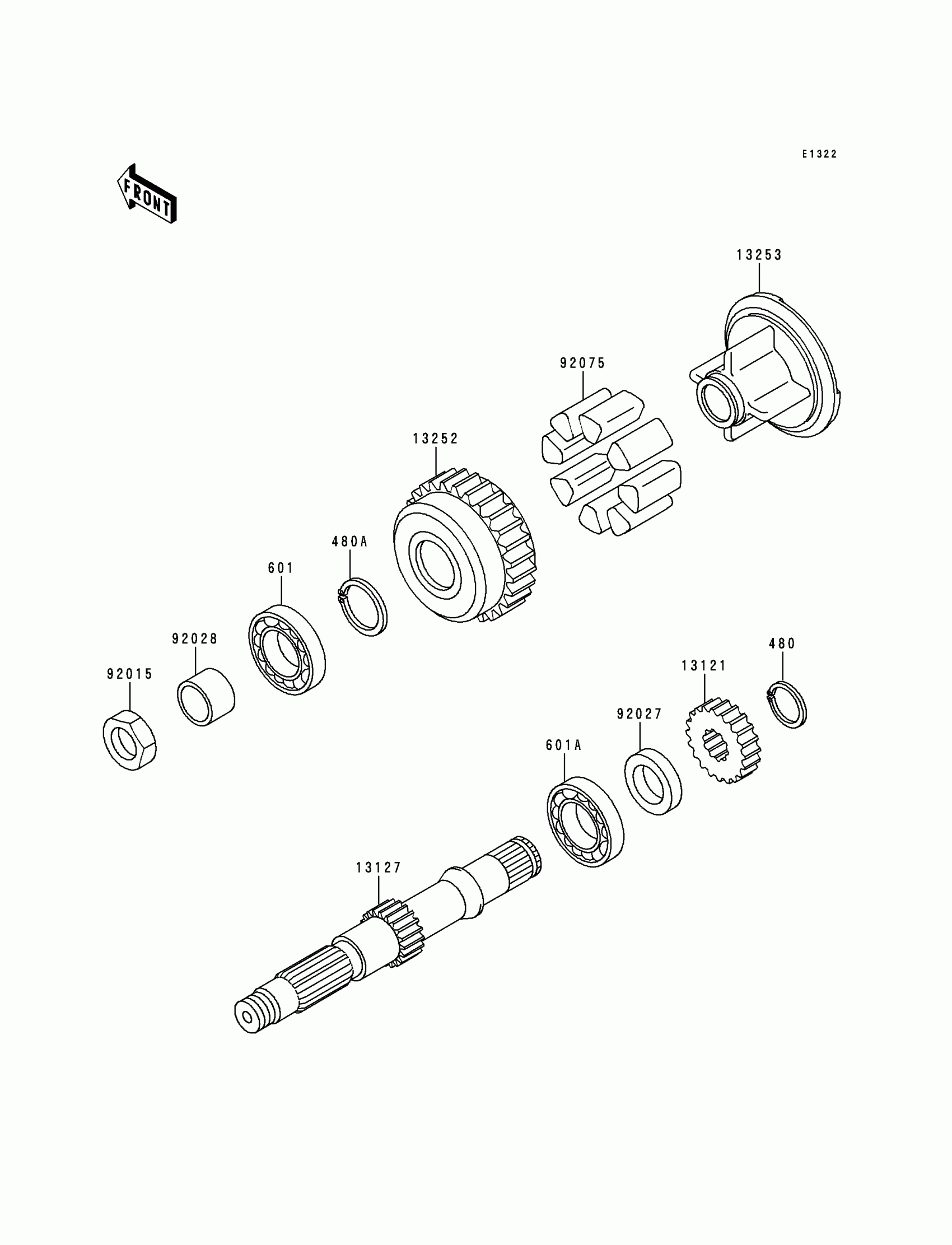

1993 Kawasaki Zephyr 750 Secondary Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP-TYPE-C,22MM

480J2200

1
Out of stock

480A

CIRCLIP-TYPE-C,28MM

480J2800

1
Out of stock

601

BEARING-BALL,#6205C3

601B6205

1
Out of stock

601A

BEARING-BALL,#6305C3

601B6305

1
Out of stock

13121

GEAR,SECONDARY SHAFT,29T

13121-037

1
Out of stock

13127

SHAFT,SECONDARY,L=205

13127-1019

1
Out of stock

13252

COUPLING,OUTER,SECONDARY SHAFT

13252-001

1
Out of stock

13253

COUPLING,INNER,SECONDARY SHAFT

13253-001

1
Out of stock

92015

NUT,18MM

92015-019

1
Out of stock

92027

COLLAR,23X46X4.5

92027-263

1
Out of stock

92028

BUSHING,20X25X16.6

92028-1037

1
Out of stock

92075

DAMPER

92075-1227

1
Out of stock
