1993 Kawasaki Zephyr 750 Side Cover/chain Case Diagram

← All diagrams

Find the part on the Side Cover/chain Case diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

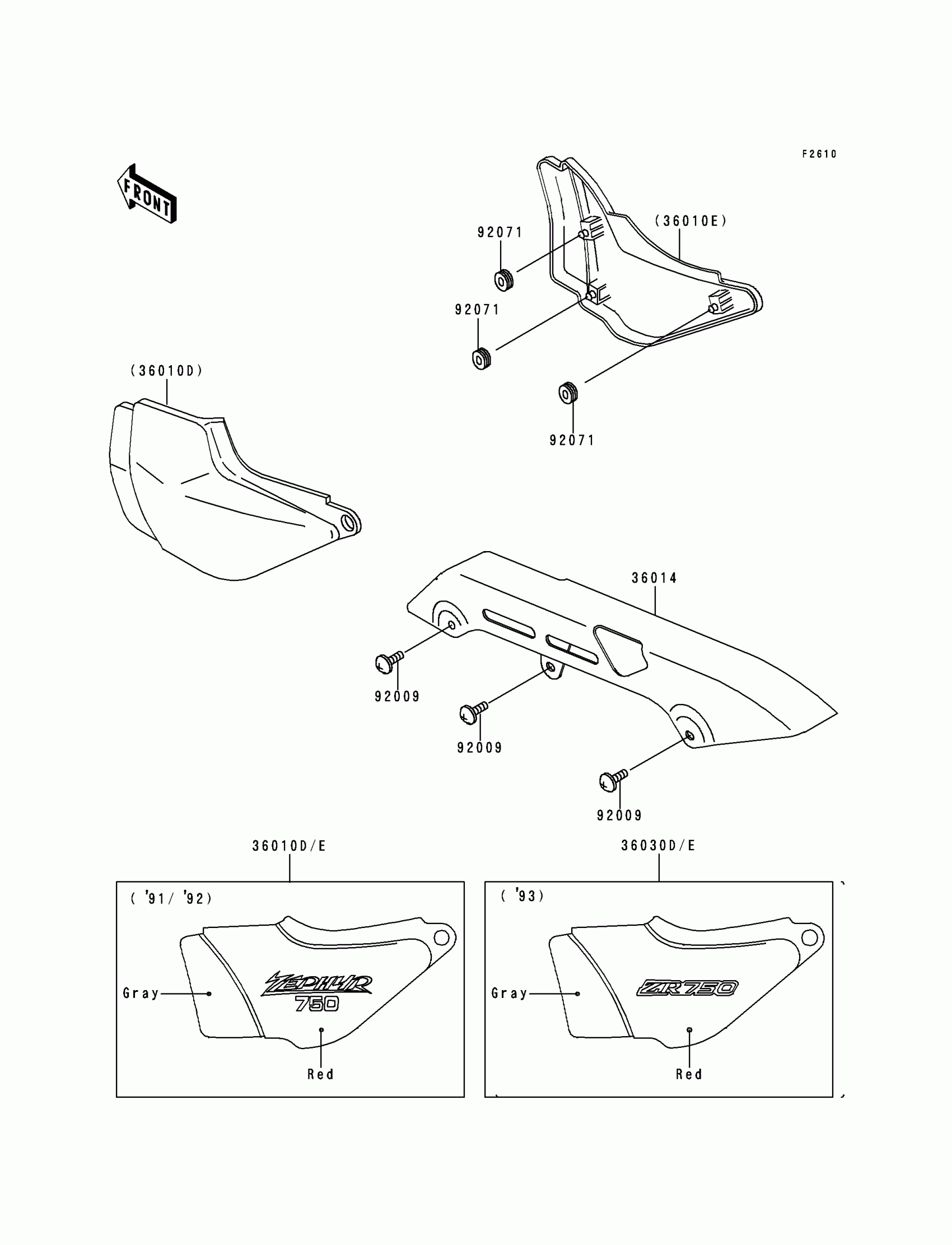

1993 Kawasaki Zephyr 750 Side Cover/chain Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36014

CASE-CHAIN

36014-1172

1

$125.28

In stock

36030D

COVER-SIDE,LH,RED/GRAY

36030-5173-TP

1

$144.22

In stock

36030E

COVER-SIDE,RH,RED/GRAY

36030-5174-TP

1

$144.01

In stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92071

GROMMET

92071-056

1

$3.39

In stock
← Secondary Shaft Transmission →

More Drive & Transmission diagrams
