1993 Kawasaki Zephyr 750 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

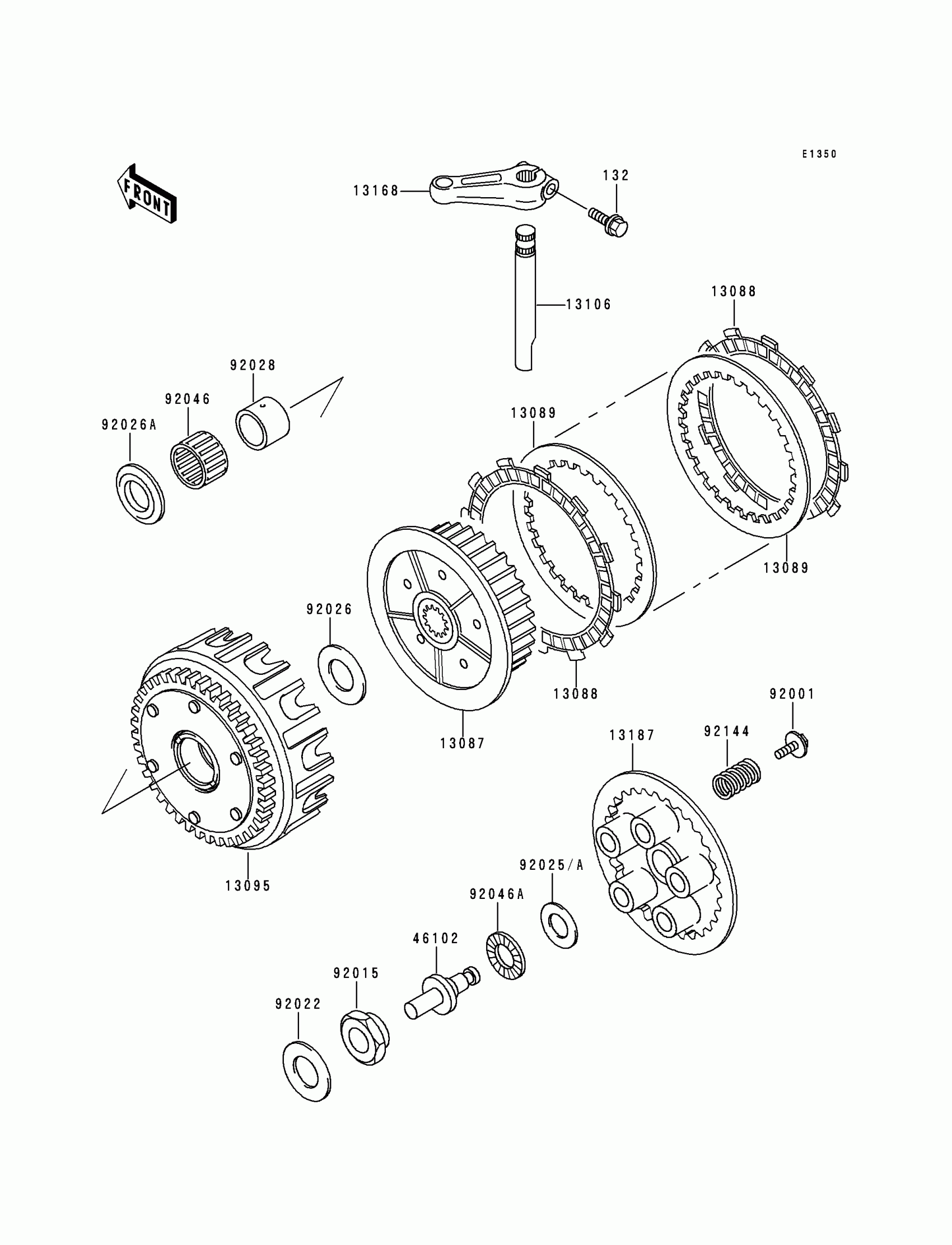

1993 Kawasaki Zephyr 750 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132E0620

1
Out of stock

13087

HUB-CLUTCH

13087-043

1
Out of stock

13088

PLATE-FRICTION

13088-1083

1
Out of stock

13089

PLATE-CLUTCH

13089-1097

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1033

1
Out of stock

13106

SHAFT-CLUTCH RELEASE

13106-1104

1
Out of stock

13168

LEVER,CLUTCH RELEASE

13168-1466

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1014

1
Out of stock

46102

ROD,CLUTCH

46102-1313

1
Out of stock

92001

BOLT,FLANGED,6X18

92001-1066

1
Out of stock

92015

NUT,20MM

92015-1555

1
Out of stock

92022

WASHER,20.3X36X2.3

92022-1116

1
Out of stock

92025

SHIM,15.3X27.5X0.90

92025-1136

1
Out of stock

92025A

SHIM,15.3X27.5X1.20

92025-1137

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

SPACER,THRUST,T=5.5

92026-116

1
Out of stock

92028

BUSHING,25X32X23.6

92028-178

1
Out of stock

92046

BEARING-NEEDLE,KTV323723

92046-028

1
Out of stock

92046A

BEARING-NEEDLE,AXK1102

92046-1052

1
Out of stock

92144

SPRING,CLUTCH

92144-1579

1
Out of stock
