1993 Kawasaki Zephyr 750 Fuel Tank Diagram

← All diagrams

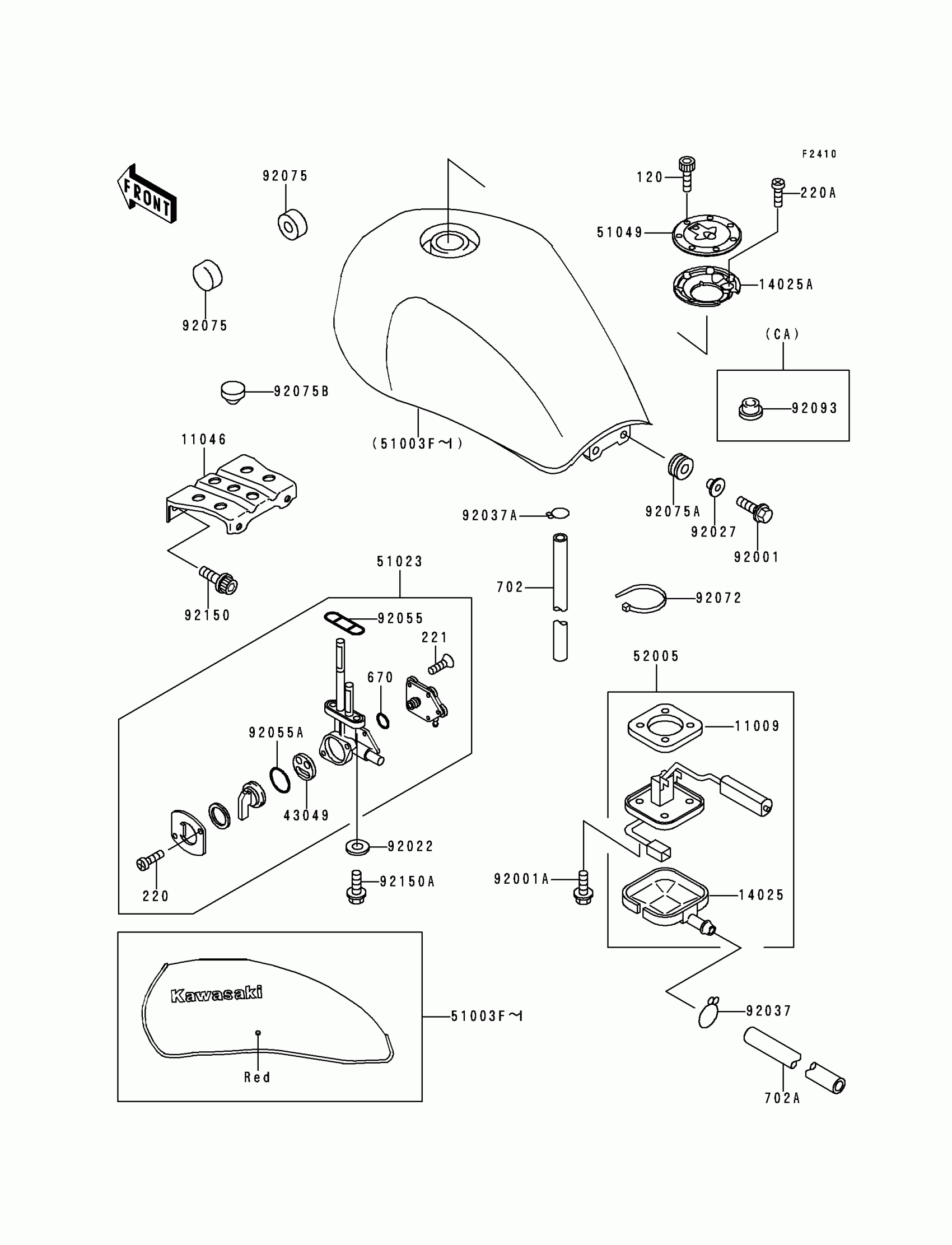

Find the part on the Fuel Tank diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki Zephyr 750 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FUEL GAUGE

11009-1656

1
Out of stock

11046

BRACKET,FUEL TANK

11046-1789

1
Out of stock

14025

COVER,FUEL GAUGE

14025-1536

1
Out of stock

14025A

COVER,TANK CAP

14025-1913

1
Out of stock

43049

PACKING,TAP VALVE

43049-1066

1
Out of stock

51003G

TANK-COMP-FUEL,L.V.RED

51003-5238-P5

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1175

1
Out of stock

51049

CAP-TANK,FUEL

51049-1091

1
Out of stock

52005

GAUGE,FUEL

52005-1101

1
Out of stock

92001

BOLT,6X25

92001-1524

1
Out of stock

92001A

BOLT,FUEL GAUGE

92001-1705

1
Out of stock

92022

WASHER-PLAIN

92022-183

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92037A

CLAMP

92037-1712

1
Out of stock

92055

RING-O,FUEL TAP PACKING

92055-1112

1
Out of stock

92055A

RING-O,TAP LEVER

92055-1419

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92075

DAMPER,FUEL TANK

92075-101

1
Out of stock

92075A

DAMPER,10X24X12

92075-1690

1
Out of stock

92075B

DAMPER

92075-1737

1
Out of stock

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

220

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

220A

SCREW-PAN-CROSS

220C0508

1
Out of stock

221

SCREW-CSK-CROS,4X14

221B0414

1
Out of stock

670

O RING,4MM

670B1504

1
Out of stock

702

TUBE-RUBBER,7X10X600

702A07600

1
Out of stock

702A

TUBE-RUBBER,7X10X860

702A07860

1
Out of stock

92150

BOLT,SOCKET,8X20

92150-1155

1
Out of stock

92150A

BOLT,FLANGED,6X16

92150-1358

1
Out of stock
