2016 Kawasaki Z800 ABS Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

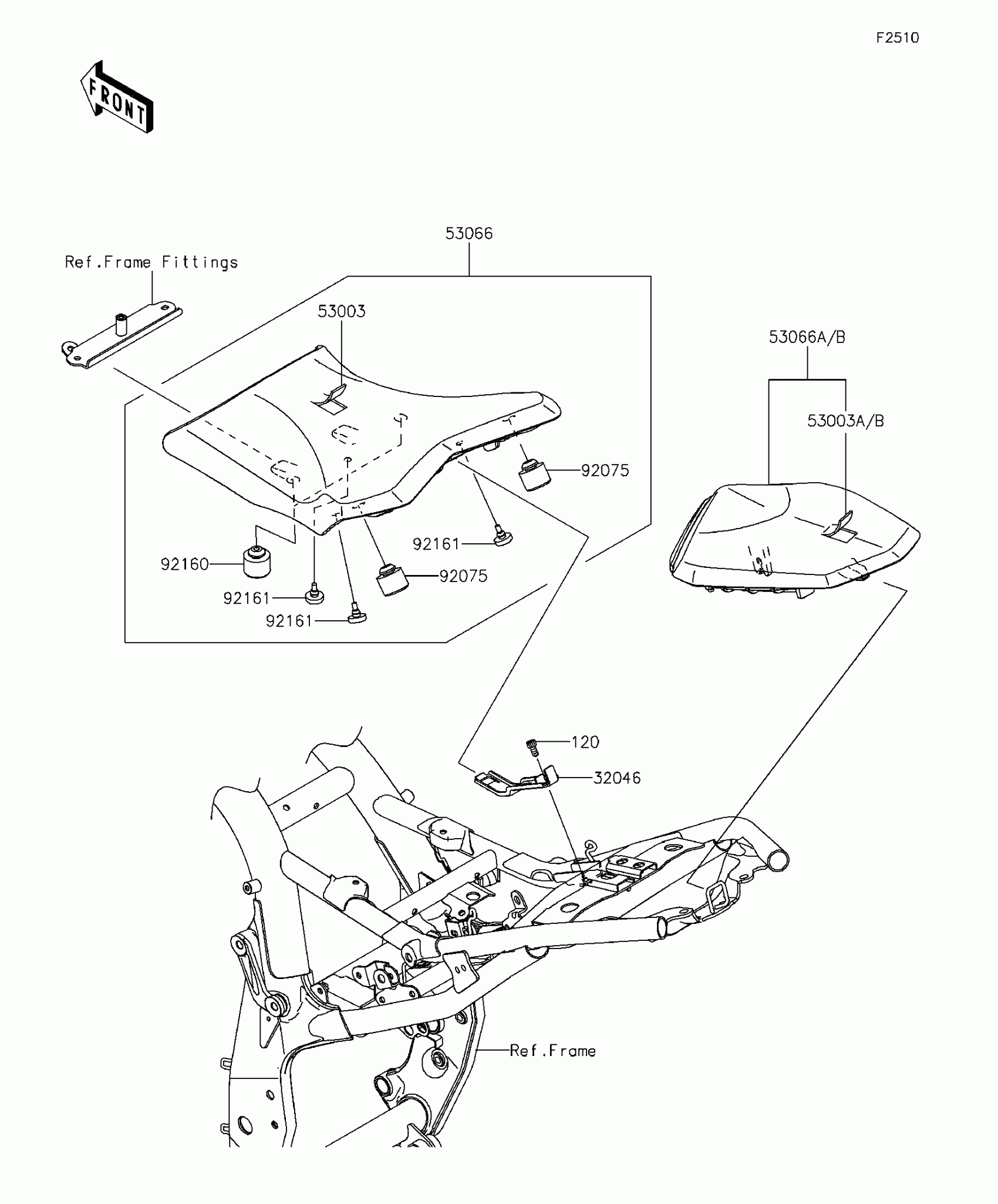

2016 Kawasaki Z800 ABS Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120CA0612

1

$1.47

In stock

32046

BRACKET-SEAT

32046-0335

1

$17.61

In stock

53003

LEATHER,FR SEAT,BLACK

53003-0332-MA

1

$175.18

In stock

53003A

LEATHER,RR SEAT,C.C.RED

53003-0423-55F

1

$140.30

In stock

53003B

LEATHER,RR SEAT,BLACK

53003-0423-MA

1

$140.30

In stock

53066

SEAT-ASSY,FR,BLACK

53066-0466-MA

1

$338.90

In stock

53066A

1

$225.75

In stock

53066B

SEAT-ASSY,RR,C.C.RED

53066-0467-55K

1

$225.75

In stock

92075

DAMPER

92075-1002

1

$5.42

In stock

92160

DAMPER

92160-1513

1

$5.89

In stock

92161

DAMPER

92161-0183

1

$4.29

In stock
