2005 Kawasaki Z750S Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

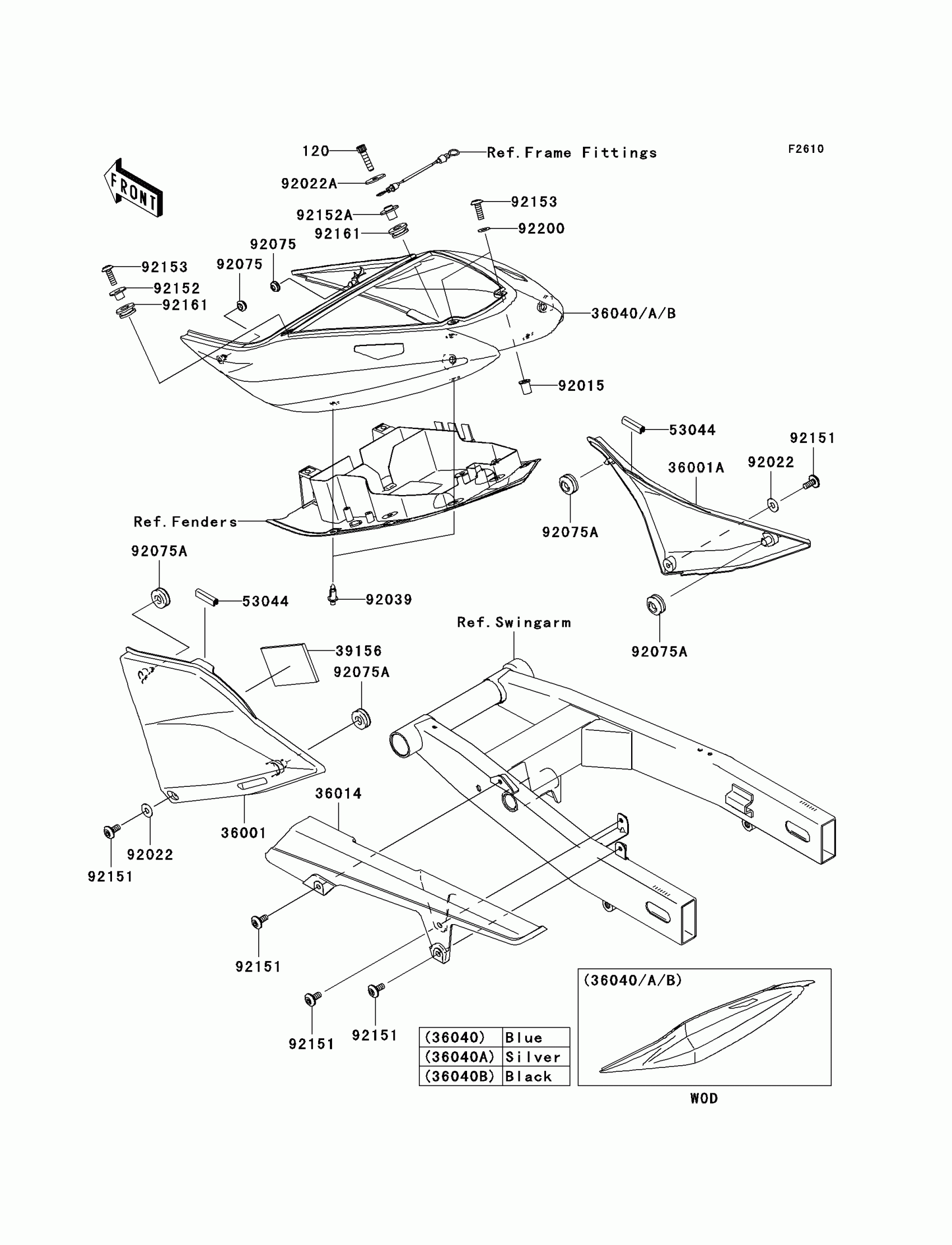

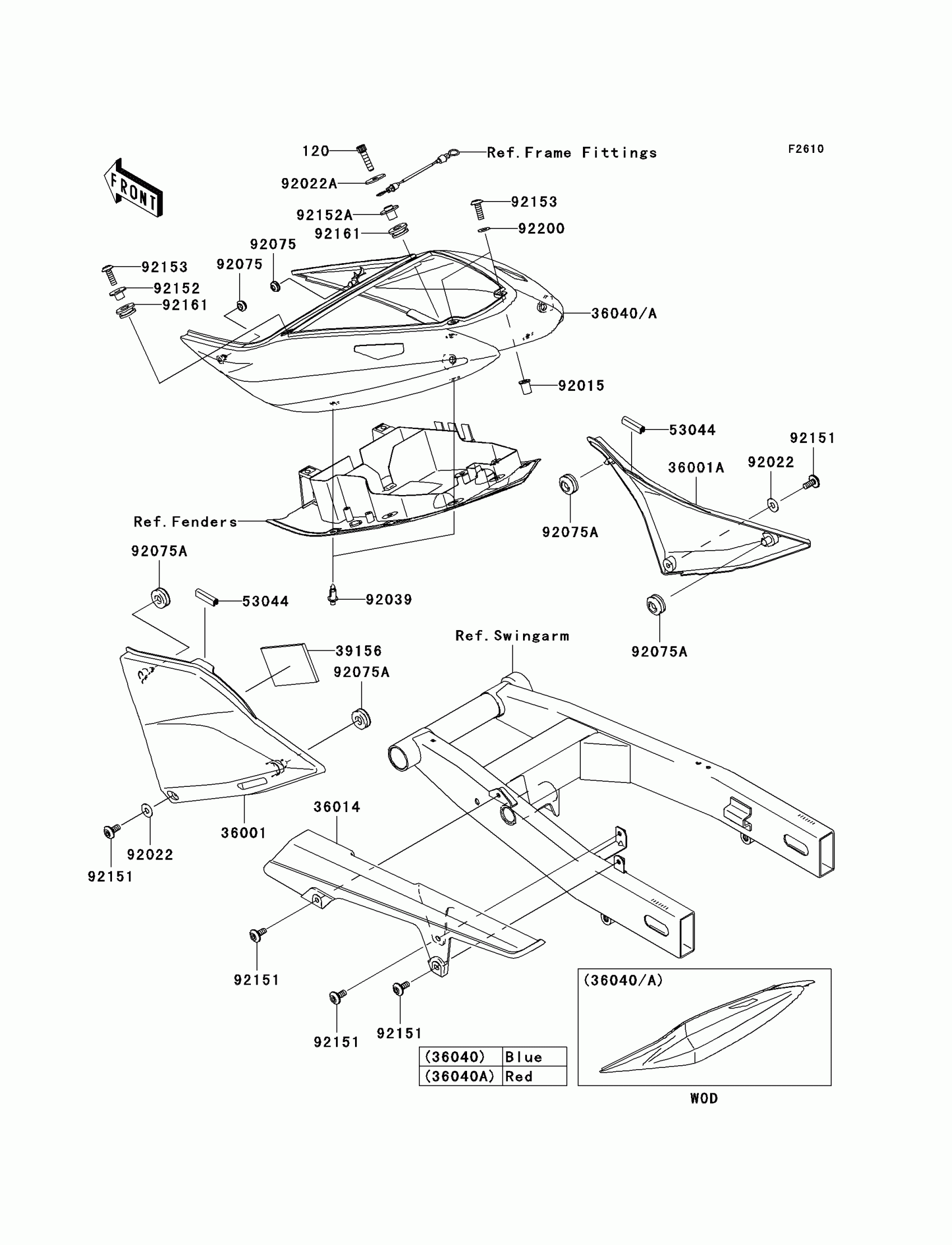

2005 Kawasaki Z750S Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X20

120W0520

1
Out of stock

36001

COVER-SIDE,LH,M.F.GRAYSTONE

36001-0040-4P

1
Out of stock

36001A

COVER-SIDE,RH,M.F.GRAYSTONE

36001-0041-4P

1
Out of stock

36014

CASE-CHAIN

36014-0025

1
Out of stock

36040

COVER-TAIL,C.P.BLUE

36040-0022-723

1
Out of stock

39156

PAD

39156-0024

1
Out of stock

53044

TRIM,L=30

53044-0001

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92022

WASHER,6.5X16X1

92022-1143

1
Out of stock

92022A

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92039

RIVET

92039-0015

1
Out of stock

92075

DAMPER,6X16X7

92075-1011

1
Out of stock

92075A

DAMPER

92075-1067

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR

92152-0092

1
Out of stock

92152A

COLLAR

92152-0304

1
Out of stock

92153

BOLT,SOCKET,5X16

92153-1244

1
Out of stock

92161

DAMPER

92161-1188

1
Out of stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

36040A

COVER-TAIL,P.M.RED

36040-0022-724

1
Out of stock
