2005 Kawasaki Z750S Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

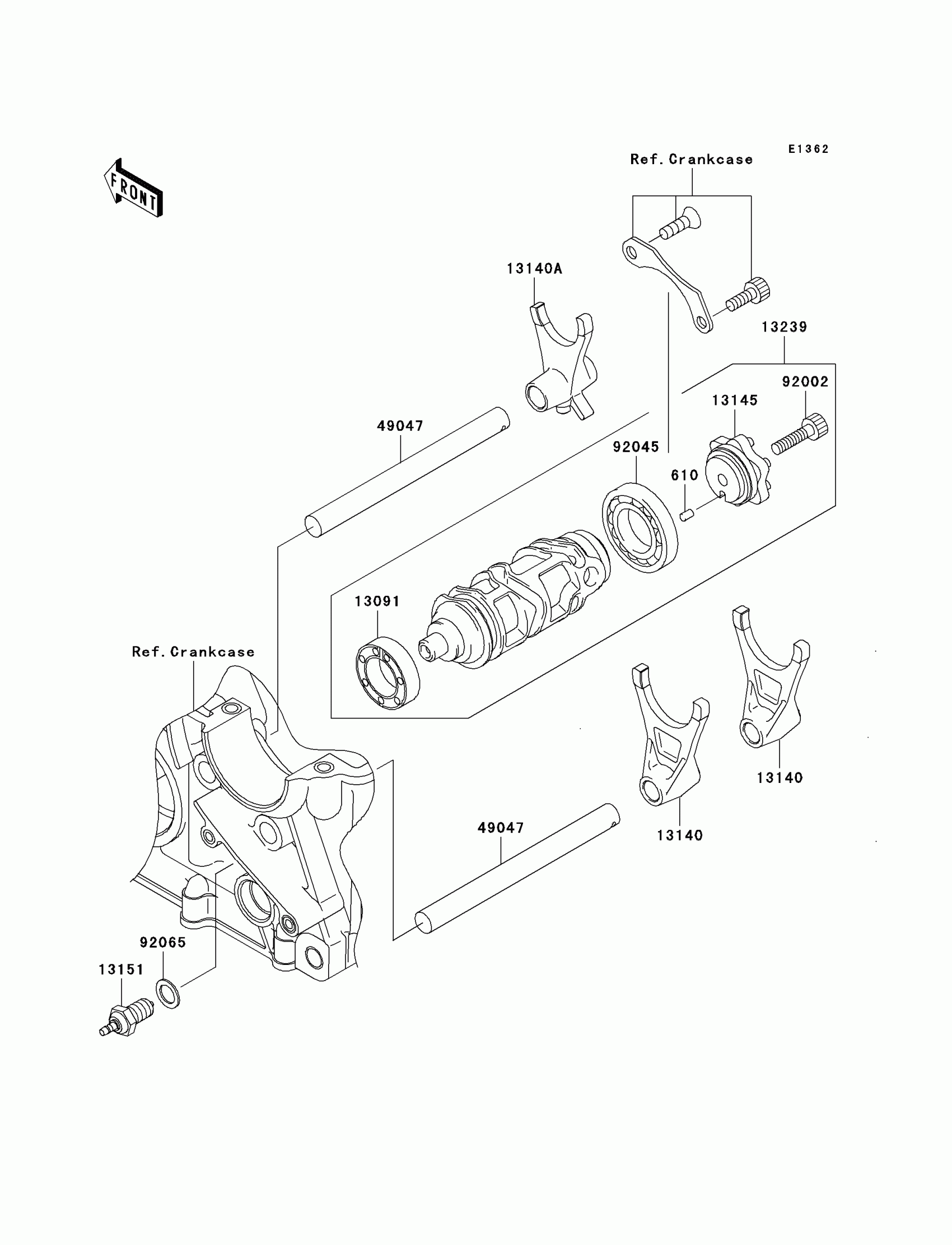

2005 Kawasaki Z750S Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

610

ROLLER,4X6

610A0406

1
Out of stock

13091

HOLDER

13091-1791

1
Out of stock

13140

FORK-SHIFT,OUTPUT

13140-1266

1
Out of stock

13140A

FORK-SHIFT,INPUT

13140-1267

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0002

1
Out of stock

13151

SWITCH-COMP

13151-1085

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-0006

1
Out of stock

49047

ROD-SHIFT

49047-0010

1
Out of stock

92002

BOLT,SOCKET,6X25

92002-1696

1
Out of stock

92045

BEARING-BALL,16005

92045-1045

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock
