2005 Kawasaki Z750S Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

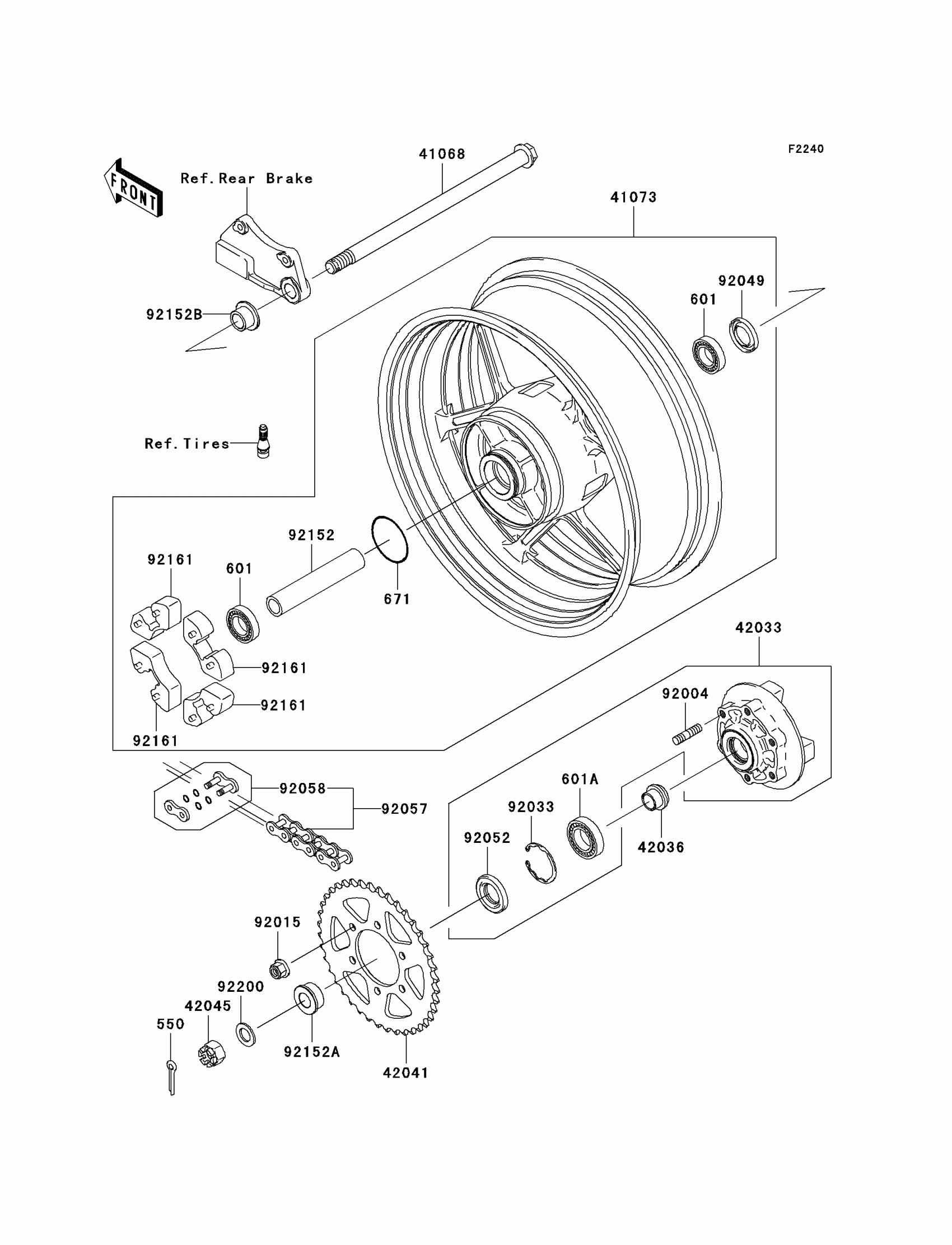

2005 Kawasaki Z750S Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,6204UUC3

601B6204UU

1
Out of stock

601A

BEARING-BALL

601B6205UU

1
Out of stock

671

O RING,60MM

671B2560

1
Out of stock

41068

AXLE,RR

41068-0023

1
Out of stock

41073

WHEEL-ASSY,RR,GRAYSTONE

41073-0009-2A

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-0003

1
Out of stock

42036

SLEEVE,RR HUB,L=23

42036-1251

1
Out of stock

42041

SPROCKET-HUB,43T

42041-0010

1
Out of stock

42045

NUT,CASTLE,18MM

42045-018

1
Out of stock

92004

STUD,10X19

92004-1275

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1335

1
Out of stock

92033

RING-SNAP,52MM

92033-1043

1
Out of stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

92052

SEAL-OIL,TWC35527

92052-006

1
Out of stock

92057

CHAIN,DRIVE,EK520MVXLX112L

92057-0079

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-0002

1
Out of stock

92152

COLLAR,RR HUB,L=150

92152-0070

1
Out of stock

92152A

COLLAR,RR AXLE,LH,L=18

92152-0118

1
Out of stock

92152B

COLLAR,RR AXLE,RH,L=20

92152-1162

1
Out of stock

92161

DAMPER,SHOCK,RR HUB

92161-0058

1
Out of stock

92200

WASHER,19X32X2.6

92200-1489

1
Out of stock
