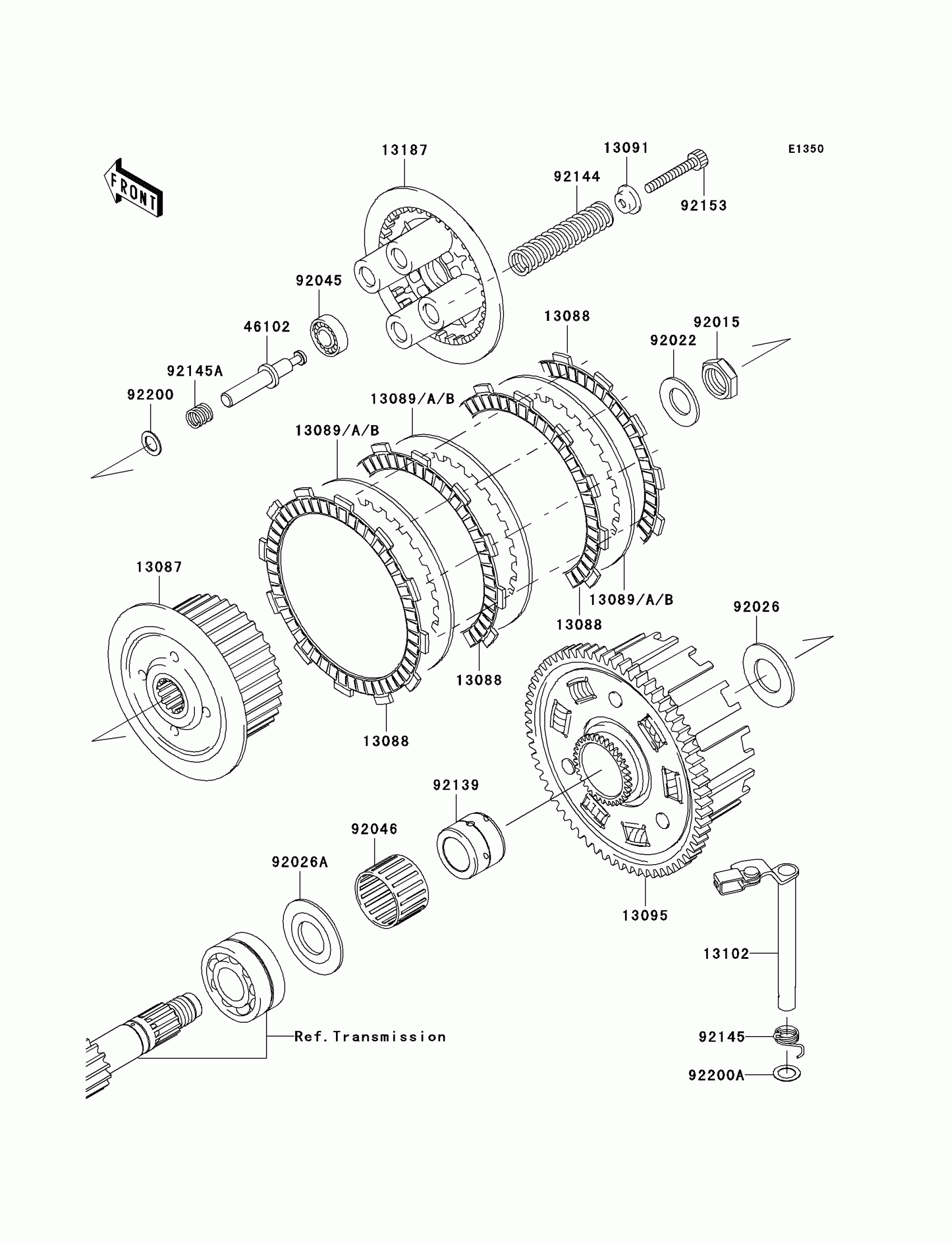

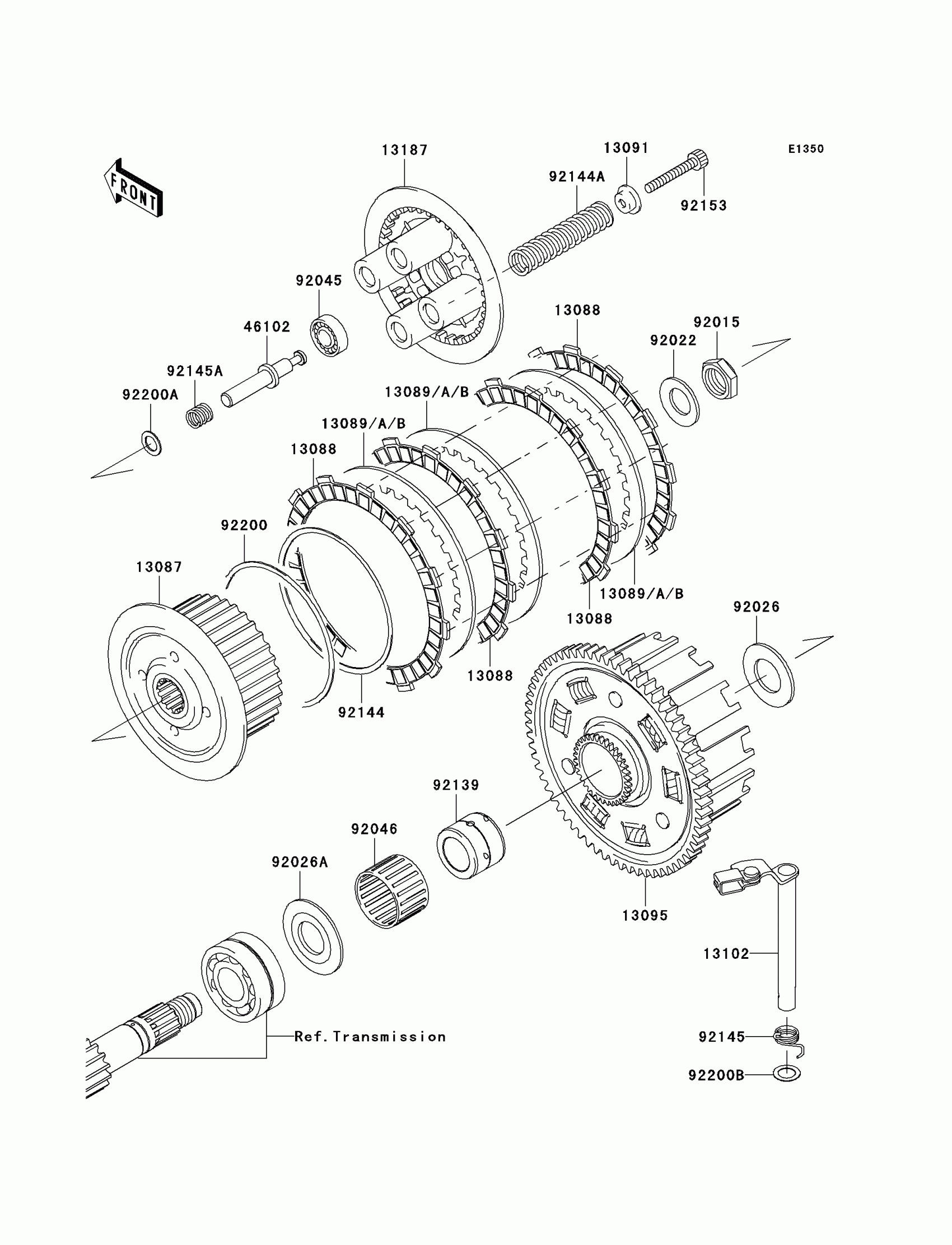

Kawasaki Z750S Clutch Diagram

#

Description
Price

13087

HUB-CLUTCH

13087-0006

$153.31

13088

PLATE-FRICTION

13088-1124

$13.84

13089

PLATE-CLUTCH,T=1.6

13089-013

$9.99

13089A

PLATE-CLUTCH,T=2.0

13089-1073

Unavailable

13089B

PLATE-CLUTCH,T=1.4

13089-1126

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1041

$9.30

13095

HOUSING-COMP-CLUTCH

13095-0012

$594.75

13102

RELEASE-COMP-CLUTCH

13102-0007

$68.93

13187

PLATE-CLUTCH OPERATING

13187-0003

$84.26

46102

ROD

46102-1449

$32.30

92015

NUT,20MM

92015-1555

$9.95

92022

WASHER,20.3X36X3.7

92022-1868

$7.25

92026

SPACER,25.5X47X2.5

92026-022

$9.58

92026A

SPACER

92026-1497

$10.83

92045

BEARING-BALL,6001C3ML01

92045-1235

$12.33

92046

BEARING-NEEDLE,K38X43X28.8X

92046-1263

$25.38

92139

BUSHING,25X38X29.05

92139-0067

$33.07

92144

SPRING,FRICTION PLATE

92144-1854

$6.78

92144A

SPRING,CLUTCH,WHITE

92144-1898

$10.39

92145

SPRING,CLUTCH RELEASE

92145-0066

$5.78

92145A

SPRING,ROD

92145-1159

$1.87

92153

BOLT

92153-0332

Unavailable

92200

WASHER,FRICTION PLATE

92200-1260

$7.83

92200A

WASHER,11.2X18X0.5

92200-1423

$2.19

92200B

WASHER,12X18.5X0.5

92200-1487

$1.95
