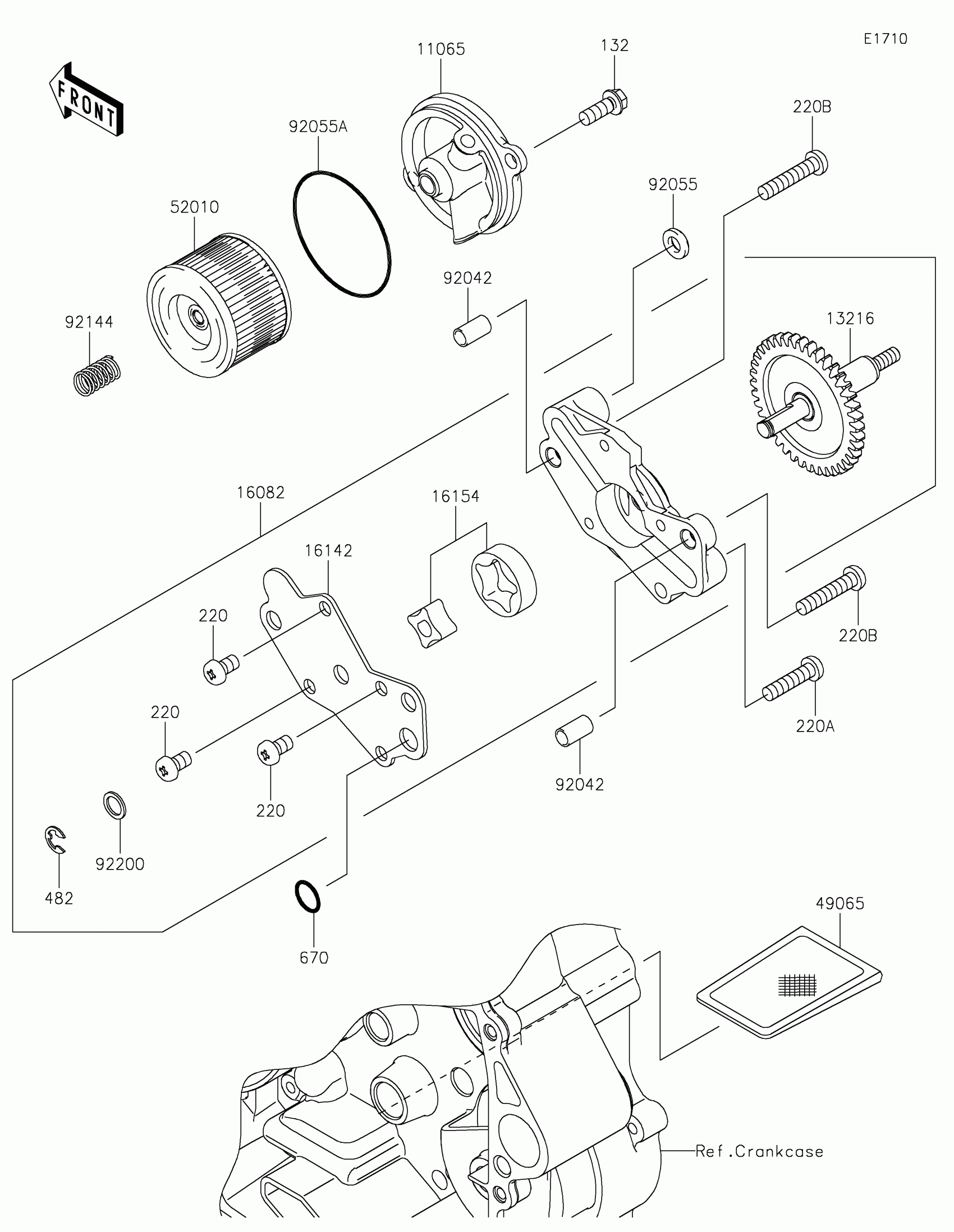

Kawasaki Z250SL (Indonesia Only) Oil Pump Diagram

Description

Price

11065

CAP,OIL FILTER

11065-0833

$67.91

132

BOLT-FLANGED-SMALL,6X16

132BB0616

$1.77

13216

GEAR-COMP,OIL PUMP

13216-0878

$120.53

16082

PUMP-ASSY-OIL

16082-0727

$177.13

16142

COVER-PUMP

16142-0713

$44.51

16154

ROTOR-PUMP

16154-0714

$36.37

220

SCREW-PAN-CROS,6X10

220AA0610

$2.58

220A

SCREW-PAN-CROS,6X25

220AA0625

$1.96

220B

SCREW-PAN-CROS,6X30

220AA0630

$2.79

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65

49065

FILTER-OIL

49065-1058

$9.70

52010

ELEMENT-OIL FILTER

52010-1053

$6.94

670

O RING,10MM

670D2010

$1.41

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92055

RING-O,OD=13

92055-074

$6.55

92055A

RING-O,52.6X2.4

92055-1577

$3.57

92144

SPRING

92144-1761

$3.54

92200

WASHER,8.5X12X1

92200-0890

$3.19
