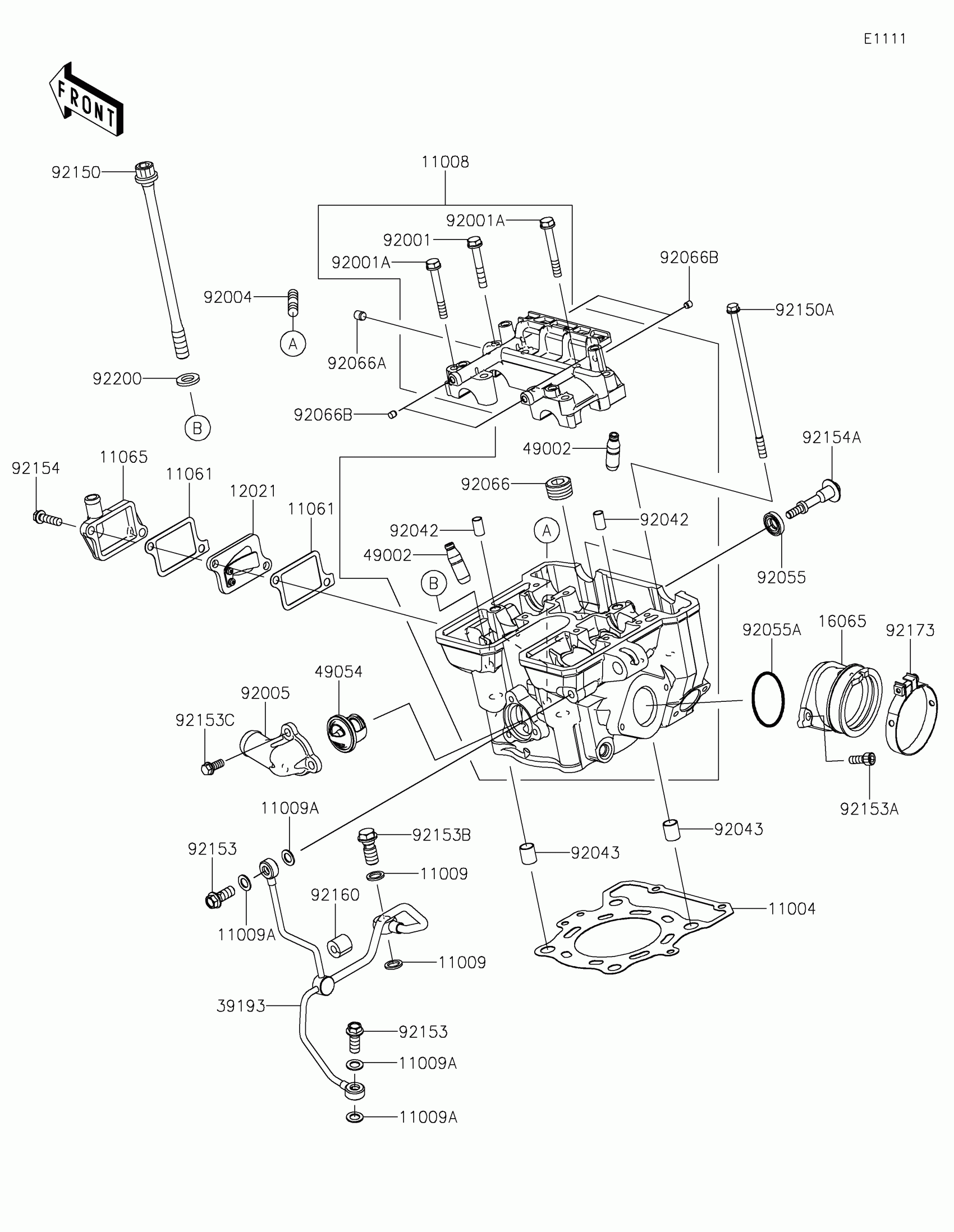

Kawasaki Z250SL (Indonesia Only) Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-1249

$41.51

11008

HEAD-COMP-CYLINDER

11008-0809

$959.99

11009

GASKET,10X14.5X1.5

11009-1105

$4.88

11009A

GASKET,8.2X14X1.0

11009-1344

$2.11

11061

GASKET,REED VALVE

11061-0890

$3.03

11065

CAP

11065-0293

$25.44

12021

VALVE-ASSY-REED

12021-1115

$49.12

16065

HOLDER-CARBURETOR

16065-0125

$54.31

39193

PIPE-OIL

39193-0580

$113.96

49002

GUIDE-VALVE

49002-1126

$30.63

49054

THERMOSTAT

49054-1053

$48.15

92001

BOLT,FLANGED,6X38

92001-1105

$3.57

92001A

BOLT,6X46

92001-1872

$3.29

92004

STUD,8X25

92004-0731

$3.15

92005

FITTING

92005-0778

$30.43

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,HEAD COVER BOLT

92055-0195

$7.66

92055A

RING-O,42X1.9

92055-1536

$1.96

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066B

PLUG

92066-1213

$4.22

92150

BOLT,10X165

92150-1368

$17.66

92150A

BOLT,6X135

92150-1552

$7.25

92153

BOLT,BANJO,8X20

92153-0651

$10.76

92153A

BOLT,SOCKET,6X16

92153-1344

$2.09

92153B

BOLT,BANJO,10X23

92153-1345

$9.93

92153C

BOLT

92153-1805

$2.15

92154

BOLT,FLANGED,6X22

92154-0504

$1.43

92154A

BOLT

92154-1230

$5.86

92160

DAMPER,6.3X15X14

92160-1523

$2.20

92173

CLAMP,58MM

92173-0927

$13.63

92200

WASHER,10.5X19X2.3

92200-1042

$2.99
