2017 Kawasaki Z250SL (Indonesia Only) Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2017 Kawasaki Z250SL (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

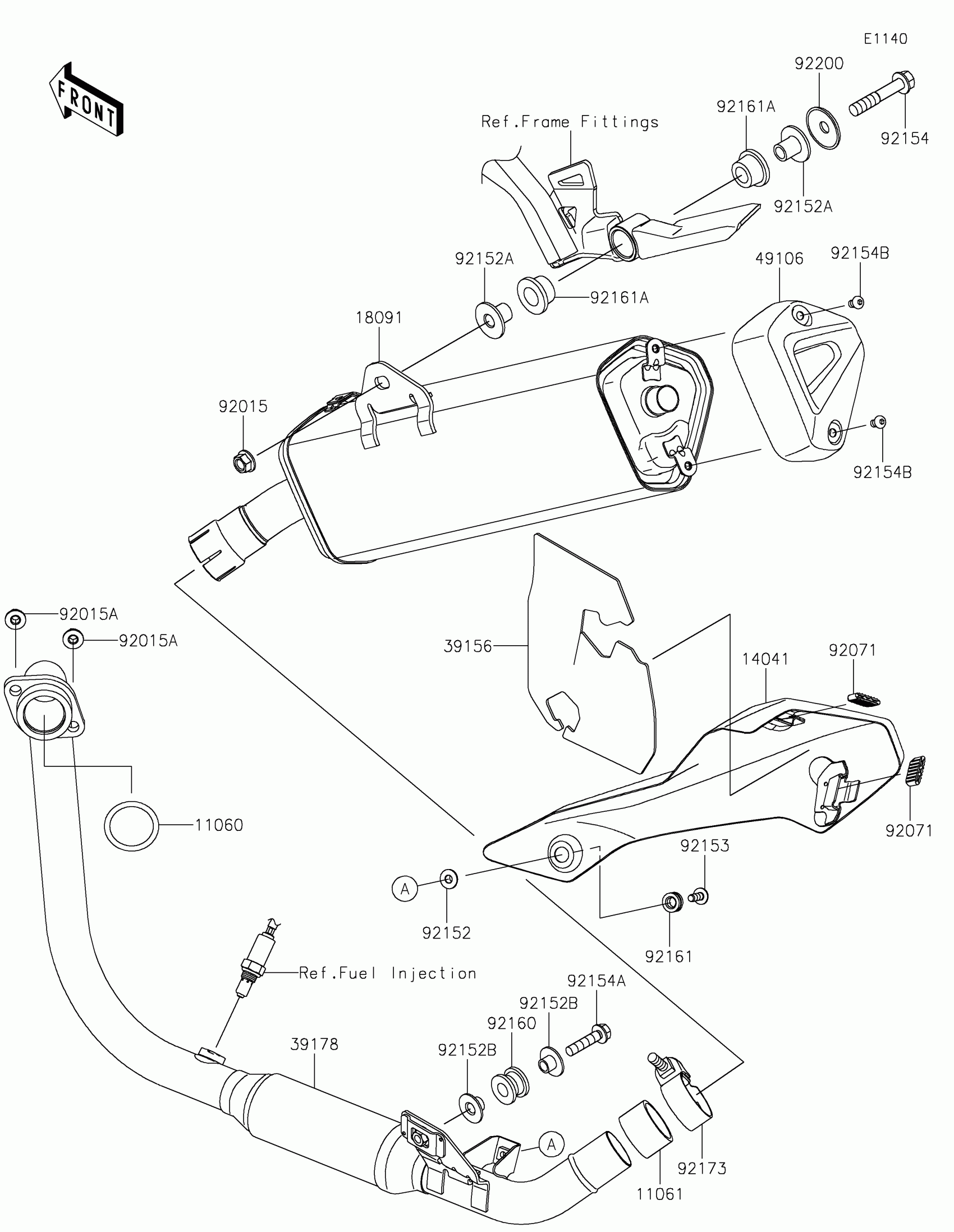

2017 Kawasaki Z250SL (Indonesia Only) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,EXHAUST PIPE

11060-1203

1

$8.56

In stock

11061

1

$24.71

In stock

14041

COVER-COMP

14041-0570

1

$201.34

In stock

18091

BODY-COMP-MUFFLER

18091-1097

1

$656.80

In stock

39156

PAD

39156-1948

1

$13.00

In stock

39178

1

$551.17

In stock

49106

COVER-MUFFLER,END

49106-0743

1

$76.95

In stock

92015

NUT,FLANGED,10MM

92015-1387

1

$3.43

In stock

92015A

NUT,8MM

92015-1432

1

$5.21

In stock

92071

GROMMET

92071-0727

1

$10.49

In stock

92152

COLLAR,6.3X8.3X16

92152-0286

1

$4.47

In stock

92152A

COLLAR

92152-1682

1
Out of stock

92152B

COLLAR

92152-1692

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-0817

1
Out of stock

92154

BOLT,FLANGED,10X55

92154-0070

1

$3.11

In stock

92154A

BOLT,FLANGED,8X35

92154-1298

1

$1.47

In stock

92154B

BOLT,SOCKET,6X10

92154-1726

1

$4.17

In stock

92160

1

$4.37

In stock

92161

DAMPER

92161-1475

1

$4.23

In stock

92161A

DAMPER

92161-1497

1

$2.68

In stock

92173

CLAMP,42MM

92173-0942

1

$13.32

In stock

92200

WASHER

92200-0904

1
Out of stock
