2017 Kawasaki Z250SL (Indonesia Only) Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2017 Kawasaki Z250SL (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

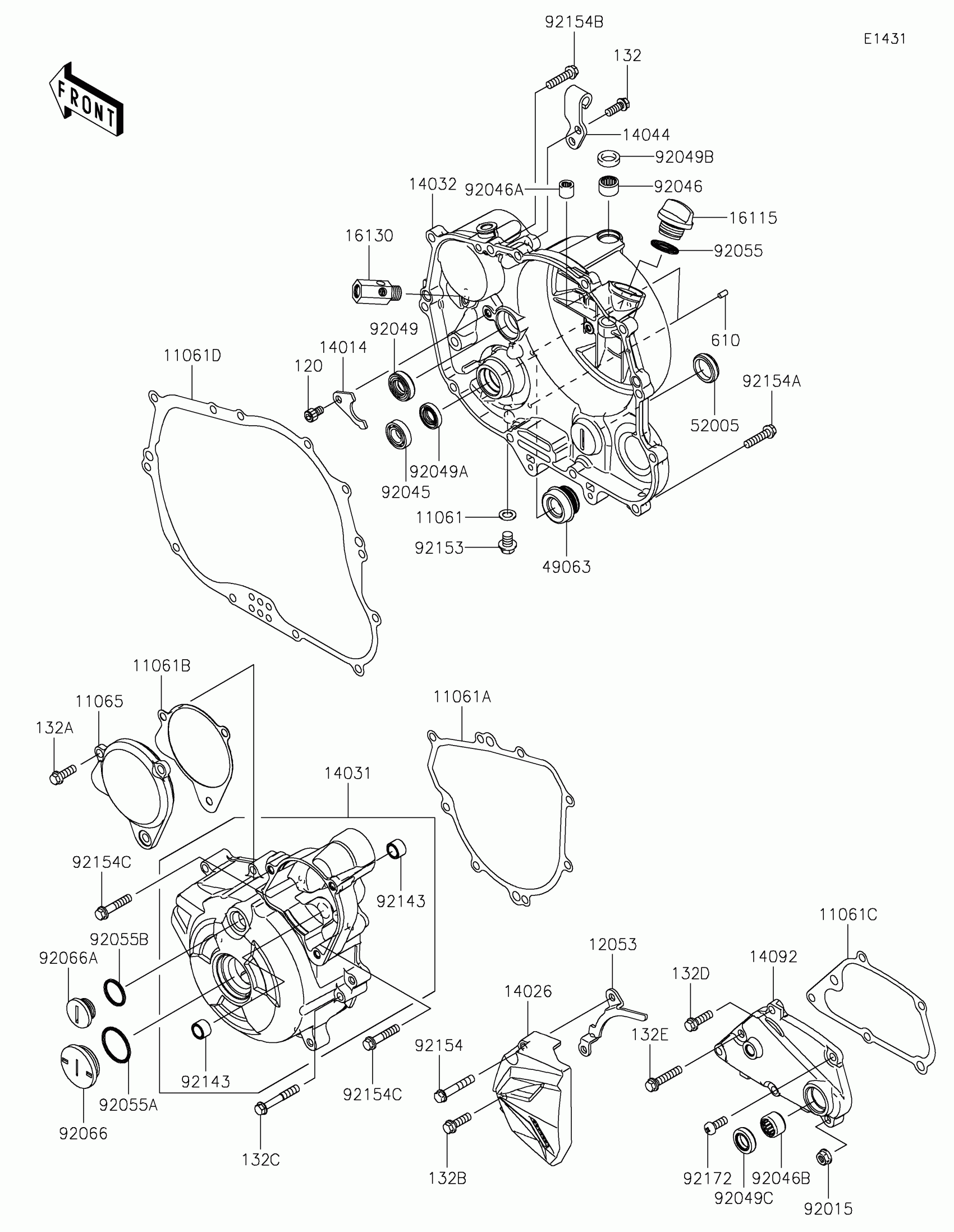

2017 Kawasaki Z250SL (Indonesia Only) Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,8.2X14X1.0

11061-0418

1
Out of stock

11061A

GASKET,GENERATOR COVER

11061-0891

1
Out of stock

11061B

GASKET,CAP

11061-0892

1
Out of stock

11061C

GASKET,TRANSMISSION COVER

11061-0897

1
Out of stock

11061D

GASKET,CLUTCH COVER INNER

11061-0923

1
Out of stock

11065

CAP,GENERATOR COVER

11065-0342

1
Out of stock

120

BOLT-SOCKET,6X10

120CA0610

1
Out of stock

12053

GUIDE-CHAIN

12053-0208

1
Out of stock

132

1

$2.05

In stock

14014

PLATE-POSITION

14014-0567

1

$8.12

In stock

14026

COVER-CHAIN

14026-0109

1

$32.33

In stock

14031

COVER-GENERATOR

14031-0585

1

$193.88

In stock

14032

COVER-CLUTCH

14032-0604

1

$275.77

In stock

14044

HOLDER-CABLE,CLUTCH

14044-0574

1
Out of stock

14092

COVER

14092-0108

1
Out of stock

16115

CAP-OIL FILLER

16115-1053

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-0002

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92045

BEARING-BALL,6901

92045-1246

1
Out of stock

92046

BEARING-NEEDLE,HK1210FM

92046-0034

1
Out of stock

92046A

BEARING-NEEDLE

92046-0042

1
Out of stock

92046B

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL

92049-1191

1
Out of stock

92049A

SEAL-OIL,SC 12X22X5

92049-1228

1
Out of stock

92049B

SEAL-OIL,AG0353-F0

92049-1262

1
Out of stock

92049C

SEAL-OIL

92049-1559

1
Out of stock

92055

RING-O

92055-012

1
Out of stock

92055A

RING-O,27.7X2.4

92055-091

1
Out of stock

92055B

RING-O,20X2

92055-1146

1
Out of stock

92066

PLUG

92066-0770

1
Out of stock

92066A

PLUG,COVER

92066-1163

1
Out of stock

92143

COLLAR

92143-1263

1
Out of stock

92153

BOLT,FLANGED,8X10

92153-1342

1
Out of stock

92154

BOLT,FLANGED,6X35

92154-1009

1
Out of stock

92154A

BOLT,FLANGED,6X25

92154-1010

1
Out of stock

92154B

BOLT,FLANGED,6X25

92154-1011

1
Out of stock

92154C

BOLT,FLANGED,6X30

92154-1080

1
Out of stock

92172

SCREW,6X16

92172-0223

1
Out of stock

132A

1

$3.69

In stock

132B

1

$3.18

In stock

132C

1

$4.25

In stock

132D

1

$0.94

In stock

132E

1

$1.81

In stock

610

ROLLER,4X8

610A0408

1
Out of stock
