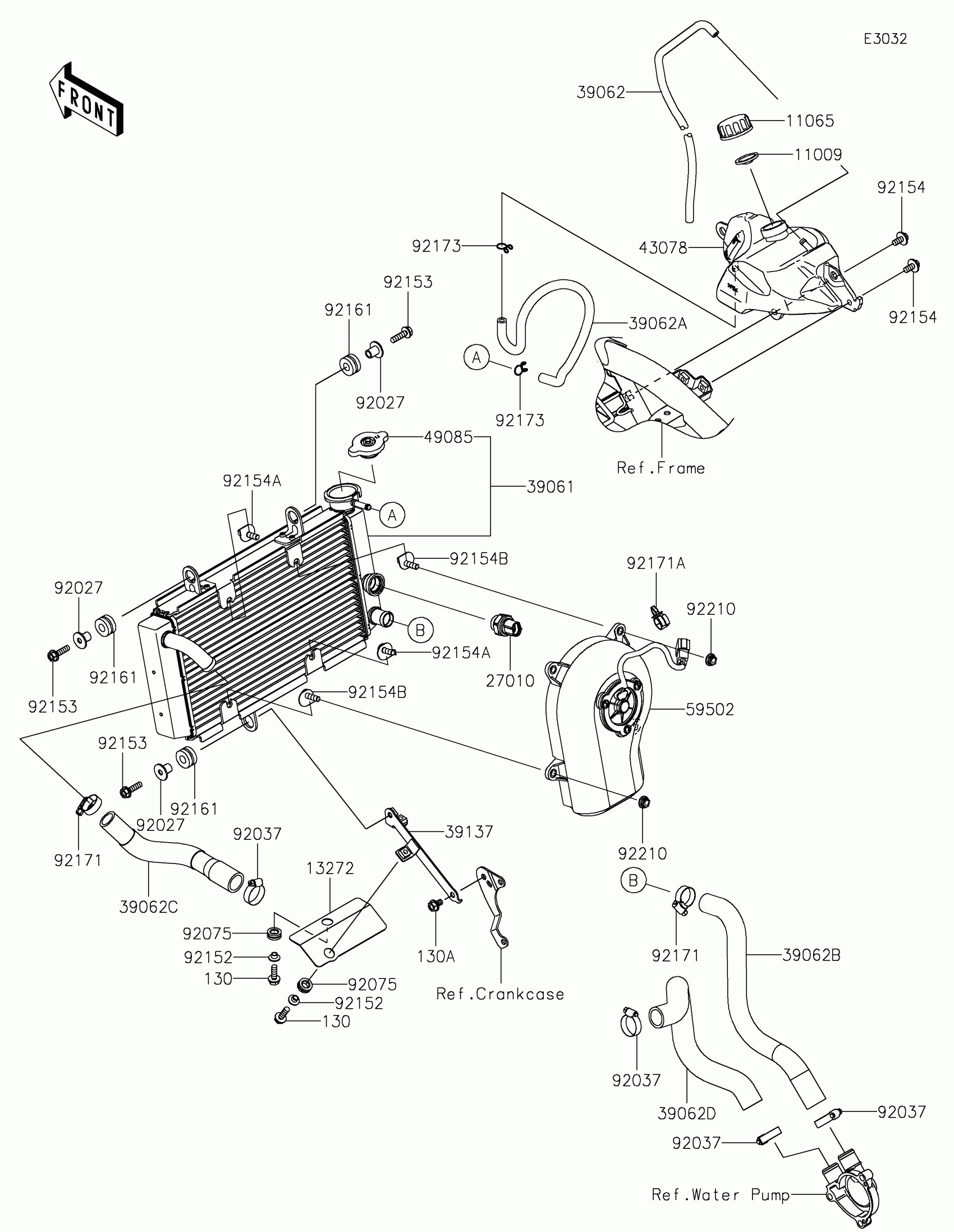

Kawasaki Z250SL (Indonesia Only) Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11065

CAP

11065-0969

$1.46

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,6X10

130BB0610

$1.77

13272

PLATE

13272-2065

$25.12

27010

SWITCH,THERMO

27010-0755

$73.15

39061

RADIATOR-ASSY

39061-0696

$505.43

39062

HOSE-COOLING,OVER FLOW

39062-0643

$10.19

39062A

HOSE-COOLING,RAD.-RESERVOIR

39062-0644

$7.15

39062B

HOSE-COOLING,RAD.-W/PUMP

39062-0724

$14.49

39062C

HOSE-COOLING,HEAD-RAD.

39062-0725

$11.12

39062D

HOSE-COOLING,W/PUMP-CYLINDER

39062-0726

$14.02

39137

STAY-COMP,RADIATOR

39137-0615

$11.02

43078

RESERVOIR

43078-0570

$41.42

49085

CAP-ASSY-PRESSURE

49085-0010

$45.30

59502

FAN-ASSY

59502-0622

$211.48

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92037

CLAMP,COOLING HOSE

92037-1589

$14.01

92075

DAMPER

92075-1947

$5.61

92152

COLLAR,6.3X8.3X16

92152-0286

$4.27

92153

BOLT,FLANGED,6X22

92153-1598

$1.81

92154

BOLT,FLANGED,WP,6X14

92154-1289

$0.93

92154A

BOLT

92154-1442

$1.69

92154B

BOLT

92154-1443

$2.46

92161

DAMPER,RADIATOR

92161-1648

$4.39

92171

CLAMP

92171-0338

$6.37

92171A

CLAMP,13MM DIA.

92171-1415

$1.69

92173

CLAMP

92173-1187

$4.61

92210

NUT

92210-0906

$1.49
