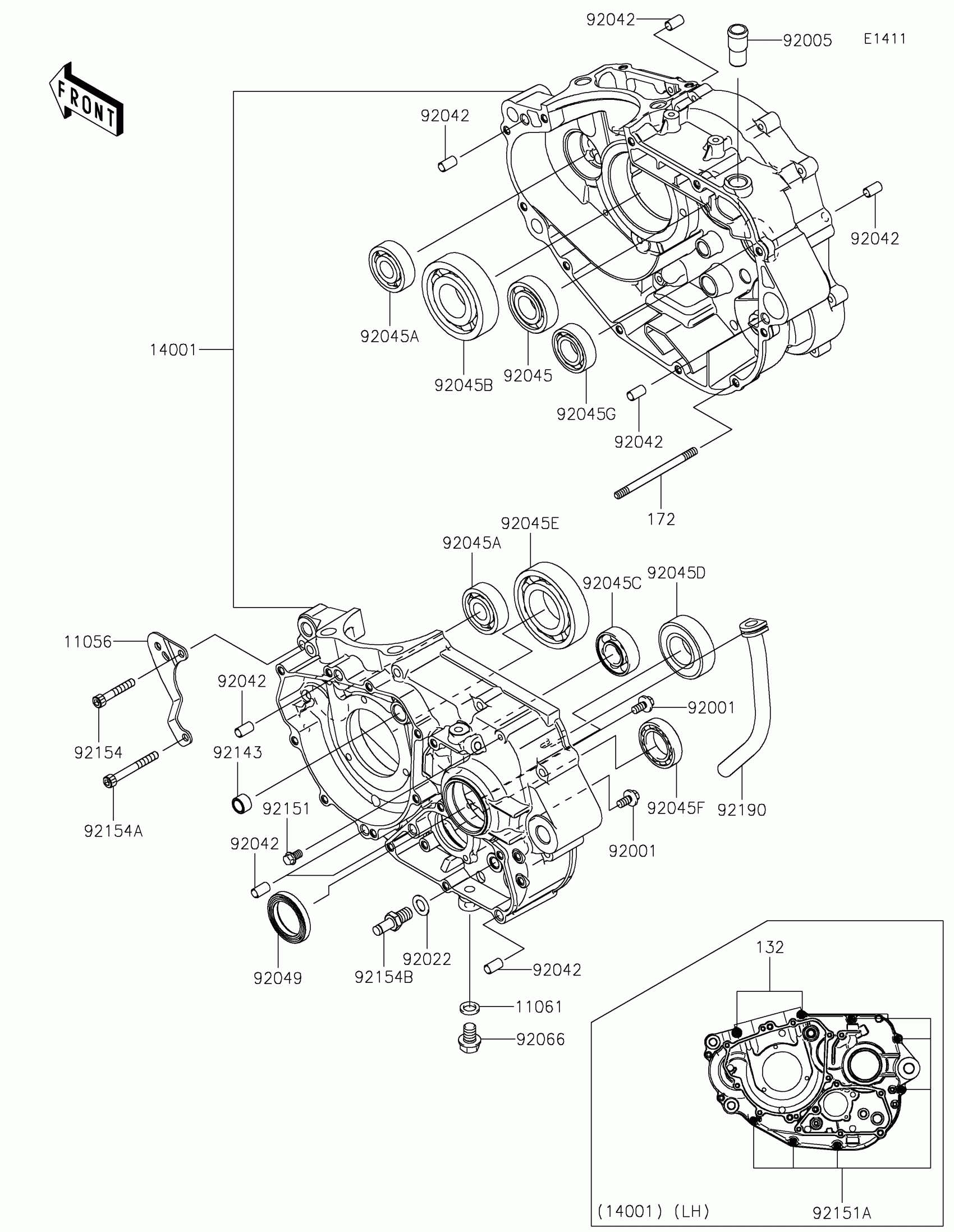

Find the part on the Crankcase diagram for your 2017 Kawasaki Z250SL (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Kawasaki Z250SL (Indonesia Only) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,RADIATOR

11056-7212

1
Out of stock

11061

GASKET,10.5X16X2

11061-0222

1
Out of stock

132

1

$3.51

In stock

14001

SET-CRANKCASE

14001-0619

1

$764.25

In stock

172

BOLT-STUD,6X80

172BA0680

1
Out of stock

92001

BOLT,W/WASHER,6X14

92001-1829

1
Out of stock

92005

FITTING,BREATHER

92005-0713

1
Out of stock

92022

WASHER,10.2X18X1.0,SK5

92022-1415

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92045

BEARING-BALL,20X47X14

92045-0752

1
Out of stock

92045A

BEARING-BALL,15X42X13

92045-0753

1
Out of stock

92045B

BEARING-BALL,30X72X19

92045-0754

1
Out of stock

92045C

BEARING-BALL,17X40X12

92045-0755

1
Out of stock

92045D

BEARING-BALL,25X52X15

92045-0756

1
Out of stock

92045E

BEARING-BALL,35X72X17

92045-0757

1
Out of stock

92045F

BEARING-BALL,25X42X9

92045-0761

1
Out of stock

92045G

BEARING-BALL,DG204012

92045-1414

1
Out of stock

92049

SEAL-OIL,TC32457

92049-1577

1
Out of stock

92066

PLUG,DRAIN

92066-0143

1
Out of stock

92143

COLLAR

92143-1263

1
Out of stock

92151

BOLT,FLANGED,6X10

92151-1233

1
Out of stock

92151A

BOLT,6X50

92151-1234

1
Out of stock

92154

BOLT,SOCKET,6X37

92154-1244

1
Out of stock

92154A

BOLT,SOCKET,6X52

92154-1245

1
Out of stock

92154B

BOLT,RETURN SPRING

92154-1306

1
Out of stock

92190

TUBE

92190-1493

1
Out of stock
