2018 Kawasaki Z250SL ABS Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

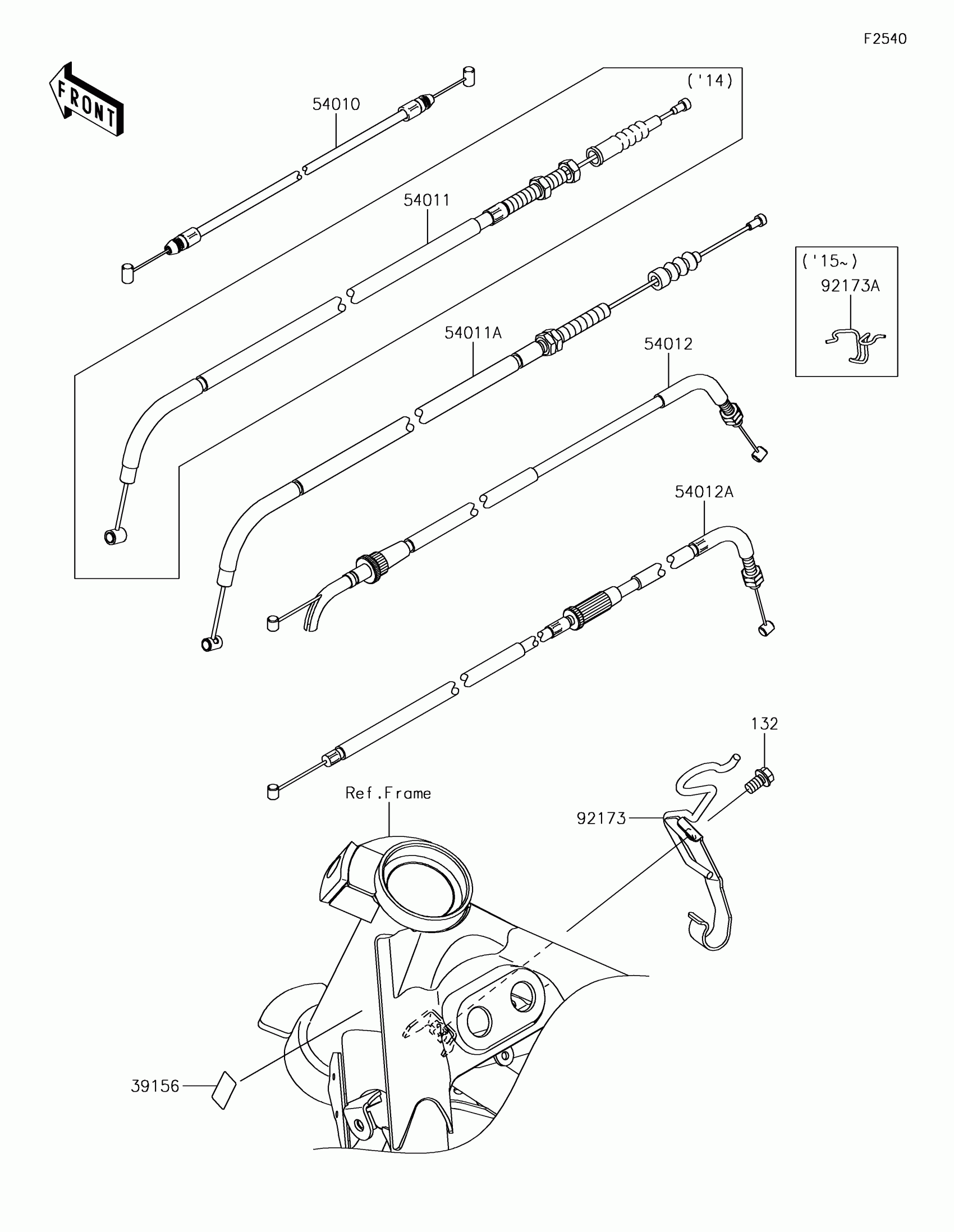

2018 Kawasaki Z250SL ABS Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.05

In stock

39156

PAD,10X25

39156-0721

1

$2.94

In stock

54010

CABLE,SEAT LOCK

54010-0598

1

$15.39

In stock

54011A

CABLE-CLUTCH

54011-0609

1
Out of stock

54012

CABLE-THROTTLE,PULL

54012-0603

1

$36.58

In stock

54012A

1

$36.58

In stock

92173

CLAMP

92173-1169

1

$7.75

In stock

92173A

CLAMP,THROTTLE CABLE

92173-1591

1
Out of stock
← Rear Master Cylinder Front Fork →
