2018 Kawasaki Z250SL ABS Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

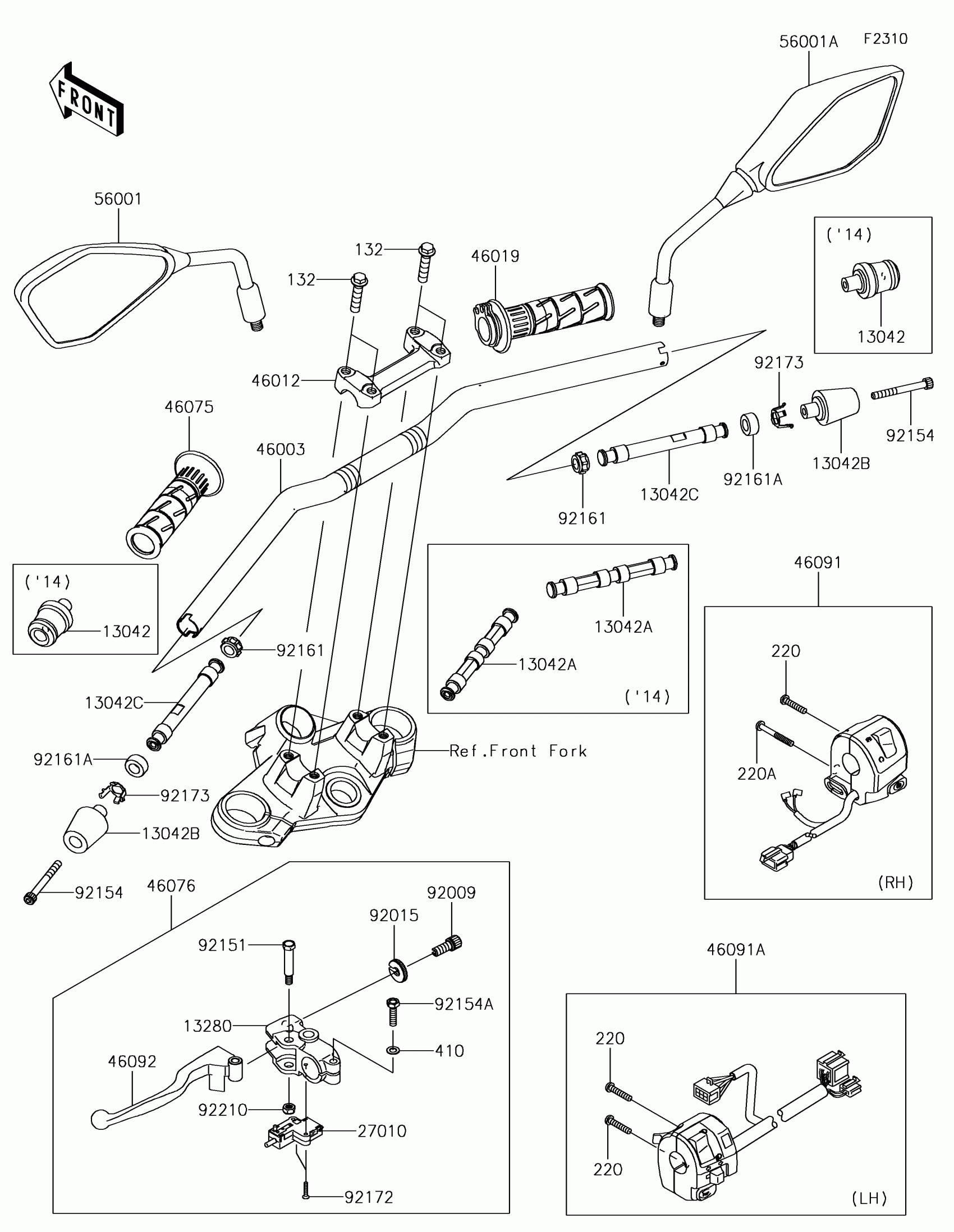

2018 Kawasaki Z250SL ABS Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042B

WEIGHT,HANDLE,END

13042-0725

1
Out of stock

13042C

1

$44.36

In stock

132

1

$3.78

In stock

13280

HOLDER,CLUTCH LEVER

13280-0105

1

$33.97

In stock

220

1

$2.92

In stock

220A

1

$1.73

In stock

27010

SWITCH,CLUTCH

27010-0729

1

$30.28

In stock

410

1

$0.80

In stock

46003

HANDLE

46003-0645

1

$125.80

In stock

46012

1

$52.17

In stock

46019

GRIP-ASSY,THROTTLE

46019-0043

1

$20.32

In stock

46075

GRIP,LH

46075-0007

1

$7.31

In stock

46076

1

$66.53

In stock

46091

1

$148.05

In stock

46091A

1

$206.78

In stock

46092

LEVER-GRIP,CLUTCH

46092-0050

1

$5.14

In stock

56001

MIRROR-ASSY,LH

56001-0243

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-0244

1
Out of stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92151

BOLT,LEVER SET

92151-1986

1

$4.93

In stock

92154

BOLT,SOCKET,6X55

92154-1299

1

$2.25

In stock

92154A

BOLT,UPSET,6X22

92154-1422

1

$4.17

In stock

92161

DAMPER,10X20X10,IN

92161-1600

1

$1.32

In stock

92161A

DAMPER,10X20X10,OUT

92161-1741

1

$5.47

In stock

92172

SCREW,3X16

92172-0788

1

$1.51

In stock

92173

CLAMP,WEIGHT

92173-1386

1

$2.44

In stock

92210

NUT,LOCK,6MM

92210-0006

1
Out of stock
