2018 Kawasaki Z250SL ABS Rear Hub Diagram

← All diagrams

Find the part on the Rear Hub diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

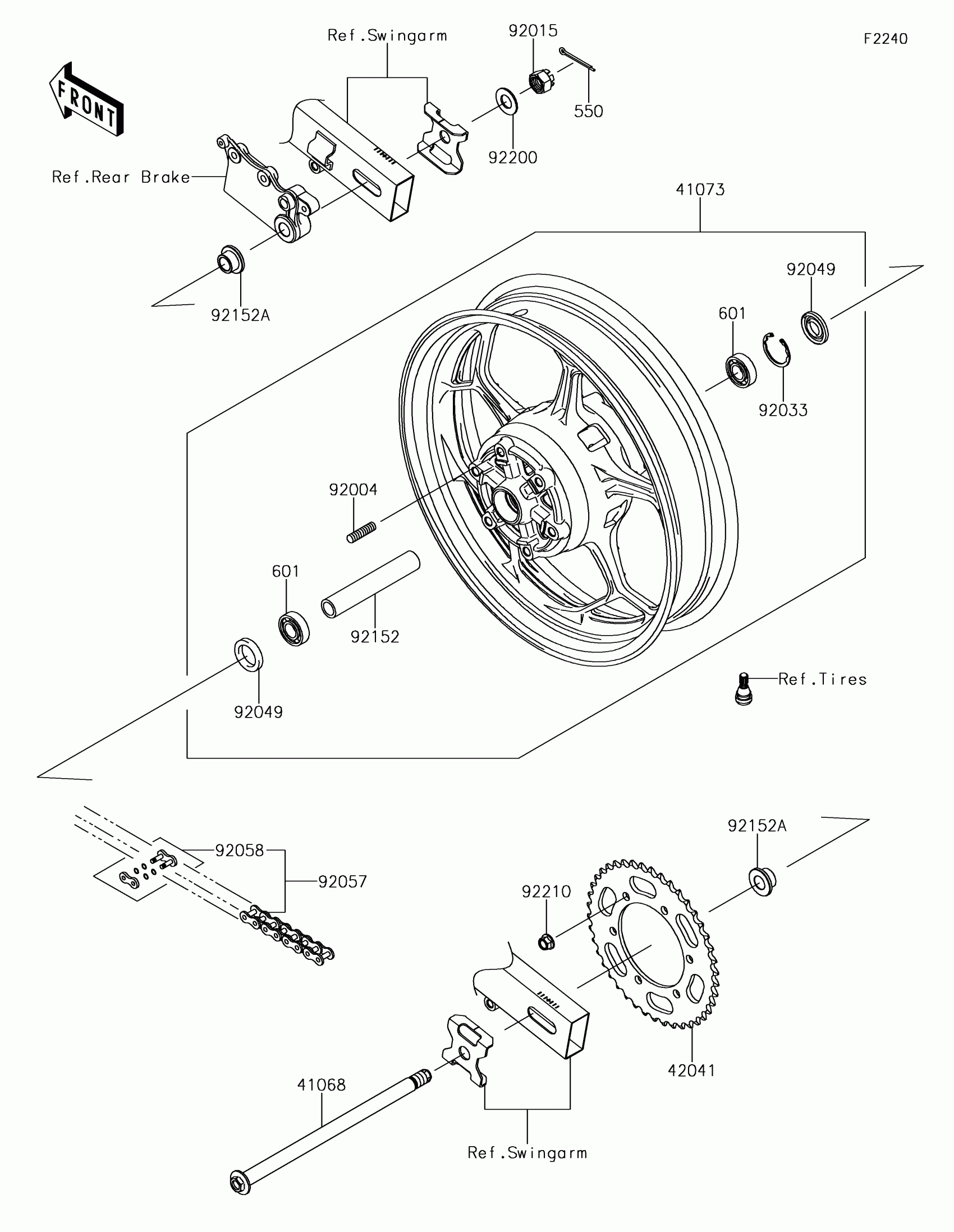

2018 Kawasaki Z250SL ABS Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR

41068-1223

1
Out of stock

41073

WHEEL-ASSY,RR,G.BLACK

41073-0611-QT

1
Out of stock

42041

SPROCKET-HUB,42T

42041-0129

1
Out of stock

550

PIN-COTTER,4.0X35

550AA4035

1
Out of stock

601

BEARING-BALL,#6203UUC3

601B6203UU

1
Out of stock

92004

STUD,10X19

92004-0048

1
Out of stock

92015

NUT,CASTLE,16MM

92015-1947

1
Out of stock

92033

RING-SNAP,40MM

92033-1040

1
Out of stock

92049

SEAL-OIL

92049-0746

1
Out of stock

92057

CHAIN,DRIVE,EK520MVXLX104L

92057-0213

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-0021

1
Out of stock

92152

COLLAR,17.1X24X141

92152-1759

1
Out of stock

92152A

COLLAR,17X24X16

92152-1760

1
Out of stock

92200

WASHER,17.5X34X2

92200-1687

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock
