2018 Kawasaki Z250SL ABS Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2018 Kawasaki Z250SL ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

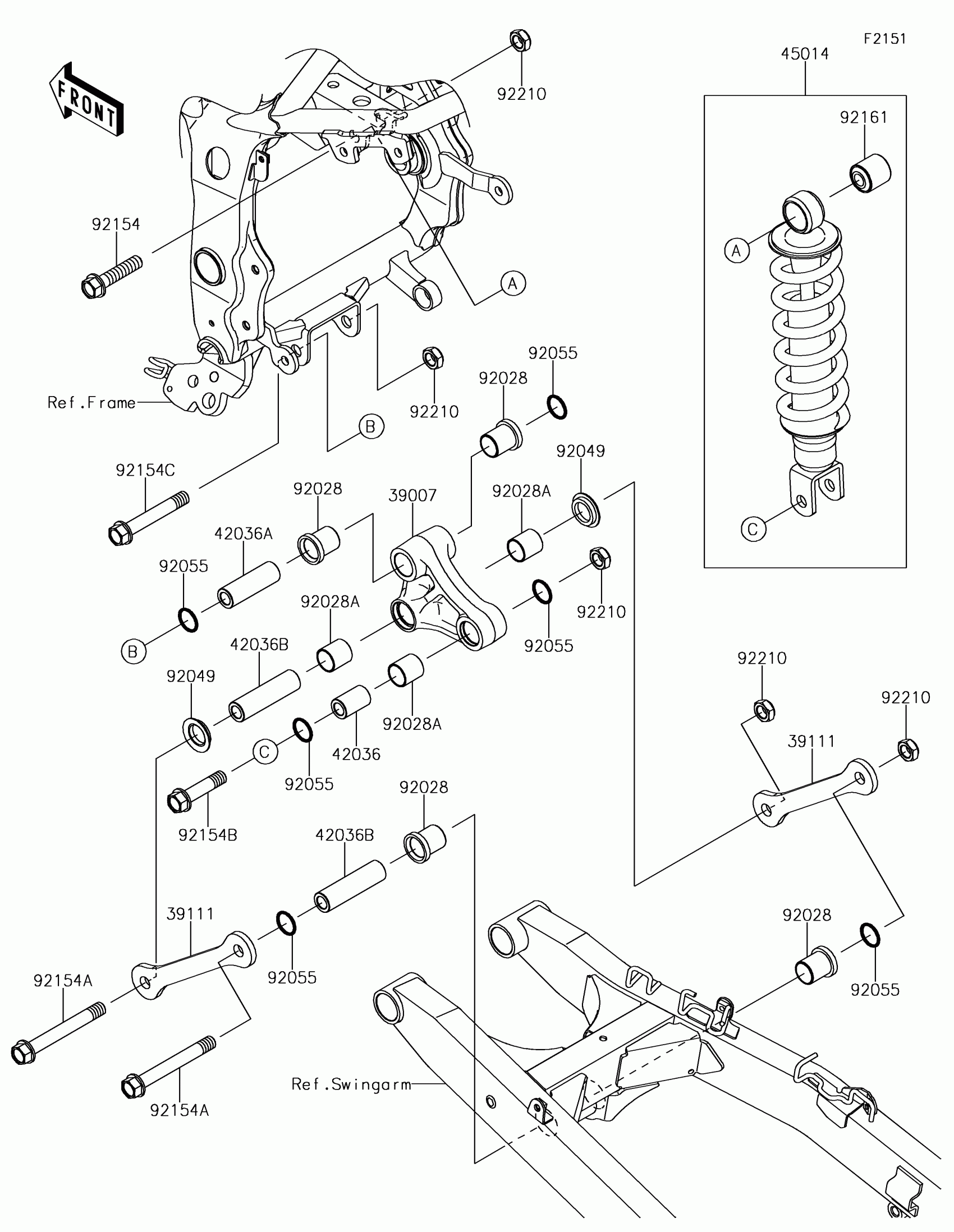

2018 Kawasaki Z250SL ABS Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-0376

1
Out of stock

39111

ROD-TIE,SUSPENSION

39111-0327

1
Out of stock

42036

SLEEVE,12.1X20X32

42036-1077

1
Out of stock

42036A

SLEEVE,ARM,FR

42036-1078

1
Out of stock

42036B

SLEEVE,12.1X20X74

42036-1102

1
Out of stock

45014

SHOCKABSORBER,P.WHITE

45014-0430-EH

1
Out of stock

92028

BUSHING

92028-1597

1
Out of stock

92028A

BUSHING

92028-1598

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92055

RING-O,19.8X2.2

92055-0732

1
Out of stock

92154

BOLT,FLANGED,12X55

92154-0362

1
Out of stock

92154A

BOLT,FLANGED,12X98

92154-0941

1
Out of stock

92154B

BOLT,FLANGED,12X52

92154-0942

1
Out of stock

92154C

BOLT,FLANGED,12X80

92154-1308

1
Out of stock

92161

DAMPER,12.1X17X30

92161-1510

1
Out of stock

92210

NUT,LOCK,12MM

92210-1247

1
Out of stock
