1978 Kawasaki Z1R Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1978 Kawasaki Z1R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

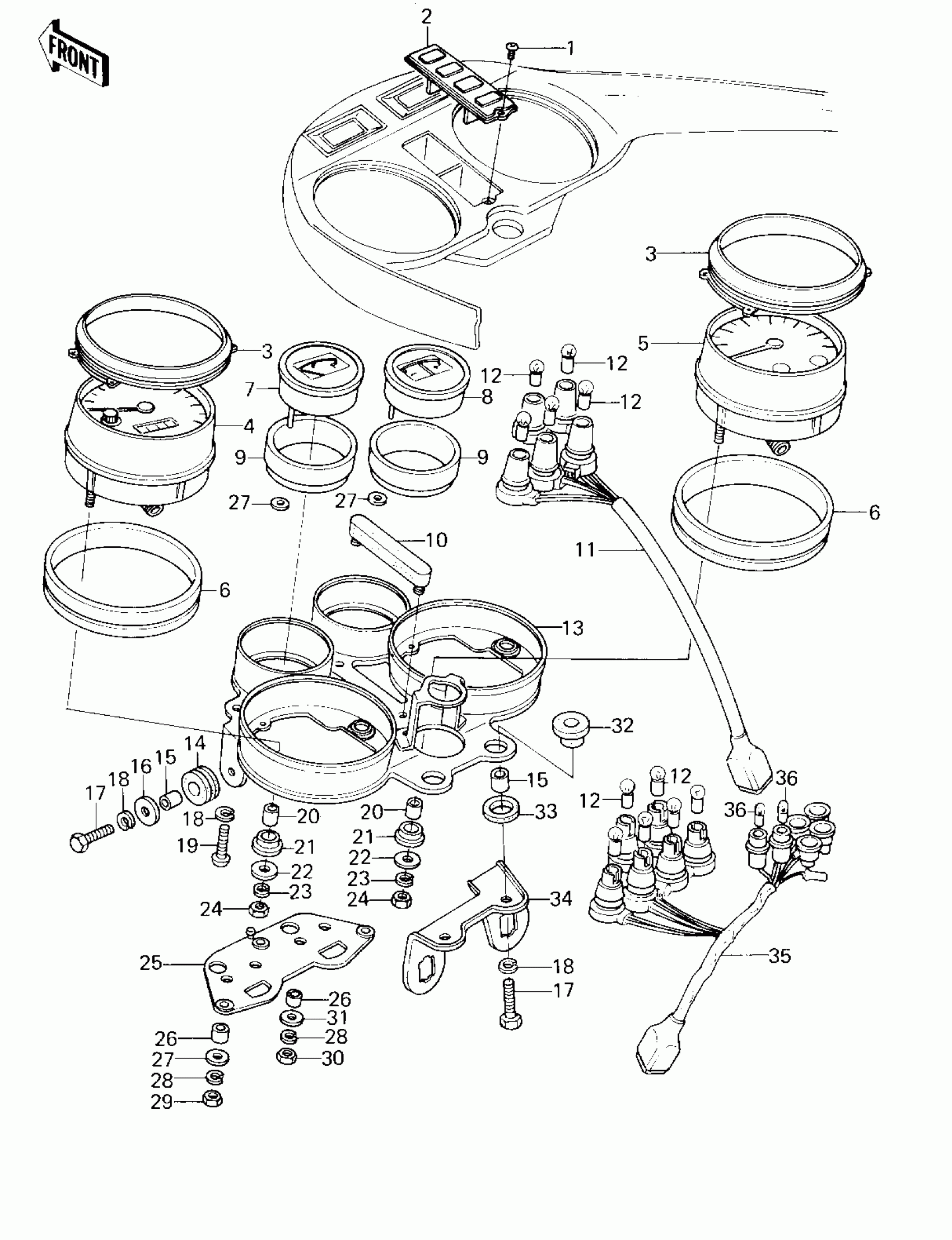

1978 Kawasaki Z1R Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SCREW,TAPPING,3X12

92009-1028

1
Out of stock

2

COVER,METER INDICATE

25023-1004

1
Out of stock

3

DAMPER RUBBER,METER

92075-1049

1
Out of stock

4

SPEEDOMETER ASSY,MPH

25005-1022

1
Out of stock

4

SPEEDOMETER ASSY,KPH (Canada)

25005-1023

1
Out of stock

5

TACHOMETER ASSY

25015-1014

1
Out of stock

6

DAMPER RUBBER,METER

92075-1050

1
Out of stock

7

METER,FUEL GAUGE

28011-1001

1
Out of stock

8

METER,AMMETER

28011-1002

1
Out of stock

9

DAMPER RUBBER,METER

92075-1051

1
Out of stock

10

DAMPER RUBBER,METER

92075-1053

1
Out of stock

11

SOCKET ASY,METR INDI

23008-1021

1
Out of stock

12

BULB 12V 3W

92069-018

1
Out of stock

13

BRACKET,METER

25008-1008

1
Out of stock

14

DAMPER

92075-1035

1
Out of stock

15

COLLAR,6.8X10X14.5

92027-156

1
Out of stock

16

WASHER,7X24X1.6

92022-228

1
Out of stock

17

BOLT-UPSET

112G0625

1
Out of stock

18

WASHER SPRING 6MM

461F0600

1
Out of stock

19

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

20

COLLAR,METER

92027-211

1
Out of stock

21

RUBBER,METER

92075-172

1
Out of stock

22

WASHER,PLAIN,5MM

92022-241

1
Out of stock

23

WASHER SPRING 5MM

461F0500

1
Out of stock

24

NUT-HEX,5MM

312B0500

1
Out of stock

25

DAMPER RUBBER,METER

92075-1052

1
Out of stock

26

COLLAR

92027-1075

1
Out of stock

27

WASHER,PLAIN

92022-1052

1
Out of stock

28

WASHER SPRING 4MM

461F0400

1
Out of stock

29

NUT-HEX

311B0400

1
Out of stock

30

NUT-HEX

311B0400

1
Out of stock

31

WASHER,PLAIN

92022-1051

1
Out of stock

32

DAMPER RUBBER

92075-1036

1
Out of stock

33

DAMPER RUBBER

92075-1037

1
Out of stock

34

BRACKET

11034-1149

1
Out of stock

35

SOCKET ASSY,METER

23008-1020

1
Out of stock

36

BULB,12V2W

92069-1003

1
Out of stock
