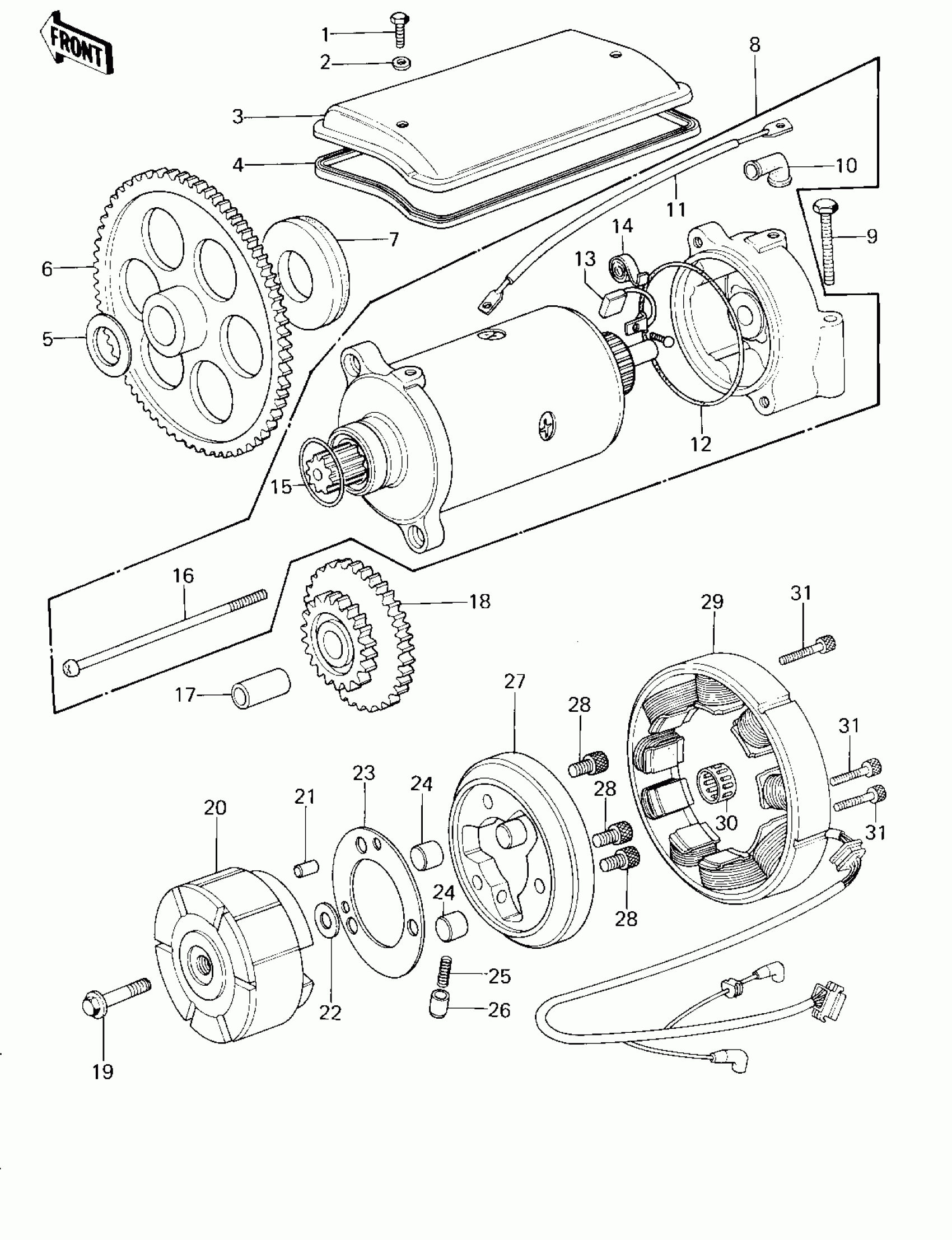

Kawasaki Z1R GENERATOR/STARTER MOTOR ('78 D1) Diagram

#

Description
Price

1

BOLT (6X10)

110R0610

$2.69

2

WASHER,PLAIN,6MM

410D0600

Unavailable

3

COVER,STARTING MOTOR

21165-001

Unavailable

4

GASKET,STARTER COVER

21166-001

$37.40

5

WASHER 22.1X30.7X2.0

92026-091

Unavailable

6

GEAR,STARTING CLUTCH

21167-003

Unavailable

7

DAMPER RUBBER 6.3T

92075-192

Unavailable

7

DAMPER RUBBER 7.3T

92075-193

Unavailable

7

DAMPER RUBBER 8.3T

92075-194

Unavailable

8

STARTER-ELECTRIC

21163-1019

$639.91

9

BOLT,EXCLUSIVE

92001-1456

$4.34

10

GROMMET,STARTER TERMINAL

21017-017

$7.18

11

WIRE,STARTER MOTOR

26010-055

$28.98

12

RING-O,STARTER MOTOR

21027-003

Unavailable

13

BRUSH,CARBON

21039-003

$42.66

14

SPRING-BRUSH

21040-003

Unavailable

15

RING-O,STARTER MOTOR,25MM

21027-004

$7.54

16

SCREW,PAN HEAD,5X110

21015-005

$9.86

17

PIN

13002-007

$17.07

18

GEAR-SPUR,STARTER MOTOR

21167-002

Unavailable

19

BOLT,10X40

92001-1201

$8.10

20

ROTOR

21007-1005

$1,300.00

21

PIN,DOWEL,6X22

551A0622

Unavailable

22

SPACER,22X35.5X1.0

92026-092

$11.92

23

PLATE,CLUTCH STARTER

92026-112

Unavailable

24

ROLLER,15X14.4

92122-001

$8.82

25

SPRING

92081-110

$3.63

26

PIN

92043-087

$9.70

27

CLUTCH-ASSY-ONEWAY

13193-1006

$182.70

28

BOLT-SOCKET,8X16

120P0816

Unavailable

29

STATOR ASSY

21076-023

Unavailable

30

NEEDLE BEARING, K222620

92046-033

Unavailable

31

BOLT-SOCKET,6X35,BLACK

120S0635

Unavailable
