1978 Kawasaki Z1R Battery Case/electro Bracket Diagram

← All diagrams

Find the part on the Battery Case/electro Bracket diagram for your 1978 Kawasaki Z1R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

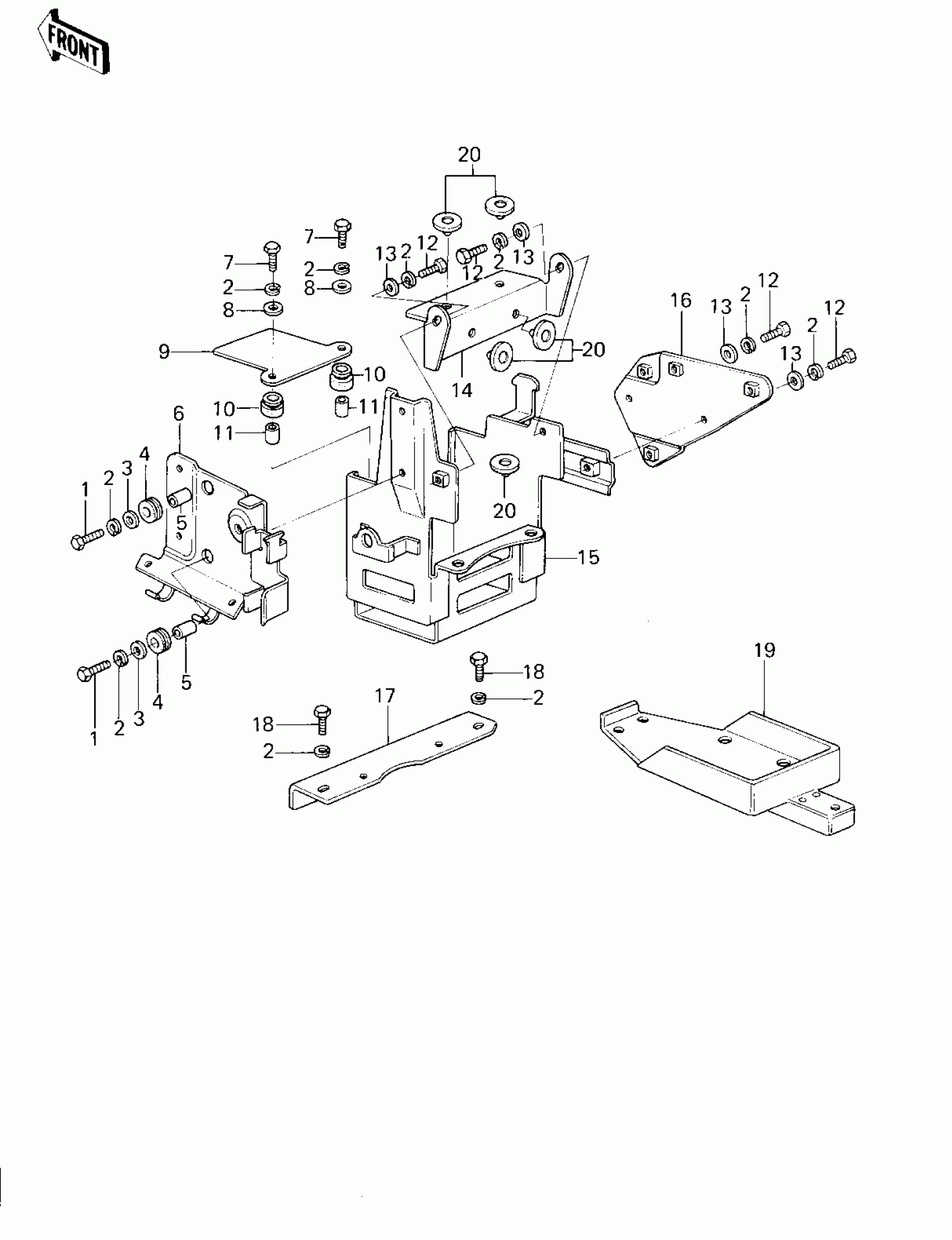

1978 Kawasaki Z1R Battery Case/electro Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-UPSET,6X20

112G0620

1
Out of stock

2

WASHER SPRING 6MM

461F0600

1
Out of stock

3

WASHER,6.5X22X1.6

92022-237

1
Out of stock

4

DAMPER RUBBER

92075-149

1
Out of stock

5

COLLAR

92027-165

1
Out of stock

6

BRACKET,BATTERY CASE

11034-1133

1
Out of stock

7

BOLT-UPSET

112G0630

1
Out of stock

8

WASHER,6.5X16X2

92022-1565

1
Out of stock

9

STAY,AIR CLEANER

32105-007

1
Out of stock

10

DAMPER RUBBER,BTT CA

92075-146

1
Out of stock

11

COLLAR,6.8X10X14.5

92027-156

1
Out of stock

12

BOLT-UPSET,6X12

112G0612

1
Out of stock

13

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

14

BAND,BATTERY

32100-100

1
Out of stock

15

CASE,BATTERY

32097-1007

1
Out of stock

16

BRACKET,BASE,R.H

11034-1732

1
Out of stock

17

PLATE,BATTERY CASE

13169-1077

1
Out of stock

18

BOLT-UPSET,6X16

112G0616

1
Out of stock

19

CASE,TOOL

32098-1001

1
Out of stock

20

DAMPER,RUBBER

92075-078

1
Out of stock
