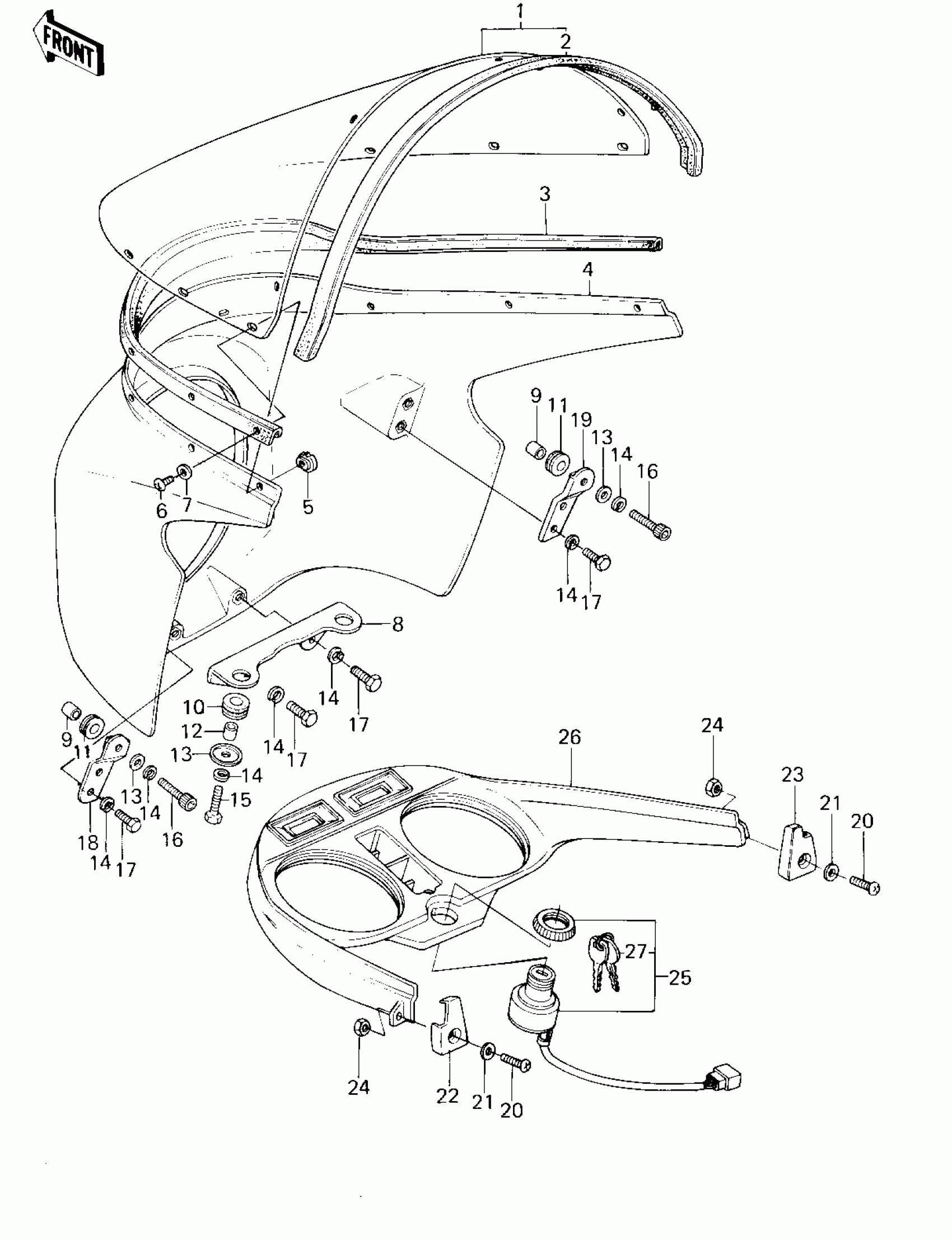

Find the part on the Fairing/ignition Switch diagram for your 1978 Kawasaki Z1R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Kawasaki Z1R Fairing/ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WINDSHIELD

39155-1001

1

$672.94

In stock

2

TRIM

53044-1003

1

$25.46

In stock

3

TRIM

53044-1002

1

$37.76

In stock

4

COWLING,M.S.SILVER

55028-1001-7W

1
Out of stock

5

NUT,5M/M

92015-1025

1
Out of stock

6

SCREW-PAN-CROS,5X12,BLACK

220C0512

1
Out of stock

7

WASHER,5.3X10X0.8

92022-1038

1
Out of stock

8

BRACKET,LOWER

11034-1124

1
Out of stock

9

COLLAR

92027-241

1
Out of stock

10

GROMMET

92071-1011

1
Out of stock

11

GROMMET

92071-1010

1
Out of stock

12

COLLAR 6.8X10X10.5

92027-120

1
Out of stock

13

WASHER,PLAIN,6MM

92022-286

1
Out of stock

14

WASHER SPRING 6MM

461F0600

1
Out of stock

15

BOLT-UPSET,6X20

112G0620

1
Out of stock

16

BOLT-SOCKET,6X25

120P0625

1
Out of stock

17

BOLT-UPSET 6X14

112B0614

1
Out of stock

18

BRACKET,L.H.UPPER

11034-1122

1
Out of stock

19

BRACKET,R.H.UPPER

11034-1123

1
Out of stock

20

SCREW-PAN-CROS

220B0512

1
Out of stock

21

WASHER PLAIN 5MM

410B0500

1
Out of stock

22

CAP,L.H.

11012-1025

1
Out of stock

23

CAP,R.H.

11012-1026

1
Out of stock

24

NUT,5M/M

92015-1025

1
Out of stock

25

SWITCH ASSY,IGNITION

27005-5005

1
Out of stock

26

COVER,METER CASE

25023-1002

1
Out of stock

27

KEY SET,#801

27008-1004-01

1
Out of stock

27

KEY SET,#802

27008-1004-02

1
Out of stock

27

KEY SET,#803

27008-1004-03

1
Out of stock

27

KEY SET,#804

27008-1004-04

1
Out of stock

27

KEY SET,#805

27008-1004-05

1
Out of stock

27

KEY SET,#806

27008-1004-06

1
Out of stock

27

KEY SET,#807

27008-1004-07

1
Out of stock

27

KEY SET,#808

27008-1004-08

1
Out of stock

27

KEY SET,#809

27008-1004-09

1
Out of stock

27

KEY SET,#810

27008-1004-10

1
Out of stock

27

KEY SET,#811

27008-1004-11

1
Out of stock

27

KEY SET,#812

27008-1004-12

1
Out of stock

27

KEY SET,#813

27008-1004-13

1
Out of stock

27

KEY SET,#814

27008-1004-14

1
Out of stock

27

KEY SET,#815

27008-1004-15

1
Out of stock

27

KEY SET,#816

27008-1004-16

1
Out of stock

27

KEY SET,#817

27008-1004-17

1
Out of stock

27

KEY SET,#818

27008-1004-18

1
Out of stock

27

KEY SET,#819

27008-1004-19

1
Out of stock

27

KEY SET,#820

27008-1004-20

1
Out of stock

27

KEY SET,#821

27008-1004-21

1
Out of stock

27

KEY SET,#822

27008-1004-22

1
Out of stock

27

KEY SET,#823

27008-1004-23

1
Out of stock

27

KEY SET,#824

27008-1004-24

1
Out of stock

27

KEY SET,#825

27008-1004-25

1
Out of stock

27

KEY SET,#826

27008-1004-26

1
Out of stock

27

KEY SET,#827

27008-1004-27

1
Out of stock

27

KEY SET,#828

27008-1004-28

1
Out of stock

27

KEY SET,#829

27008-1004-29

1
Out of stock

27

KEY SET,#830

27008-1004-30

1
Out of stock

27

KEY SET,#831

27008-1004-31

1
Out of stock

27

KEY SET,#832

27008-1004-32

1
Out of stock

27

KEY SET,#833

27008-1004-33

1
Out of stock

27

KEY SET,#834

27008-1004-34

1
Out of stock

27

KEY SET,#835

27008-1004-35

1
Out of stock

27

KEY SET,#836

27008-1004-36

1
Out of stock

27

KEY SET,#837

27008-1004-37

1
Out of stock

27

KEY SET,#838

27008-1004-38

1
Out of stock

27

KEY SET,#839

27008-1004-39

1
Out of stock

27

KEY SET,#840

27008-1004-40

1
Out of stock

27

KEY SET,#841

27008-1004-41

1
Out of stock

27

KEY SET,#842

27008-1004-42

1
Out of stock

27

KEY SET,#843

27008-1004-43

1
Out of stock

27

KEY SET,#844

27008-1004-44

1
Out of stock

27

KEY SET,#845

27008-1004-45

1
Out of stock
