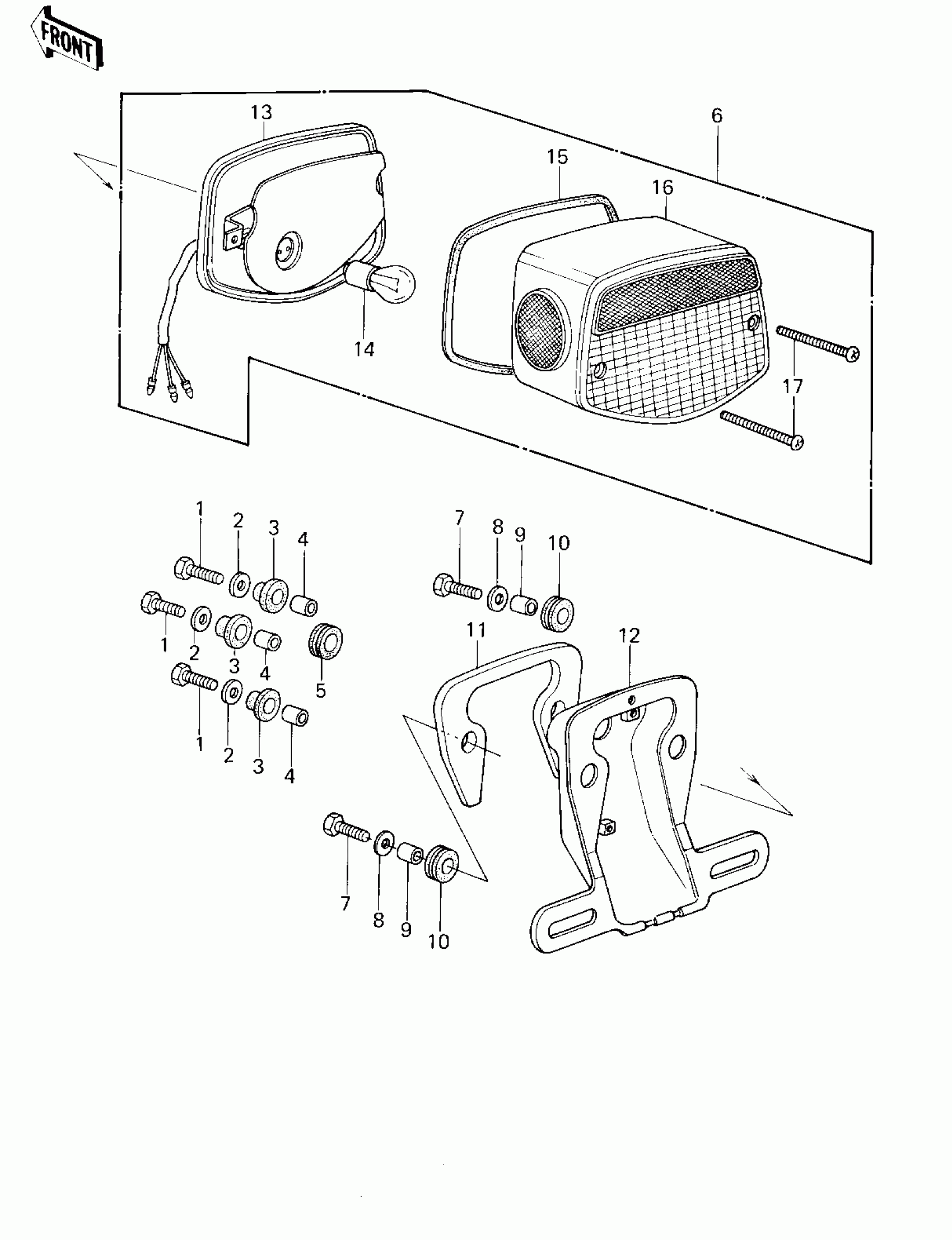

Kawasaki Z1R TAILLIGHT ('78 D1) Diagram

#

Description
Price

1

BOLT-UPSET,6X20

112G0620

Unavailable

2

WASHER,6.5X20X1.6

92022-125

$1.08

3

DAMPER RUBBER

92075-112

$3.43

4

COLLAR 6.8X10X10.5

92027-120

$3.81

5

GROMMET,10MM

92071-019

$2.97

6

LAMP-TAIL,"220-40781"MARK

23025-064

Unavailable

7

BOLT 6X22

112B0622

Unavailable

8

WASHER,6.5X20X1.6

92022-125

$1.08

9

COLLAR,6.8X10X8.5

92027-129

$3.81

10

DAMPER

23066-020

$14.19

11

DAMPER RUBBER

23066-019

$12.81

12

BRACKET,LICENSE PLATE

23036-045

$103.69

13

BODY-COMP-TAIL LAMP

23027-041

$130.76

14

BULB,12V 27/8W

92069-059

$6.19

15

GASKET,TAIL LAMP LENS

23028-021

$11.83

16

LENS,TAIL LAMP

23026-034

$78.61

17

SCREW-PAN-CROS

220R0460

Unavailable
