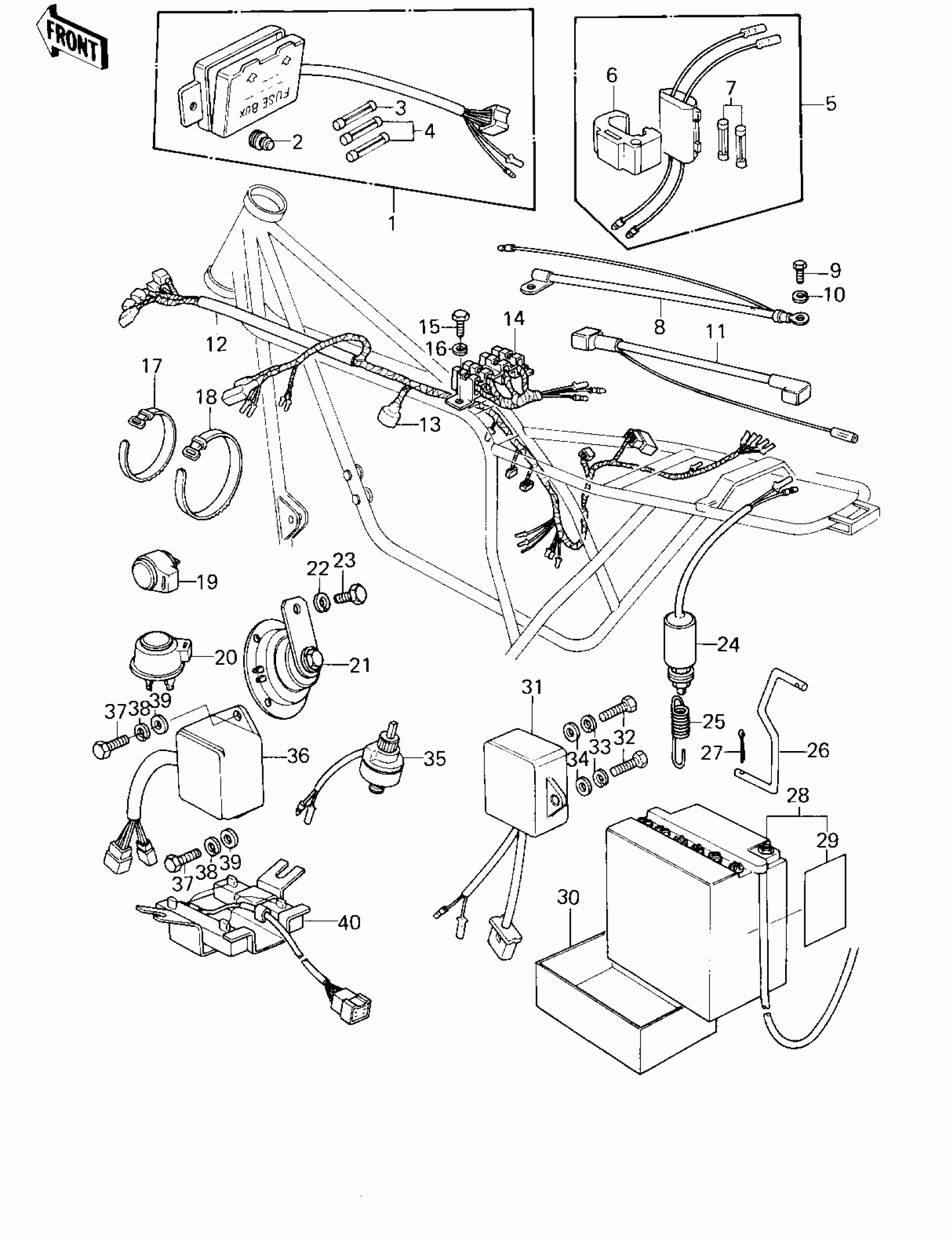

Kawasaki Z1R CHASSIS ELECTRICAL EQUIPMENT ('78 D1) Diagram

#

Description
Price

1

FUSE ASSY

26004-1002

$103.17

2

DAMPER,FUSE

92075-279

Unavailable

3

FUSE,20A,L=25

26006-005

$3.86

4

FUSE,10A,L=25

26006-003

$3.59

5

FUSE ASSY

26004-1003

Unavailable

6

DAMPER RUBBER

92075-1044

Unavailable

7

FUSE,2A,L=30

26006-1001

Unavailable

8

WIRE,BATTERY GROUND

26010-054

Unavailable

9

BOLT,6X10

92001-137

$5.66

10

WASHER SPRING 6MM

461F0600

Unavailable

11

WIRE,STARTER LEAD

26011-1018

Unavailable

12

WIRING HARNESS,MAIN

26001-1038

$333.16

13

COVER WIRING HARNESS

26009-003

Unavailable

14

WIRING HARNESS,CENTE

26001-1039

$110.59

15

BOLT-UPSET,6X12

112G0612

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

BAND,L=123

92072-030

$3.81

18

BAND,L=186

92072-056

$3.81

19

RELAY-ASSY,TURN SIGNAL

27002-011

$103.40

20

RELAY,TURN SIGNAL

27002-016

Unavailable

21

HORN

27003-1006

Unavailable

22

WASHER SPRING 8MM

461F0800

Unavailable

23

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

24

SWITCH-BRAKE LAMP

27010-017

Unavailable

25

SPRING BRAKE LAMP SW

27011-009

Unavailable

26

HOOK,BRK LAMP SW SPR

27012-010

Unavailable

27

PIN COTTER 1.6X10

550D1610

Unavailable

28

YUA BAT YB14L-A2

26012-1008

$84.21

29

LABEL-WARNING,BATTERY

56040-1036

Unavailable

30

CASE,BATTERY

32099-015

Unavailable

31

SWITCH,TURN SIGNAL OP

27010-1016

Unavailable

32

BOLT-UPSET,6X20

112G0620

Unavailable

33

WASHER SPRING 6MM

461F0600

Unavailable

34

WASHER PLAIN 6MM

411B0600

Unavailable

35

SWITCH,COMBINATION

27010-1017

Unavailable

36

SWITCH,RESERVE LAMP

27010-1007

$157.62

37

BOLT-UPSET,6X16

112G0616

Unavailable

38

WASHER SPRING 6MM

461F0600

Unavailable

39

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

40

RESISTOR

28018-1005

Unavailable
